5962-8750201EA

Description
LINE RECEIVER, CDIP16, CERDIP-16
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size102KB,4 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

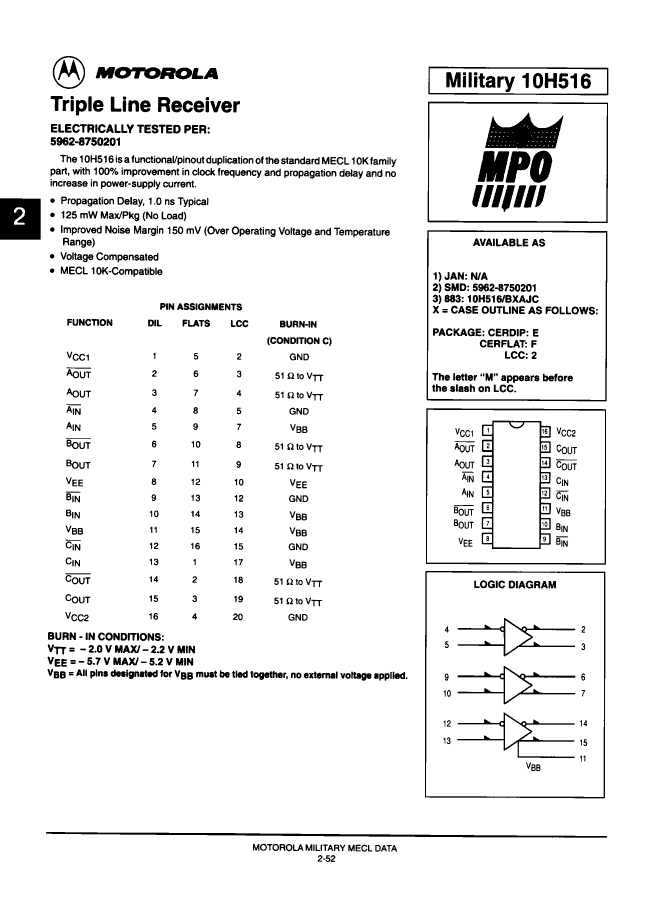

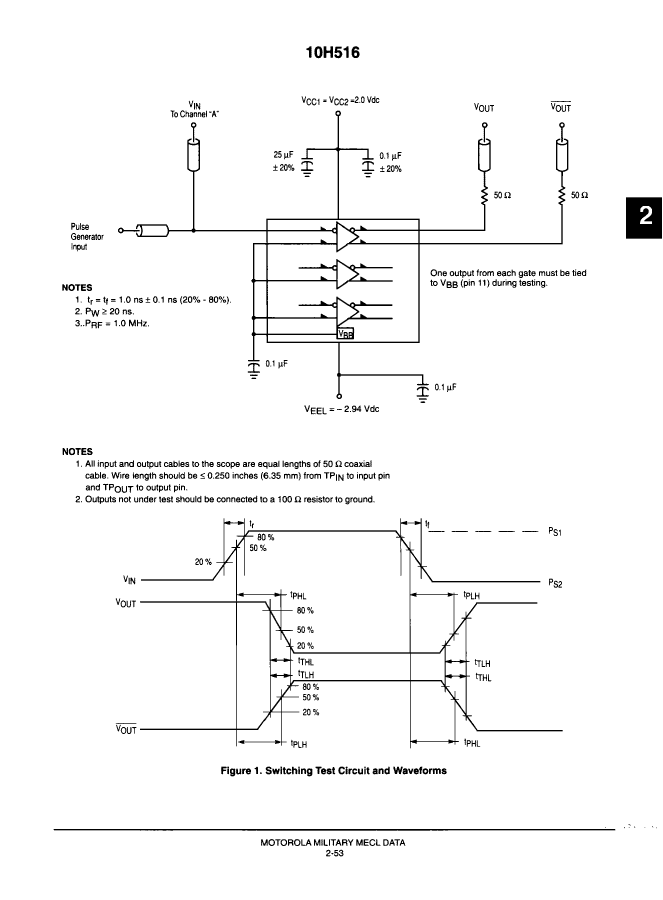

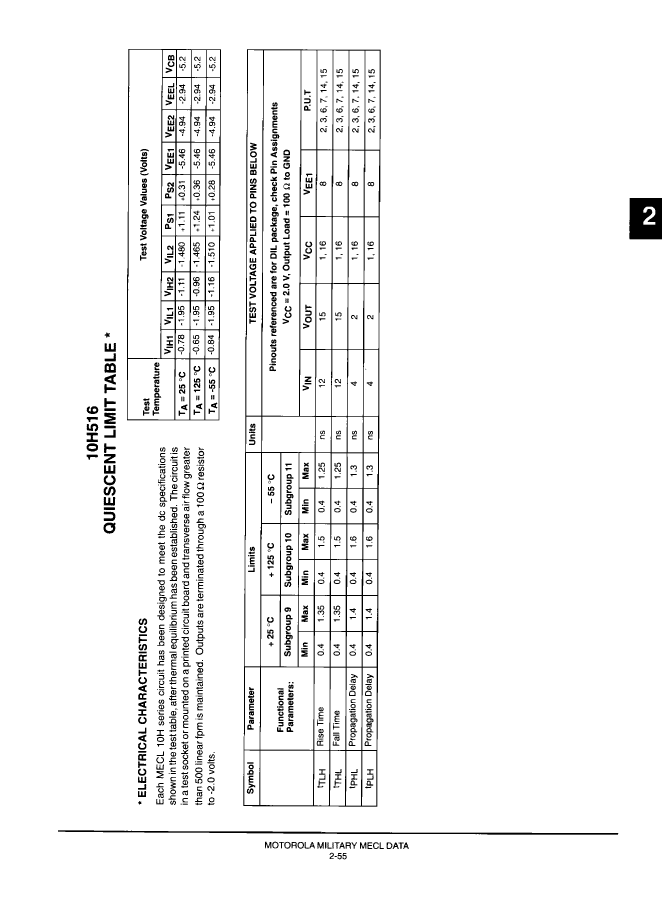

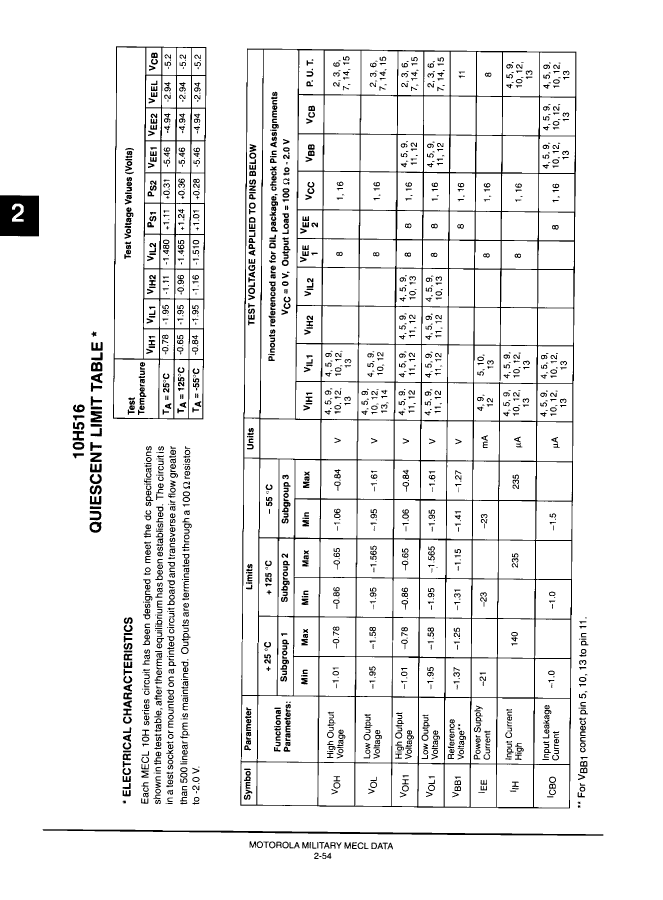

5962-8750201EA Overview

LINE RECEIVER, CDIP16, CERDIP-16

5962-8750201EA Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
package instructionDIP, DIP16,.3
Reach Compliance Codeunknown
ECCN codeEAR99
Differential outputYES
Input propertiesDIFFERENTIAL
Interface integrated circuit typeLINE RECEIVER
Interface standardsGENERAL PURPOSE
JESD-30 codeR-GDIP-T16
JESD-609 codee0
length19.495 mm
Nominal negative supply voltage-5.2 V
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristicsOPEN-EMITTER
Output polarityCOMPLEMENTARY
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply-5.2 V
Certification statusNot Qualified
Maximum receive delay1.6 ns
Number of receiver bits3
Filter level38535Q/M;38534H;883B
Maximum seat height5.08 mm
Maximum slew rate23 mA
surface mountNO
technologyECL10K
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
width7.62 mm
Base Number Matches1

5962-8750201EA Related Products

5962-8750201EA GRM0222C1H6R7BA03 10H516/BFAJC 5962-87502012A 5962-8750201FA
Description LINE RECEIVER, CDIP16, CERDIP-16 Chip Multilayer Ceramic Capacitors for General Purpose LINE RECEIVER, CDFP16, CERAMIC, FP-16 LINE RECEIVER, CQCC20, CERAMIC, LCC-20 LINE RECEIVER, CDFP16, CERAMIC, FP-16
Is it Rohs certified? incompatible - - incompatible incompatible
Maker Motorola ( NXP ) - - Motorola ( NXP ) Motorola ( NXP )
package instruction DIP, DIP16,.3 - DFP, FL16,.3 QCCN, LCC20,.35SQ DFP, FL16,.3
Reach Compliance Code unknown - unknown unknown unknown
ECCN code EAR99 - EAR99 EAR99 EAR99
Differential output YES - YES YES YES
Input properties DIFFERENTIAL - DIFFERENTIAL DIFFERENTIAL DIFFERENTIAL
Interface integrated circuit type LINE RECEIVER - LINE RECEIVER LINE RECEIVER LINE RECEIVER
Interface standards GENERAL PURPOSE - GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
JESD-30 code R-GDIP-T16 - R-GDFP-F16 S-CQCC-N20 R-GDFP-F16
JESD-609 code e0 - e0 e0 e0
length 19.495 mm - 9.65 mm 8.89 mm 9.65 mm
Nominal negative supply voltage -5.2 V - -5.2 V -5.2 V -5.2 V
Number of functions 1 - 1 1 1
Number of terminals 16 - 16 20 16
Maximum operating temperature 125 °C - 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C - -55 °C -55 °C -55 °C
Output characteristics OPEN-EMITTER - OPEN-EMITTER OPEN-EMITTER OPEN-EMITTER
Output polarity COMPLEMENTARY - COMPLEMENTARY COMPLEMENTARY COMPLEMENTARY
Package body material CERAMIC, GLASS-SEALED - CERAMIC, GLASS-SEALED CERAMIC, METAL-SEALED COFIRED CERAMIC, GLASS-SEALED
encapsulated code DIP - DFP QCCN DFP
Encapsulate equivalent code DIP16,.3 - FL16,.3 LCC20,.35SQ FL16,.3
Package shape RECTANGULAR - RECTANGULAR SQUARE RECTANGULAR
Package form IN-LINE - FLATPACK CHIP CARRIER FLATPACK
power supply -5.2 V - -5.2 V -5.2 V -5.2 V
Certification status Not Qualified - Not Qualified Not Qualified Not Qualified
Maximum receive delay 1.6 ns - 1.6 ns 1.6 ns 1.6 ns
Number of receiver bits 3 - 3 3 3
Filter level 38535Q/M;38534H;883B - 38535Q/M;38534H;883B 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Maximum seat height 5.08 mm - 2.15 mm 1.9 mm 2.15 mm
Maximum slew rate 23 mA - 23 mA 23 mA 23 mA
surface mount NO - YES YES YES
technology ECL10K - ECL ECL10K ECL10K
Temperature level MILITARY - MILITARY MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE - FLAT NO LEAD FLAT
Terminal pitch 2.54 mm - 1.27 mm 1.27 mm 1.27 mm
Terminal location DUAL - DUAL QUAD DUAL
width 7.62 mm - 6.415 mm 8.89 mm 6.415 mm
Base Number Matches 1 - 1 1 1
