2021-AS6P-506-0200 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 2021-AS6P-506-0200

2021-AS6P-506-0200: DescriptionBoard Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size74KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

2021-AS6P-506-0200 Overview

Board Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT

2021-AS6P-506-0200 Parametric

Parameter Name	Attribute value
Objectid	1779353089
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
YTEOL	8.6
Other features	STANDARD: IEC1076-4-104
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	MATTE TIN (79) OVER NICKEL (100)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	2021-AS6P
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	30
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

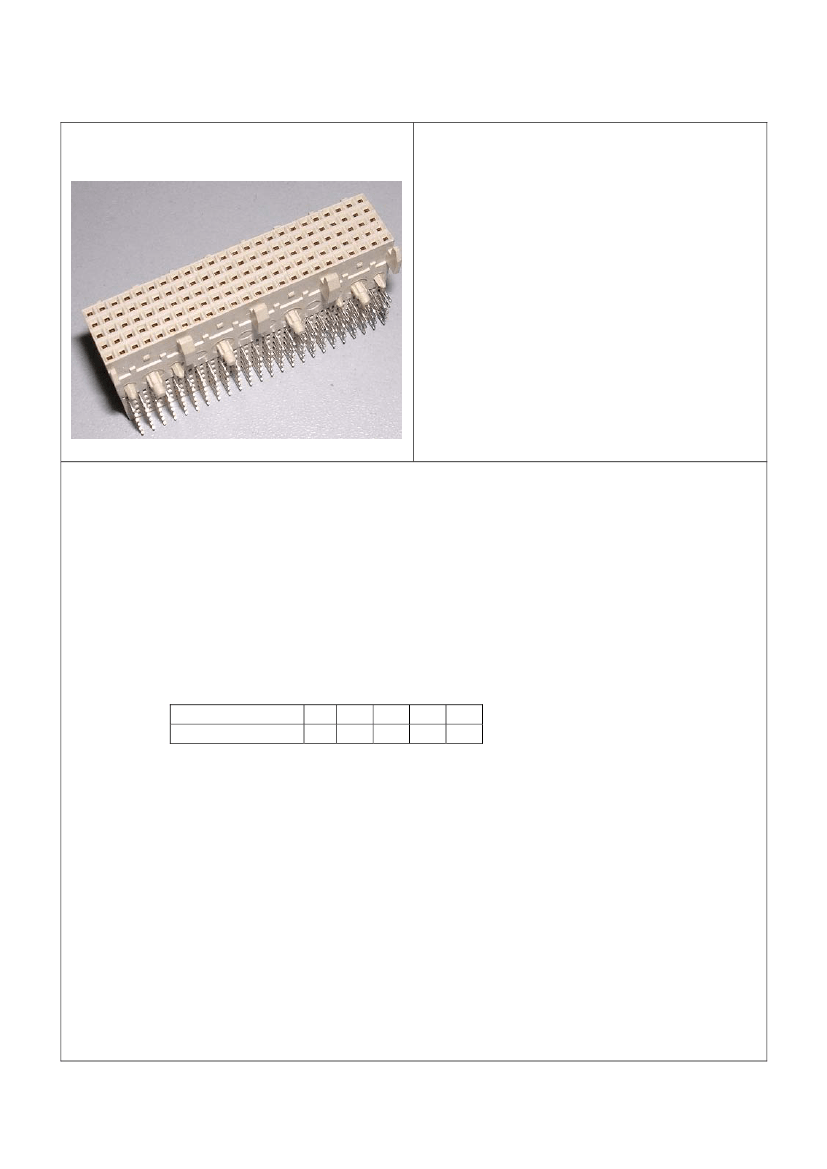

2mm FB

Amphenol

Part Number: 2021-AS6P-5XX-0X00

5 row Signal Female Right-Angle

Press- fit

- In accordance to IEC 1076-4-104

- 5 Rows and 2mm pitch permit high

signal density

- Modular design guarantees flexibility

- Compliant press-fit section with “eye

of needle” provides an optimum pin

stability and a gastight

- Parallel board applications

- Large hole tolerance 0.65-0.80mm

- RoHS compliant

1. Material:

A. Housing: Glass-filled LCP UL94 V-0, natural color

B. Cover: Class-filled LCP UL94 V-0, natural color

C. Contact: Phosphor bronze

2. Plating:

Mating area: 0.76 um Min. Au

Press-fit area: 0.6-2.0 um pure matte Tin

Under layer: 1.27-2.54 um Ni

3. Electrical characteristics:

Contact resistance:

Row

A B

Milliohms Max. 30 40 45 50 55

Voltage rating: 100V AC

Current rating: 1A

Insulation Resistance: 1000 M ohms Min.

Withstanding voltage: 1000 V rms.

4. Mechanical characteristics:

Mating force: 0.45 N Max. per contact

Un-mating force: 0.15 N Min. per contact

Mechanical lifetime: 250 mating cycles Min.

5. Recommended hole diameter: 0.65-0.80mm

6. Packing

Type: Tray

Quantity per packing unit: See Tab. 1

2021-AS6P-506-0200 Related Products

	2021-AS6P-506-0200	2021-AS6P-524-0100	2021-AS6P-524-0200	2021-AS6P-506-0100	2021-AS6P-512-0100	2021-AS6P-512-0200
Description	Board Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT	Board Connector, 120 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT	Board Connector, 120 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT	Board Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT	Board Connector, 60 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT	Board Connector, 60 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: IEC1076-4-104	STANDARD: IEC1076-4-104	STANDARD: IEC1076-4-104	STANDARD: IEC1076-4-104	STANDARD: IEC1076-4-104	STANDARD: IEC1076-4-104
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30)
Contact completed and terminated	MATTE TIN (79) OVER NICKEL (100)	MATTE TIN (79) OVER NICKEL (100)	MATTE TIN (79) OVER NICKEL (100)	MATTE TIN (79) OVER NICKEL (100)	MATTE TIN (79) OVER NICKEL (100)	PURE MATTE TIN (79) OVER NICKEL (100)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	2021-AS6P	2021-AS6P	2021-AS6P	2021-AS6P	2021-AS6P	2021-AS6P
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	30	120	120	30	60	60
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Objectid	1779353089	1779353098	1779353101	1779353086	-	-
YTEOL	8.6	8.6	8.6	8.6	-	-
