2082-7550-18-30 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 2082-7550-18-30

2082-7550-18-30: DescriptionFixed Attenuator, 0MHz Min, 18000MHz Max; CategoryWireless rf/communication Radio frequency and microwave; File Size49KB，1 Pages; ManufacturerXMA Corp.

Download Datasheet Parametric View All

2082-7550-18-30 Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max

2082-7550-18-30 Parametric

Parameter Name	Attribute value
Objectid	1580895773
Reach Compliance Code	compliant
YTEOL	8.1
Nominal attenuation	30 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	46.99 dBm
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.45

Preview

Download Datasheet

View All

SMA Attenuator, 50 Watt

Specifications

Electrical:

•Freq.

Range:

•VSWR:

DC-6 GHz

6 – 12.4 GHz

12.4 – 18 GHz

•Attenuation

Accuracy:

DC-6 GHz

3, 6 dB

±0.75

10, 20 dB

±0.75

30 dB

±0.75

40 dB

±1.00

•Power

(Avg):

•Power

(Peak):

•Impedance:

•Operating

Temperature:

Mechanical:

•Finish:

Connectors

Conductors

Heat Sink

Rev: A0 010708DC

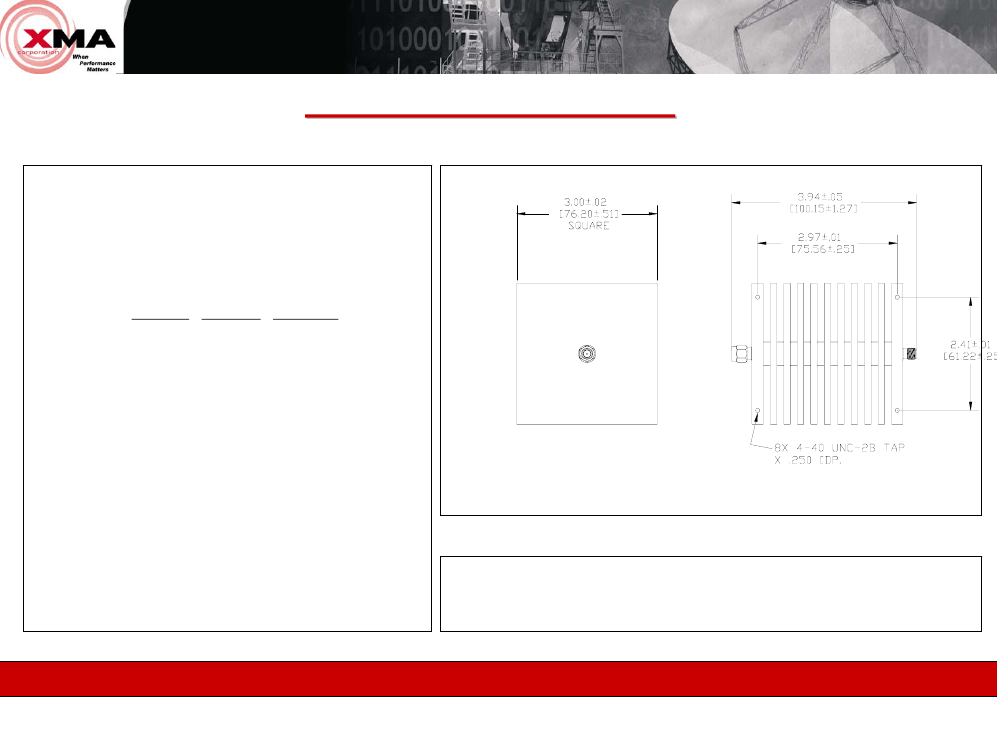

Outline Drawing

DC-6, 12.4, 18 GHz

1.25:1 Max

1.35:1 Max

1.45:1 Max

6-12.4 GHz

±0.75

±1.00

±1.25

12.4-18 GHz

±0.75

±1.00

±1.25

±1.50

dB Max

50 Watts

(Derated linearly to 10 Watt @ +125 ºC)

500 Watts

(5usec, 0.05% Duty Cycle)

50 Ohms

-65 ºC to +125 ºC

NOTE: Unit is unidirectional, the input connector will be marked accordingly

Passivated Stainless Steel

Gold Plated Beryllium Copper

Black Anodized Aluminum

Ordering Guide

Part Number Format: 2082-7550-FF-XX

(FF = 06 for 6 GHz; 12 for 12.4 GHz; 18 for 18 GHz)

(XX = 03,06,10,20,30,40 dB standard values)

Contact factory for other dB values or connector configurations

WHEN PERFORMANCE MATTERS

150 Dow Street Manchester, NH 03101

Tel: 603-222-2256

Fax: 603-222-2259

www.XMACORP.com
