2BNC10W-02 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 2BNC10W-02

2BNC10W-02: DescriptionFixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size40KB，1 Pages; ManufacturerCobham PLC; Environmental Compliance

Download Datasheet Parametric View All

2BNC10W-02 Overview

Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE

2BNC10W-02 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	BNC-F; BNC-M, I/P POWER-MAX(PEAK)=500W
Nominal attenuation	2 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	40 dBm
JESD-609 code	e4
Maximum operating frequency	2500 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

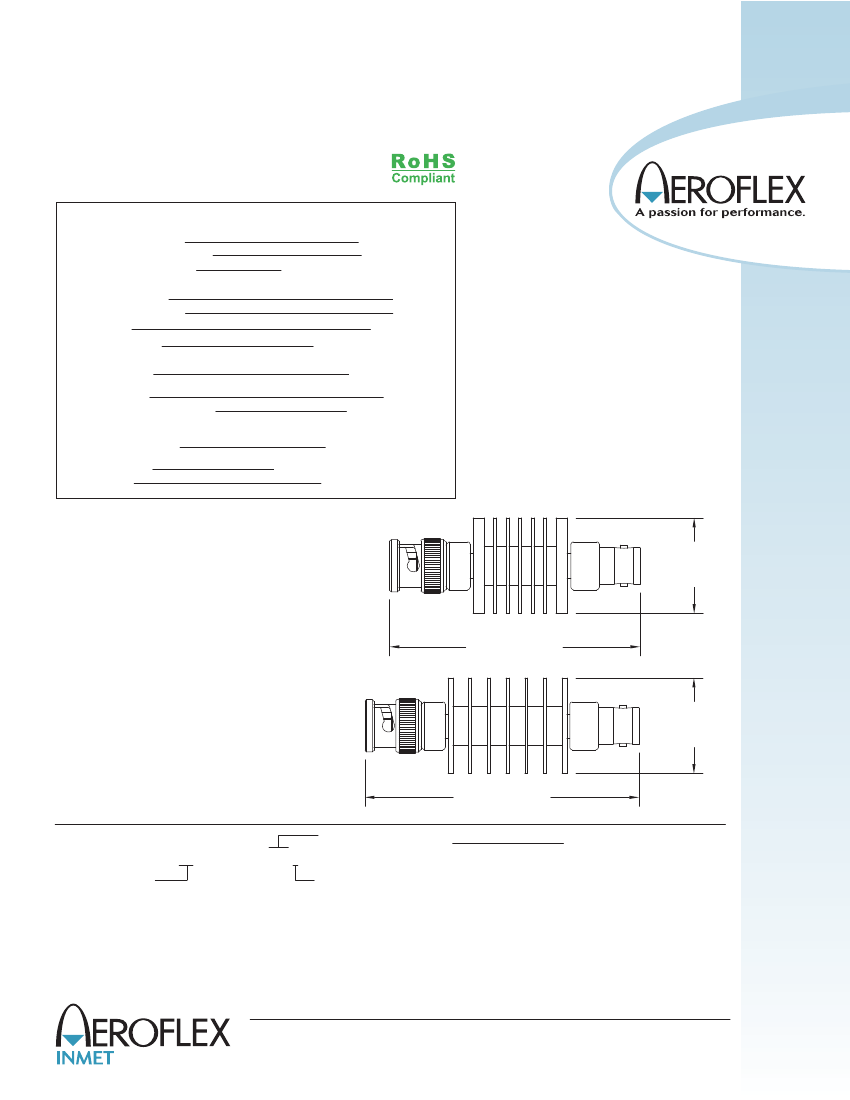

ATTENUATORS

BNC, 10 Watts, up to 4 GHz

SPECIFICATIONS:

Models: XBNC-10W-XX, XBNC-10W-XXF, XBNC-10W-XXM

Electrical:

Frequency Range

Standard Freq. Values

Standard dB Values

Attenuation Accuracy:

DC - 1 GHz

1 GHz - 4 GHz

VSWR

Input Power

Peak Power

Impedance

Operating Temp Range

DC - 4.0 GHz

2.5 & 4 GHz

0-10, 12, 15, 20, 30 & 40 dB

±0.7 dB

±1.0 dB

1.25:1 Max.

10 Watts Avg. @ 25°C

Derated Linearly to 2 Watts @ +125 C

500 Watts Max.

(5uSec Pulse, .05% Duty Cycle)

50 Ohms

-65°C to +125°C

Nickel Plated Brass

Gold Plated Beryllium Copper

Anodized Aluminum

Mechanical:

BNC Connectors

Mates with MIL-STD-348

Conductors

Housing

Model Number:

XBNC10W-XX

Male/Female Connectors

0-20 dB Length: 2.61 ±.07 [66.29 ±1.78]

30 & 40 dB Length: 2.86 ±.06 [72.64 ±1.52]

Pictured

- 20 dB

Ø1.00±.02

[25.40±0.51]

Model Number:

XBNC10W-XXF

Female/Female Connectors

0 - 20 dB Length: 2.49 ±.04 [63.25 ±1.02]

30 & 40 dB Length: 2.74 ±.03 [69.6 ±0.76]

2.61±.07

[66.29±1.78]

30 & 40 dB

Ø1.00±.02

[25.40±0.51]

Model Number:

XBNC10W-XXM

Male/Male Connectors

0 - 20 dB Length: 2.72 ±.09 [69.09 ±2.29]

30 & 40 dB Length: 2.97 ±.08 [75.44 ±2.03]

2.86±.06

[72.64±1.52]

HOW TO ORDER:

Model Number:

XBNC10W-XXY

Freq. Range

2 = DC - 2.5 GHz

4 = DC - 4 GHz

Ordering Examples:

Model Number:

2BNC10W-03

DC - 2.5 GHz; 3 dB; BNC - Male/Fem

Connector Configuration

= Male/Female

Model Number:

2BNC10W-10F

F = Fem/Fem

DC - 2.5 GHz; 10 dB; BNC - Fem/Fem

M = Male/Male

Model Number:

4BNC10W-30M

DC - 4 GHz; 30 dB; BNC - Male/Male

dB Value

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

XBNC10W-ATT: REV J

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • inmetsales@aeroflex.com
