2H172201-SA101 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2H172201-SA101

2H172201-SA101: DescriptionBoard Connector, 154 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

2H172201-SA101 Overview

Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Receptacle

2H172201-SA101 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.606 inch
subject depth	0.529 inch
body length	1.968 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Insulation resistance	10000000000 Ω
Insulator color	GRAY
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2H
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	7
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	154
Base Number Matches	1

2H172201-SA101 Preview

Download Datasheet

View All

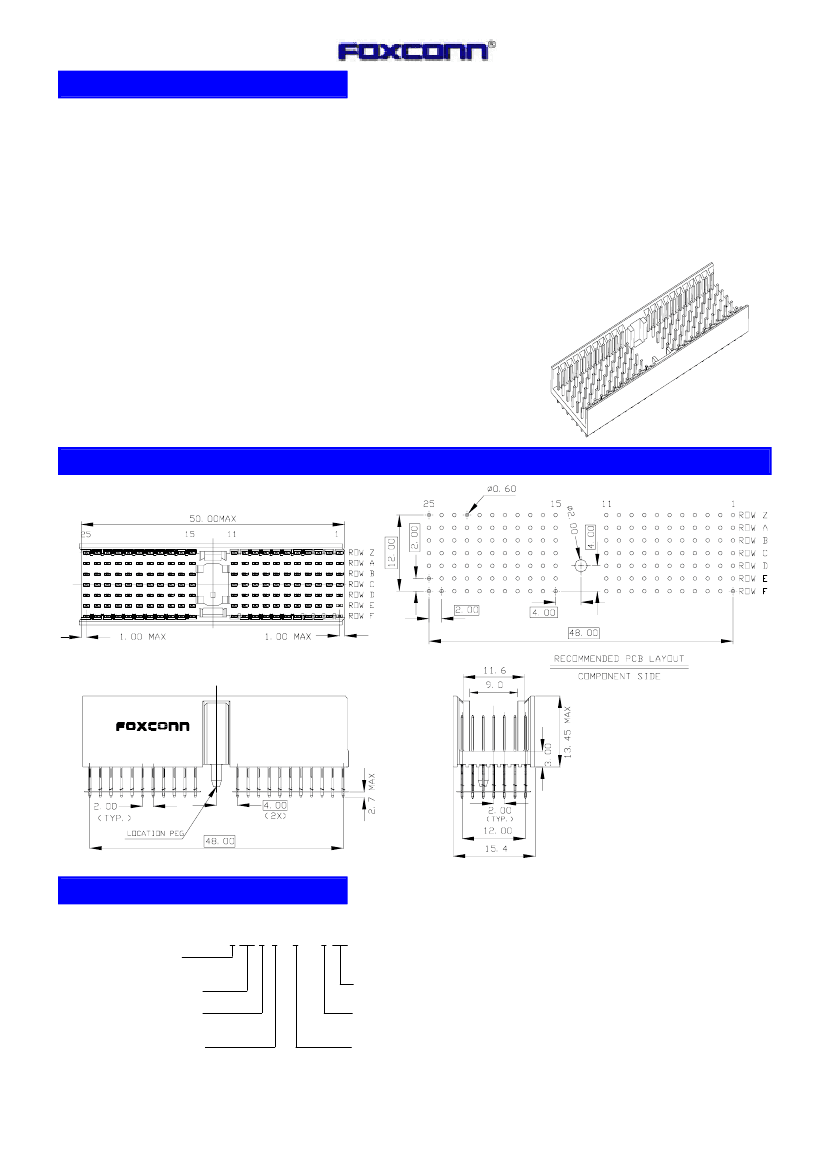

SPECIFICATIONS

Mechanical

Contact Retention Force:

0.5Kg min.

Electrical

HARD METRIC CONNECTOR

2H Seri es

Hard Metric Header Type A

Press Fit Type

2.0mm Pitch

5+2 Row

Electrical

Voltage Rating:

500V

Current Rating:

Contact Resistance:

20m

Ω

max.

Dielectrical Withstanding Voltage:

750V

Insulation Resistance:

10000MΩ min.

Physical

Housing:

PBT, UL 94-0, Gray

Contact:

Phosphor Bronze

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-55

°℃

to +125

℃

DRAWING

ORDERING I NF OR MATI ON

PRODUCT NO.: 2H1* * * * * - * A * * *

Row No.

5:5 Row

7:5+2Row

Column No.:

22:22 Column

Selective Pin Pattern

Option For Tail Length

and Hot Swap

Extension Code

N, S, E, F

Location Peg:

0:W/O Location Peg

1:W/ Location Peg

Plating Spec.

1:Gold Flash

3:30u" (0.76um) FPT Plating

5:50u" (1.27um) Au Plating

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
