MIL-DTL-38999 Series III Type Connectors
with PCB contacts
TVP02R box mounting receptacle
(with clinch nuts)

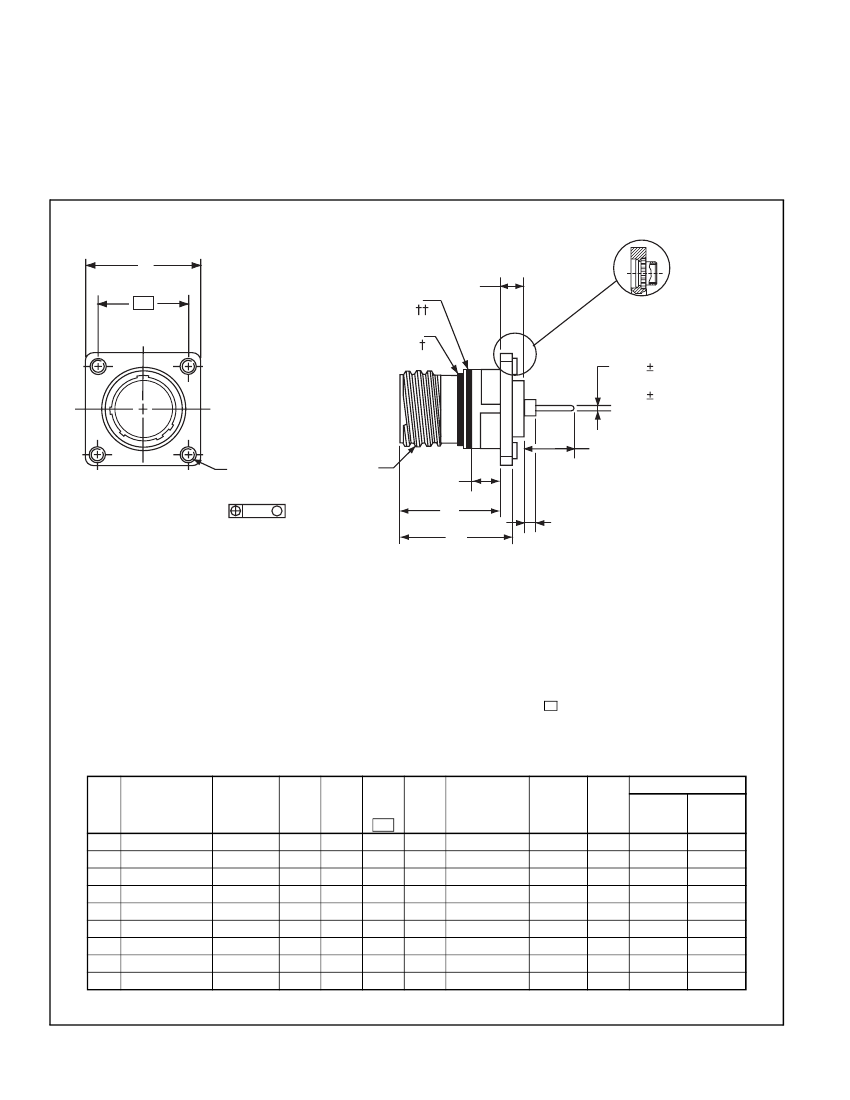

CONNECTOR WITH CLINCH NUTS
(4 PLACES)
S
2 PLACES
R
L
BLUE
BAND
RED
BAND
.062 .001 DIA.
FOR
SIZE
16 CONTACTS
.019 .001 DIA.
FOR
SIZES
20 &
22D CONTACTS
Z
PCB TAIL
STICKOUT
AA
M
LL
.162 – .072
FOR
SIZE
16 & 20 CONTACTS
.150 – .022
FOR
SIZE
22D CONTACTS
2 PLACES
T
THREAD
CLINCH NUT
.005
M
B
THREAD
HOW TO ORDER
• Order by applicable 88/91 part number in table below.
88 prefix designates olive drab cadmium plated connector shell.
91 prefix designates electroless nickel plated connector shell.
• Add insert arrangement to end of number. Refer to insert availability chart on page 4 and
pin-out illustrations on pages 5-24. Last letter of part number designates rotation; P for
pins in normal position, S for sockets in normal position. See page 25 for alternate rota-
tion letter to use.
Example part number: 88-628751-35P designates shell size 9 with a 9-35 insert and pin
contacts in normal position.
• Z dimension is determined by contact type in the insert arrangement.
• Most common options are shown; other options are available.
B Thread
Class 2A
(Plated)
0.1P-0.3L-TS
.6250
.7500
.8750
1.0000
1.1875
1.2500
1.3750
1.5000
1.6250
Composite Series III connectors are available;
consult Amphenol, Sidney, NY.
†
††
Designates true position dimensioning
Red band indicates fully mated
Blue band indicates rear release contact
retention system
Shell
Size
9
11
13
15
17
19
21
23
25
Part Number
with
Clinch Nuts
88/91-628751-XXX
752-XXX
753-XXX
754-XXX
755-XXX
756-XXX
757-XXX
758-XXX
759-XXX
L
Max.
.205
.205
.205
.205
.205
.205
.235
.235
.235
M
+.000
–.005
.820
.820
.820
.820
.820
.820
.790
.790
.790
R
.719
.812
.906
.969
1.062
1.156
1.250
1.375
1.500
S
Max.
1.031
1.125
1.172
1.281
1.375
1.469
1.562
1.750
1.875
T
Thread
.112-40UNC-3B
.112-40UNC-3B
.112-40UNC-3B
.112-40UNC-3B
.112-40UNC-3B
.112-40UNC-3B
.112-40UNC-3B
.138-32UNC-3B
.138-32UNC-3B
AA
Max.
Panel
Thickness
.234
.234
.234
.234
.234
.234
.204
.204
.204
Z
LL
+.006
–.000
.905
.905
.905
.905
.905
.905
.905
.905
.905
Size
16 & 20
Contacts
.460–.375
.460–.375
.460–.375
.460–.375
.460–.375
.460–.375
.460–.375
.460–.375
.460–.375
Size 22D
Contacts
.471–.399
.471–.399
.471–.399
.471–.399
.471–.399
.471–.399
.471–.399
.471–.399
.471–.399
All dimensions for reference only.
* Consult Amphenol for more information on ordering connectors with clinch nuts.
