210BL050003: DescriptionCombination Line Connector, 5 Contact(s), Male; CategoryThe connector The connector; File Size91KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

210BL050003 Overview

Combination Line Connector, 5 Contact(s), Male

210BL050003 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	210BL050003
Mixed contacts	NO
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

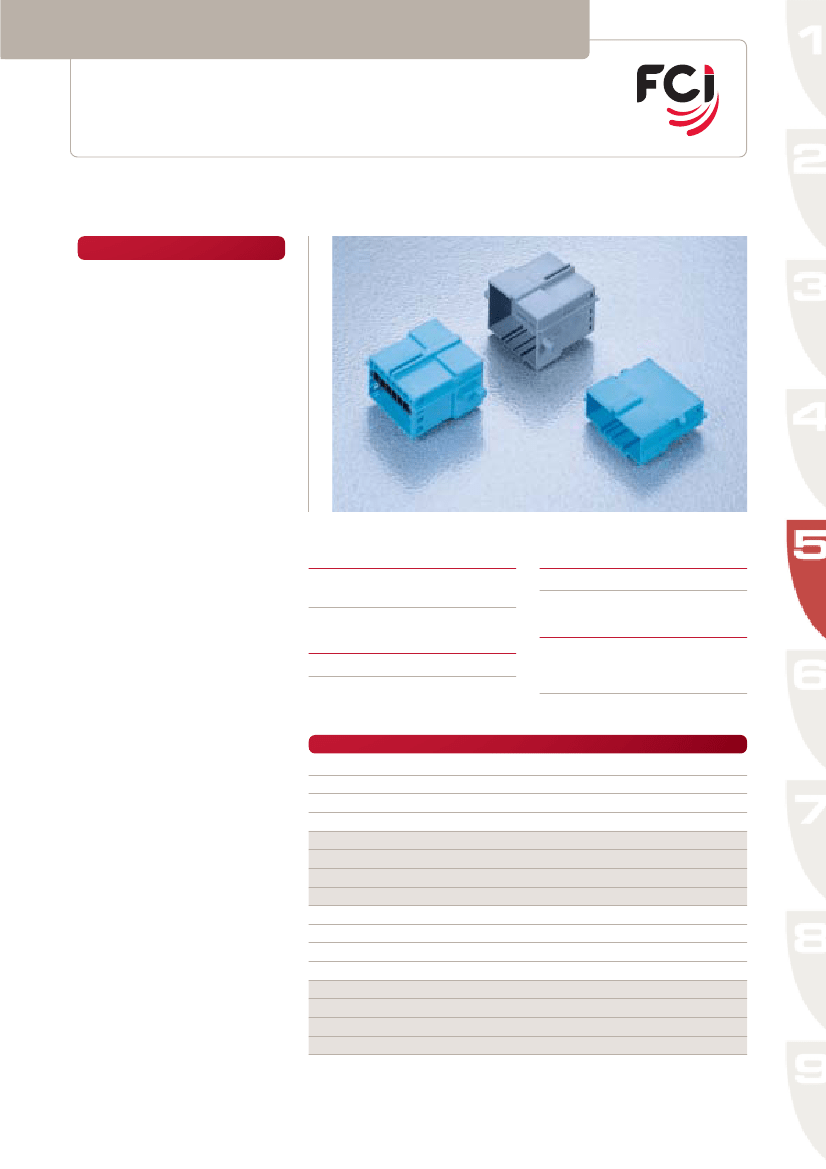

Harness Sectioning Connectors

Modular connectors

Sicma

12 to 45 way system: male module holders

Features

•

High density connector system

(5 mm pitch between modules)

•

12 to 45 positions depending on

type and number of modules

•

Accommodates 2-3-4 or 5

modules depending on version

•

Facilitates highly flexible wire

sectioning

•

Suitable for 9 positions (1.5 mm

terminals), 6 positions (2.8 mm

terminals), or mixed modules

•

A grid guides and protects the tabs

•

Low mating force with female

module holder

•

Several colour codings available

Performance characteristics

•

Temperature range:

from -40°C to +125°C

Tooling

•

Module removal tool:

210S011

Connector compatibility

Construction

•

Housing material:

PBT

•

Usable modules:

- Sicma 9 way male modules

- Sicma 6 way male modules

Part Numbers

210 BL029003

210 BL020003

210 BL028003

210 BL026003

210 BL039003

210 BL030003

210 BL038003

210 BL036003

210 BL049003

210 BL040003

210 BL048003

210 BL046003

210 BL059003

210 BL050003

210 BL058003

210 BL056003

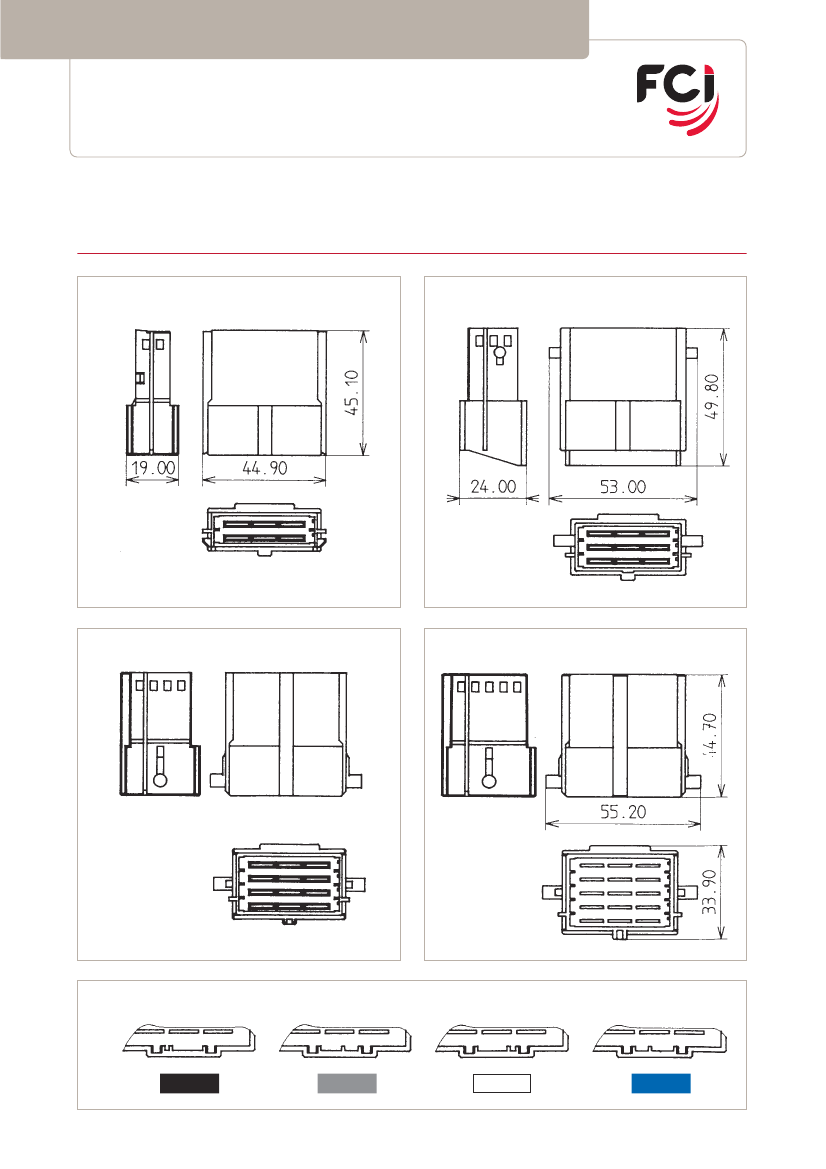

No. of Module Position

2

3

4

5

Colour

White

Black

Grey

Blue

White

Black

Grey

Blue

White

Black

Grey

Blue

White

Black

Grey

Blue

5.13
