MODULES
G Series
1.5
WATTS
SINGLE
OUTPUT
DC/DC
I N D U S T R I A L
Features
•
•
•
•
•
•
•
Low ripple
Miniature case size
Low EMI/RFI sinewave oscillator
Proportional input/output
User-selectable output polarity
Low cost/high performance
MTBF >2.29 million hrs per Bellcore TR-332
Specifications
INPUT
Voltage
Current
Typical turn-on voltage
OUTPUT
Power
Voltage
Current
Ripple
Regulation
Isolation
ENVIRONMENTAL
Operating temperature
GENERAL
Dimensions
Weight
Packaging
Case material
OPTIONS
Output center tap.
External mounting box.
Low power consumtion
Consult your local Powerbox office.
38.1 x 38.1 x 16 mm.
43g.
Fully encapsulated.
Glass-filled Epoxy.
–10°C to +60°C.
1.5W.
See table.
See table.
See table.
10% (no load to full load).
3,500V.
0 to 12VDC.
See table.
0.7V.
Selection Table
MODEL
NUMBER
INPUT
INPUT
OUTPUT
VOLTAGE
OUTPUT2
RIPPLE
CURRENT CURRENT
CURRENT
G01
G02
G03
G05
G06
G10
G12
G15
G20
G25
G30
G401
G501
G601
GPMT
<100mA
<100mA
<100mA
<100mA
<100mA
<100mA
<150mA
<125mA
<165mA
<125mA
<125mA
<125mA
<125mA
<125mA
<30mA
<250mA
<250mA
<250mA
<250mA
<250mA
<250mA
<275mA
<275mA
<275mA
<275mA
<300mA
<300mA
<300mA
<300mA
<75mA
0 to ±100V
0 to ±200V
0 to ±300V
0 to ±500V
0 to ±600V
0 to 15mA
0 to 5mA
0 to 3mA
0 to 2.5mA
<1.75%
<0.75%
<0.02%
<0.1%
<0.1%
<0.5%
<1.0%
<1.0%
<2.0%
0 to 7.5mA <0.75%
0 to ±1000V 0 to 1.5mA
0 to ±1500V
0 to1mA
0 to ±1200V 0 to 1.25mA <0.1%
0 to ±2000V 0 to 0.75mA <0.5%
0 to ±2500V 0 to 0.6mA
0 to ±3000V 0 to 0.5mA
0 to ±5000V 0 to 0.3mA
0 to ±4000V 0 to 0.37mA <1.0%
0 to ±6000V 0 to 0.25mA <2.0%
0 to ±1250V 0 to 350uA
<0.5%
Photomultiplier model
1. Models G40, G50 & G60 do no have internal bleeder resistors on the output.
Provisions must be made externally to discharge the output capacitors if this
feature is desired.

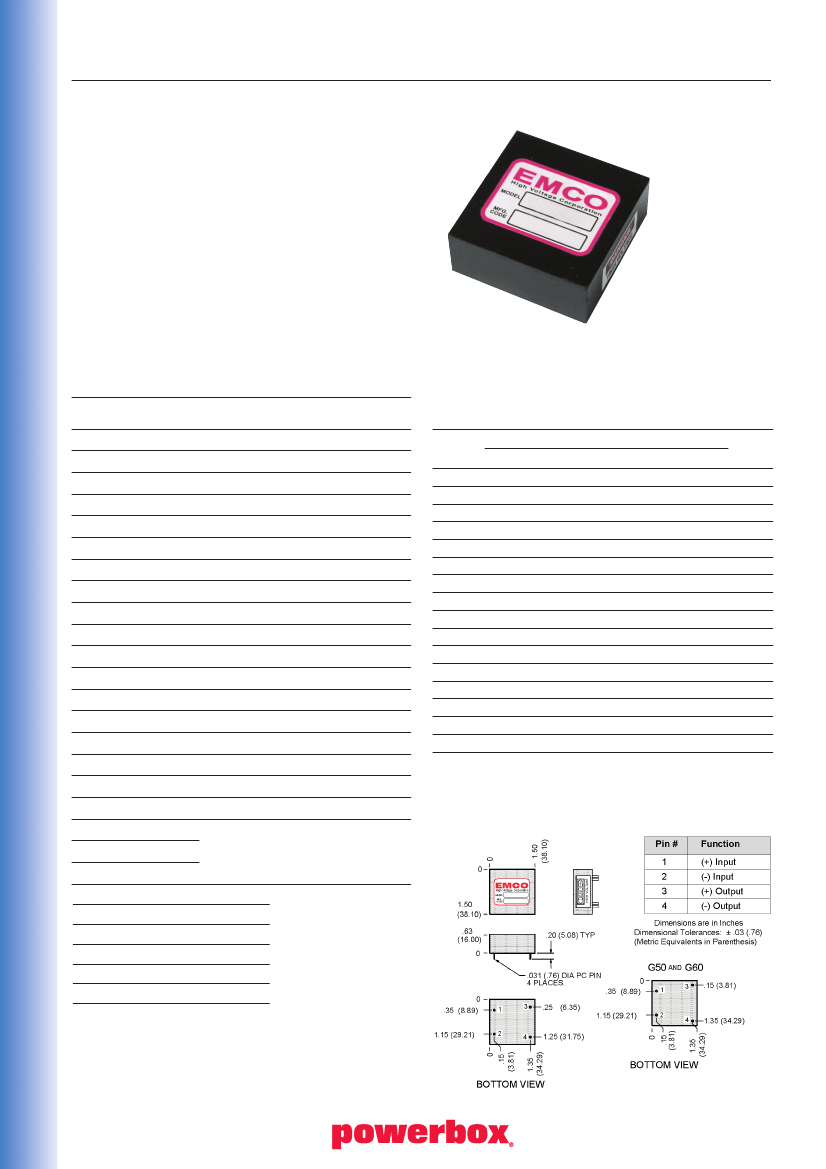

Technical Illustration
PIN#
1
2
3
4
FUNCTION
(+)Input
(–)Input
(+)Output
(–)Output
