54LS20M/B2AJC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 54LS20M/B2AJC

Preview

54LS20M/B2AJC: DescriptionLS SERIES, DUAL 4-INPUT NAND GATE, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size52KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS20M/B2AJC Overview

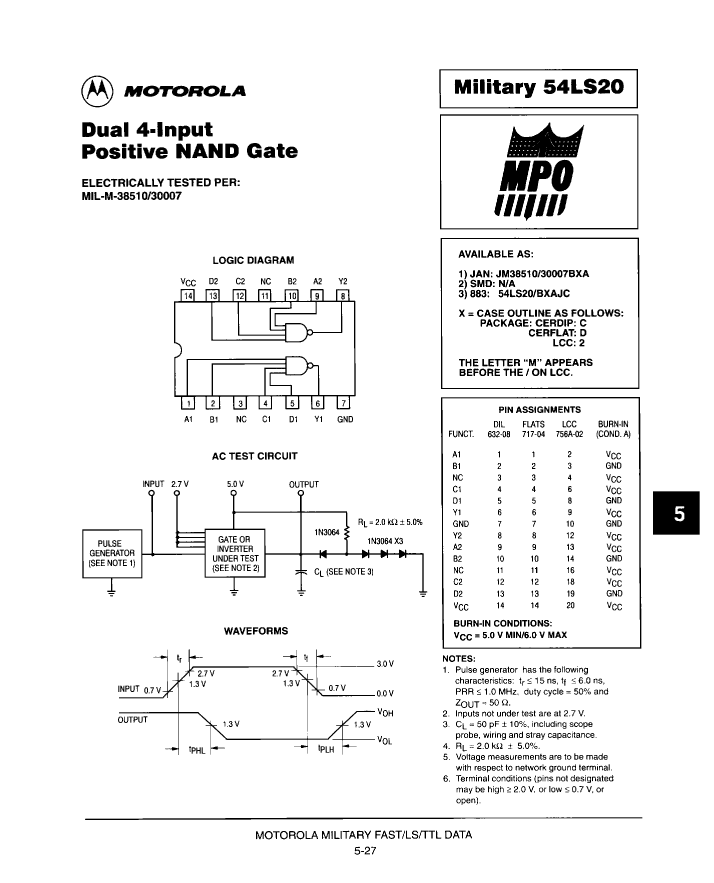

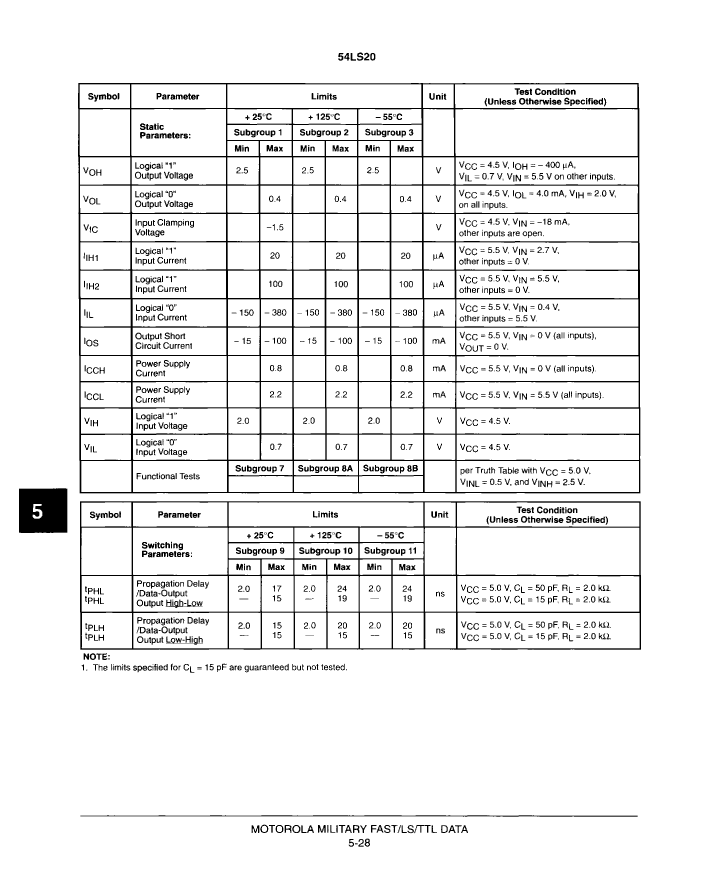

LS SERIES, DUAL 4-INPUT NAND GATE, CQCC20, CERAMIC, LCC-20

54LS20M/B2AJC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
series	LS
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.885 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.004 A
Number of functions	2
Number of entries	4
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	2.2 mA
Prop。Delay @ Nom-Sup	24 ns
propagation delay (tpd)	19 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.885 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54LS20M/B2AJC Related Products

	54LS20M/B2AJC	54LS20/BDAJC	54LS20/BCAJC
Description	LS SERIES, DUAL 4-INPUT NAND GATE, CQCC20, CERAMIC, LCC-20	LS SERIES, DUAL 4-INPUT NAND GATE, CDFP14, CERAMIC, FP-14	LS SERIES, DUAL 4-INPUT NAND GATE, CDIP14, CERDIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	QLCC	DFP	DIP
package instruction	QCCN, LCC20,.35SQ	DFP, FL14,.3	DIP,
Contacts	20	14	14
Reach Compliance Code	unknown	unknown	unknown
series	LS	LS	LS
JESD-30 code	S-CQCC-N20	R-GDFP-F14	R-GDIP-T14
JESD-609 code	e0	e0	e0
length	8.885 mm	9.65 mm	19.495 mm
Load capacitance (CL)	15 pF	15 pF	15 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE
Number of functions	2	2	2
Number of entries	4	4	4
Number of terminals	20	14	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DFP	DIP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (ICC)	2.2 mA	2.2 mA	2.2 mA
propagation delay (tpd)	19 ns	19 ns	19 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	2.15 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	8.885 mm	6.415 mm	7.62 mm
Base Number Matches	1	1	1
MaximumI(ol)	0.004 A	0.004 A	-
Encapsulate equivalent code	LCC20,.35SQ	FL14,.3	-
power supply	5 V	5 V	-
Prop。Delay @ Nom-Sup	24 ns	24 ns	-
Schmitt trigger	NO	NO	-
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
