Datasheet> All Categories > logic> logic> 54LS368A/BEAJC

Preview

54LS368A/BEAJC: DescriptionLS SERIES, 6-BIT DRIVER, INVERTED OUTPUT, CDIP16, CERDIP-16; Categorylogic logic; File Size93KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

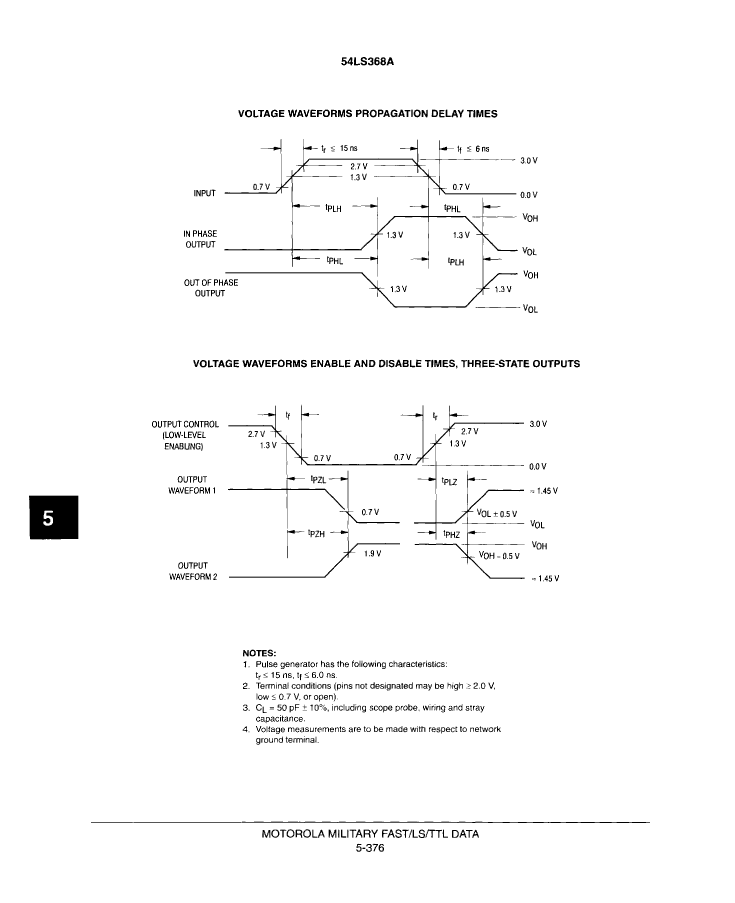

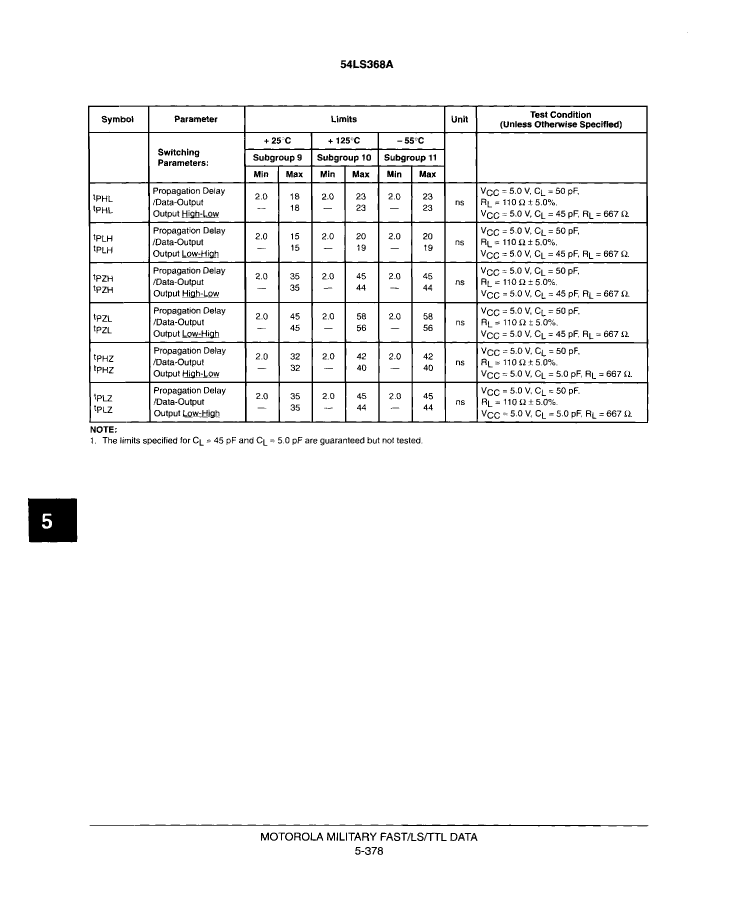

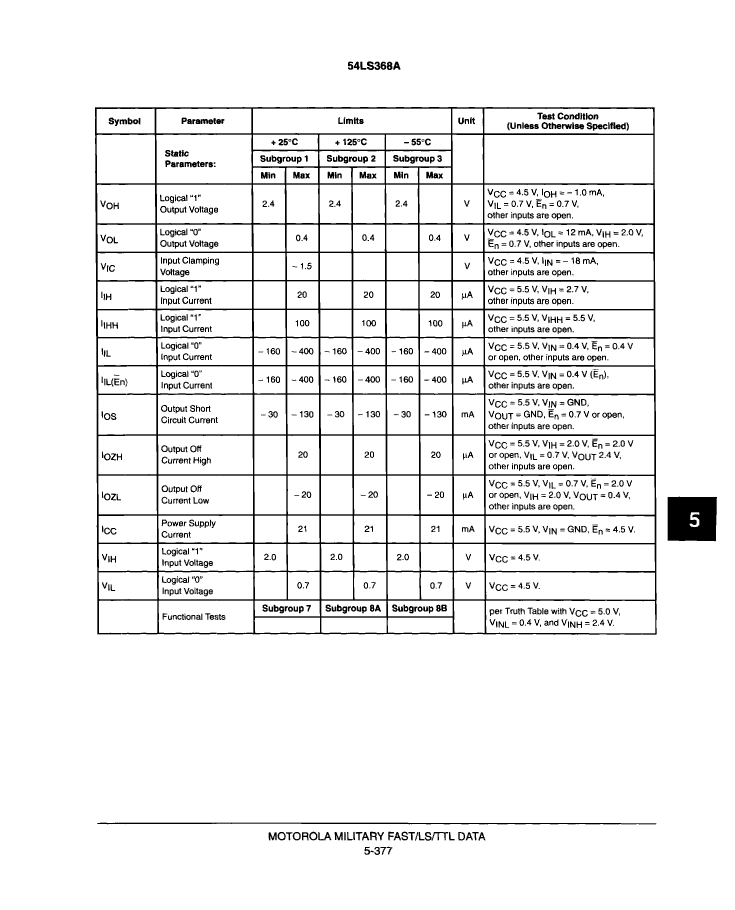

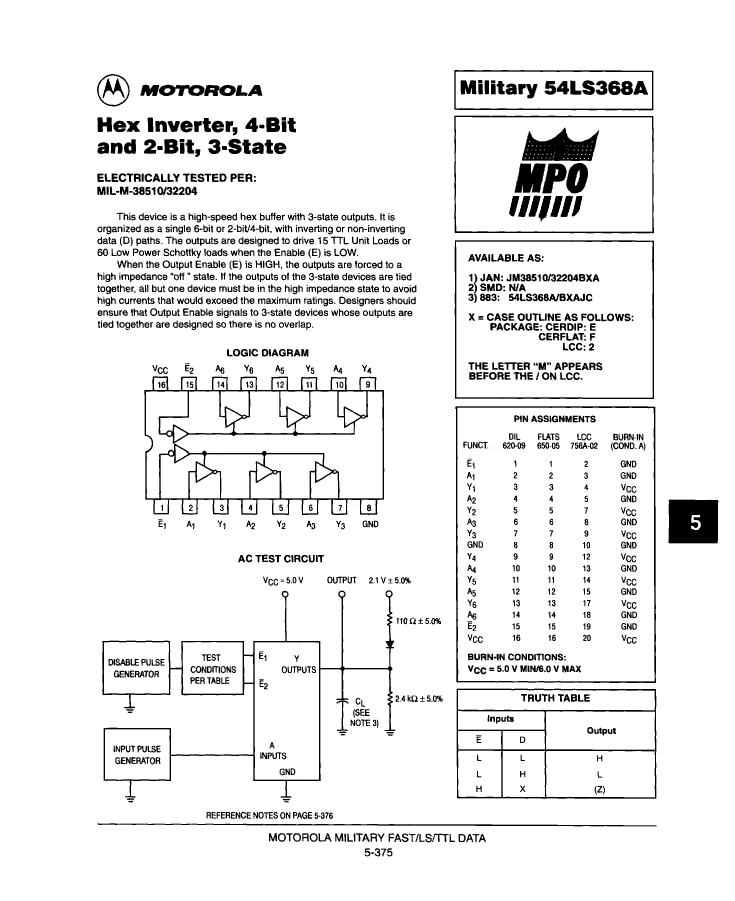

54LS368A/BEAJC Overview

LS SERIES, 6-BIT DRIVER, INVERTED OUTPUT, CDIP16, CERDIP-16

54LS368A/BEAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
Other features	ONE FUNCTION WITH TWO BITS
series	LS
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.3 mm
Load capacitance (CL)	45 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	23 ns
Certification status	Not Qualified
Maximum seat height	4.19 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54LS368A/BEAJC Related Products

	54LS368A/BEAJC	54LS368AM/B2AJC	54LS368A/BFAJC
Description	LS SERIES, 6-BIT DRIVER, INVERTED OUTPUT, CDIP16, CERDIP-16	LS SERIES, 6-BIT DRIVER, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20	Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, CDFP16, CERAMIC, FP-16
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP,	QCCN,	CERAMIC, FP-16
Reach Compliance Code	unknown	unknown	unknown
Other features	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS
series	LS	LS	LS
JESD-30 code	R-GDIP-T16	S-CQCC-N20	R-GDFP-F16
JESD-609 code	e0	e0	e0
length	19.3 mm	8.89 mm	9.65 mm
Load capacitance (CL)	45 pF	45 pF	45 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4
Number of functions	2	2	2
Number of ports	2	2	2
Number of terminals	16	20	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	QCCN	DFP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
propagation delay (tpd)	23 ns	23 ns	23 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.19 mm	1.9 mm	2.15 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	8.89 mm	6.415 mm
Base Number Matches	1	1	1
Parts packaging code	DIP	QLCC	-
Contacts	16	20	-
