54F579/BRA datasheet, PDF - EEWORLD Datasheet

54F579/BRA: DescriptionBinary Counter, Synchronous, Bidirectional, TTL, CDIP20,; Categorylogic logic; File Size391KB，7 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

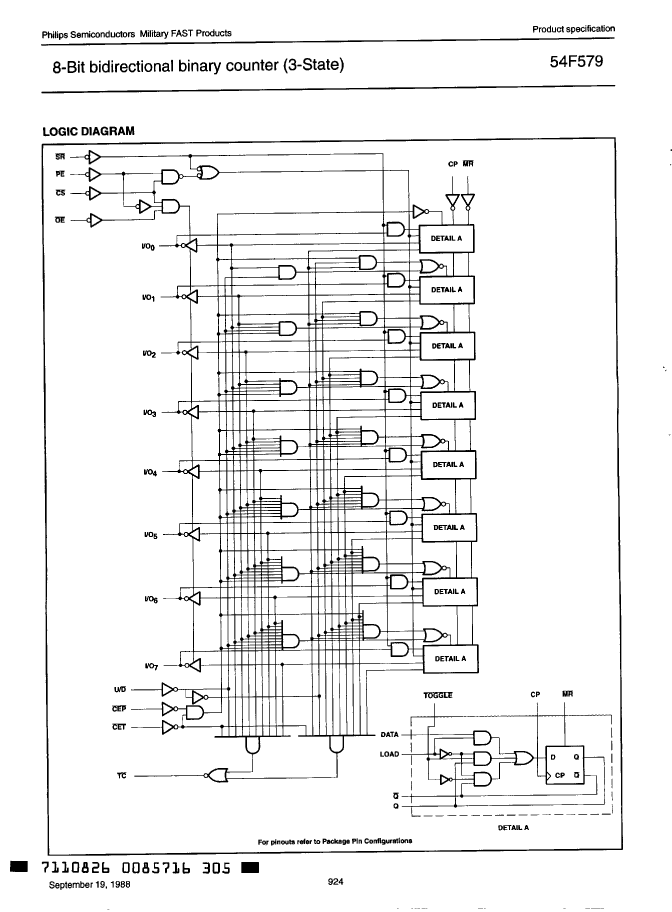

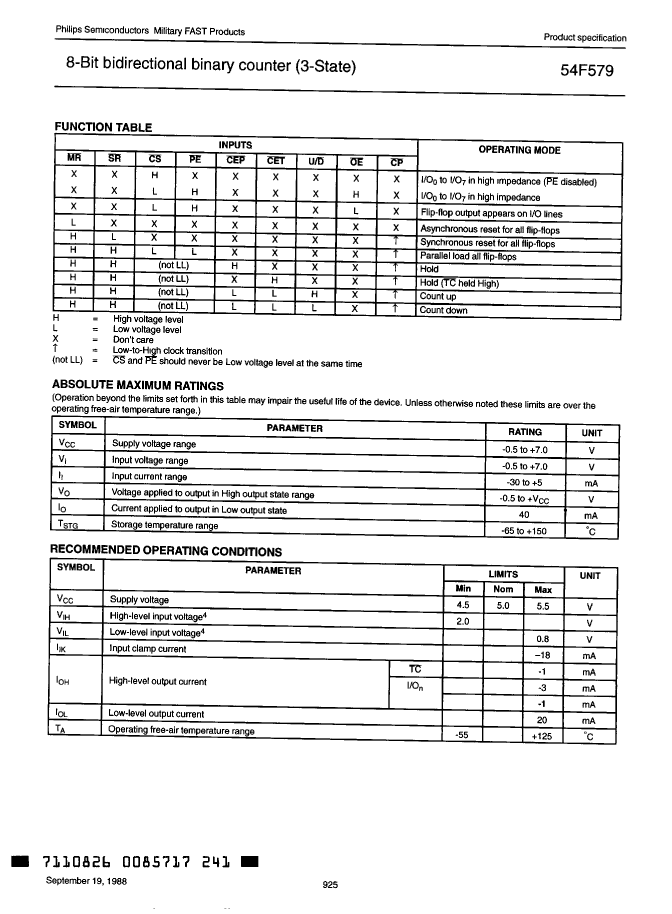

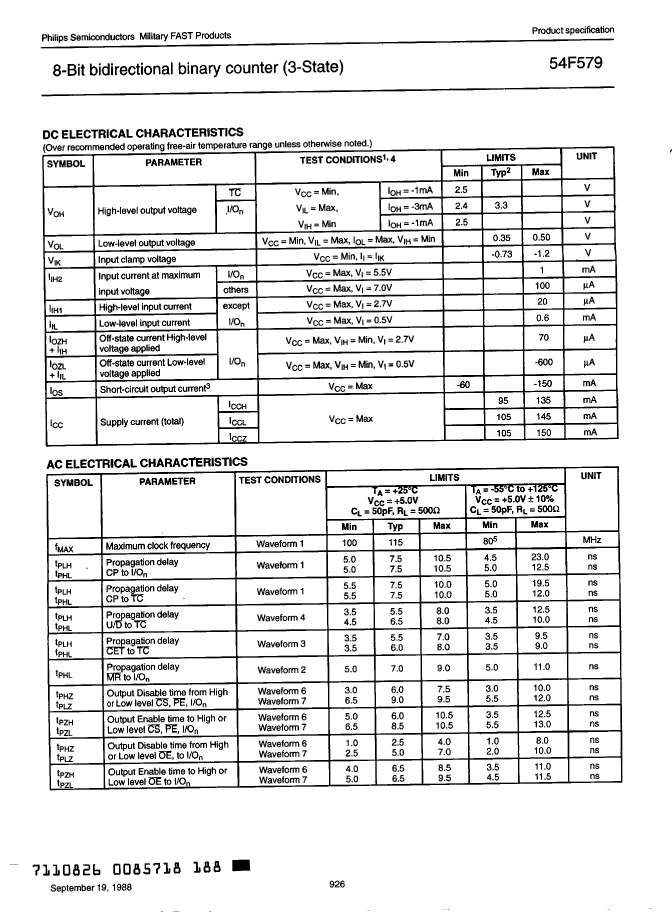

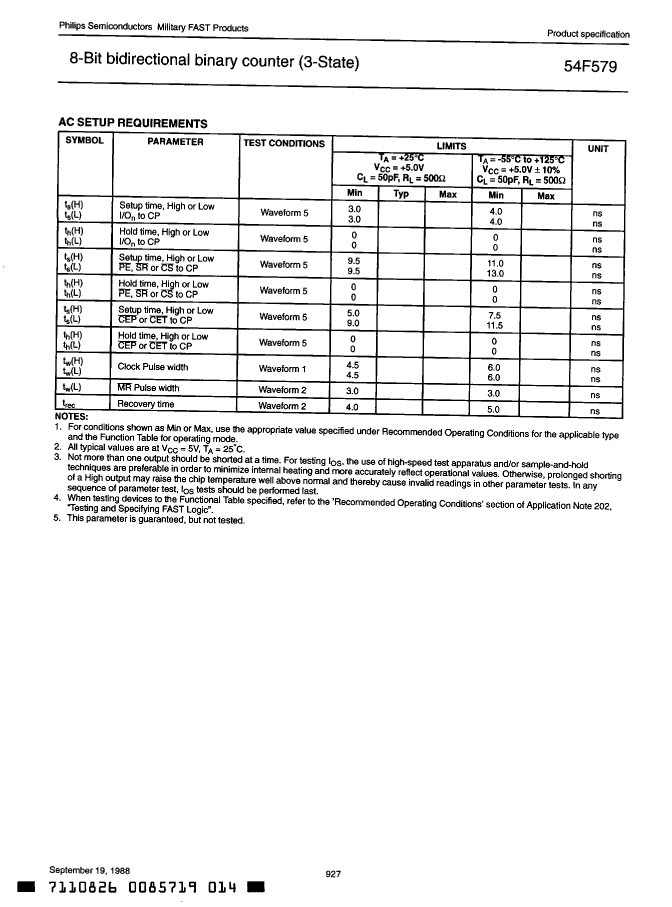

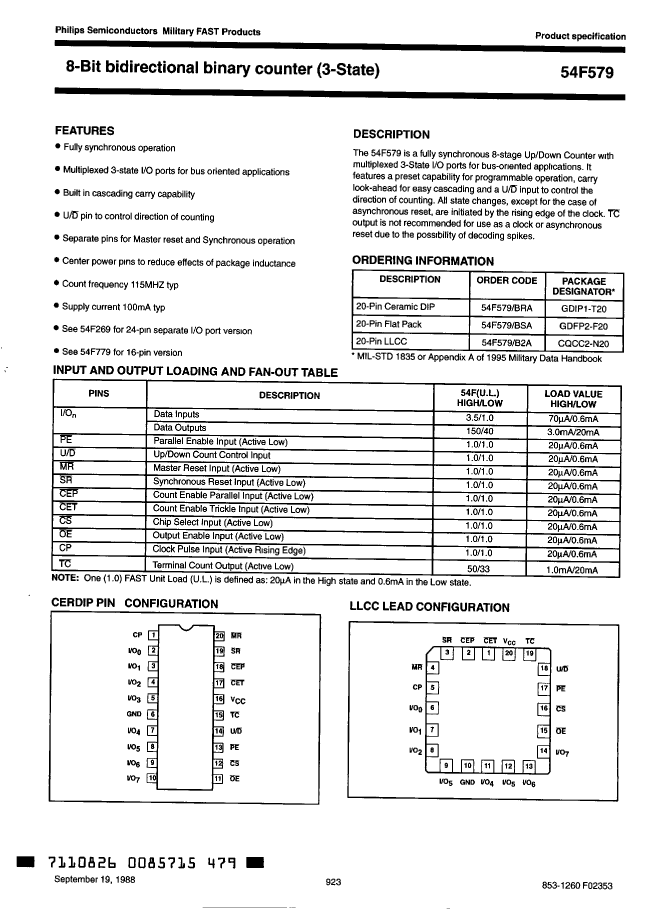

54F579/BRA Overview

Binary Counter, Synchronous, Bidirectional, TTL, CDIP20,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	54F579/BRA	54F579/B2A	54F579/BSA
Description	Binary Counter, Synchronous, Bidirectional, TTL, CDIP20,	Binary Counter, Synchronous, Bidirectional, TTL, CQCC20,	Binary Counter, Synchronous, Bidirectional, TTL, CDFP20,
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP20,.3	QCCN, LCC20,.35SQ	DFP, FL20,.3
Reach Compliance Code	unknown	unknown	unknown
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-XDIP-T20	S-XQCC-N20	R-XDFP-F20
JESD-609 code	e0	e0	e0
Load/preset input	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of functions	1	1	1
Number of terminals	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	QCCN	DFP
Encapsulate equivalent code	DIP20,.3	LCC20,.35SQ	FL20,.3
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL
Base Number Matches	1	1	1
