54F163A/BEA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F163A/BEA

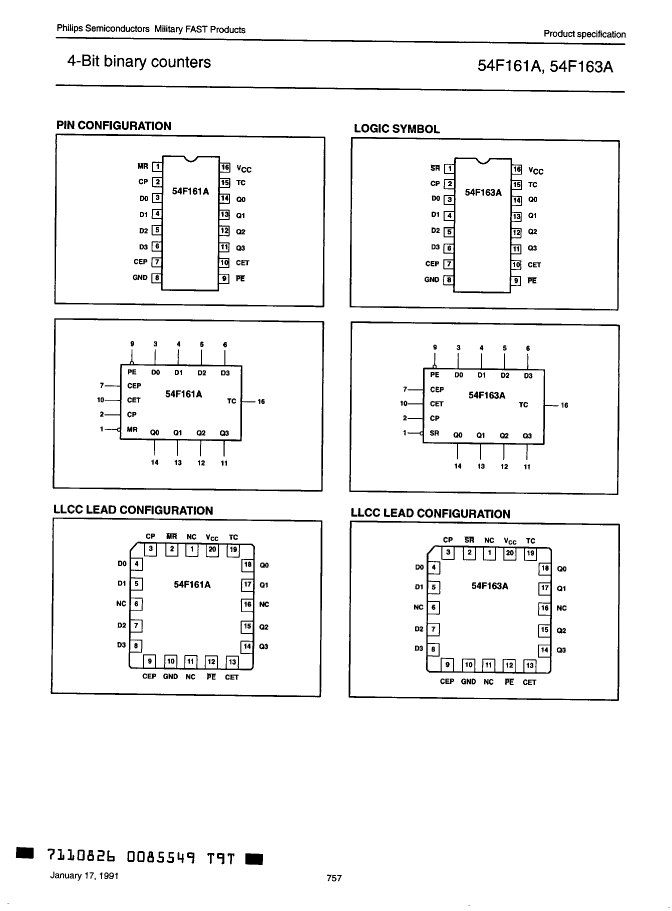

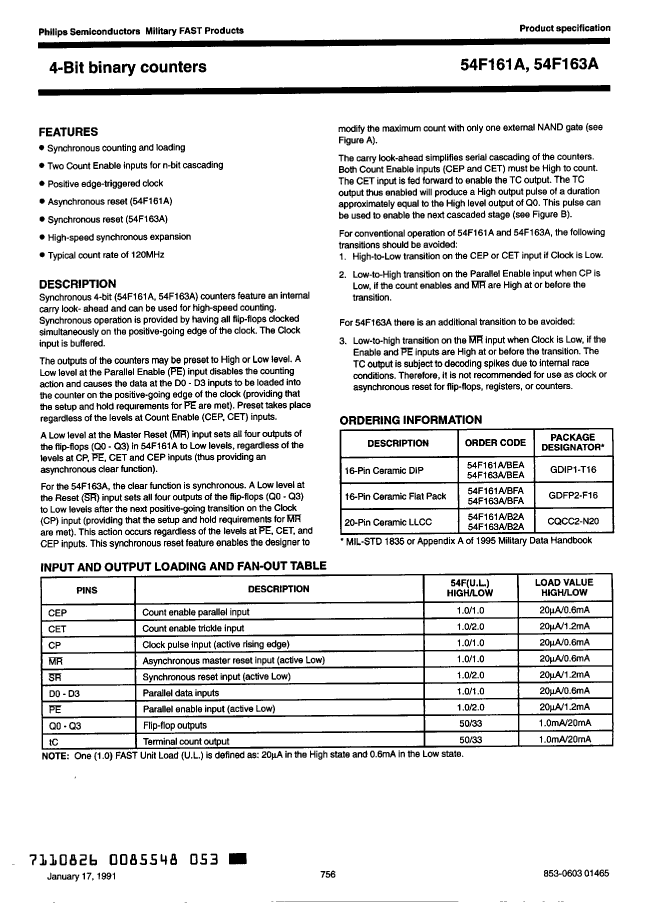

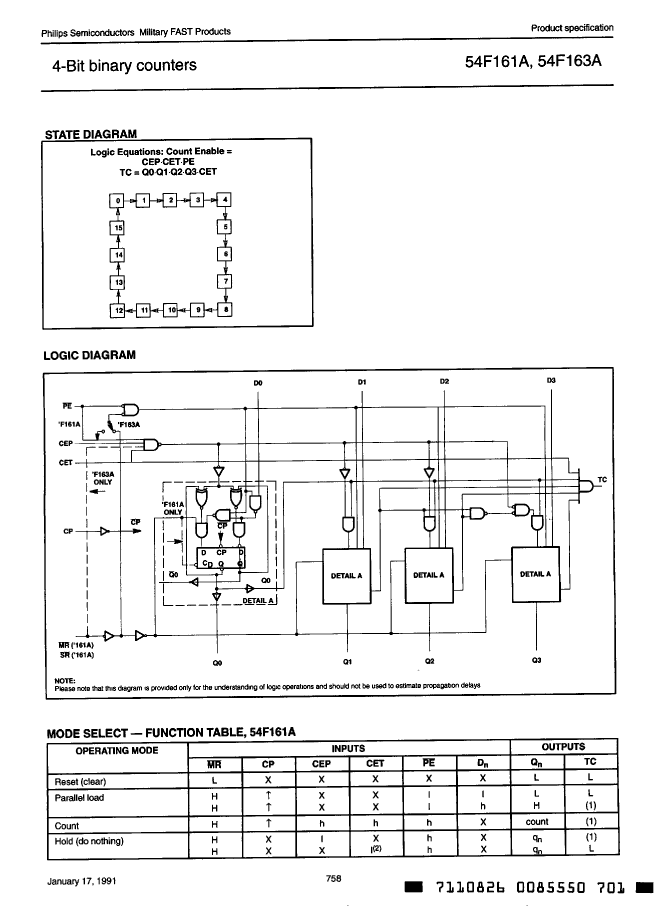

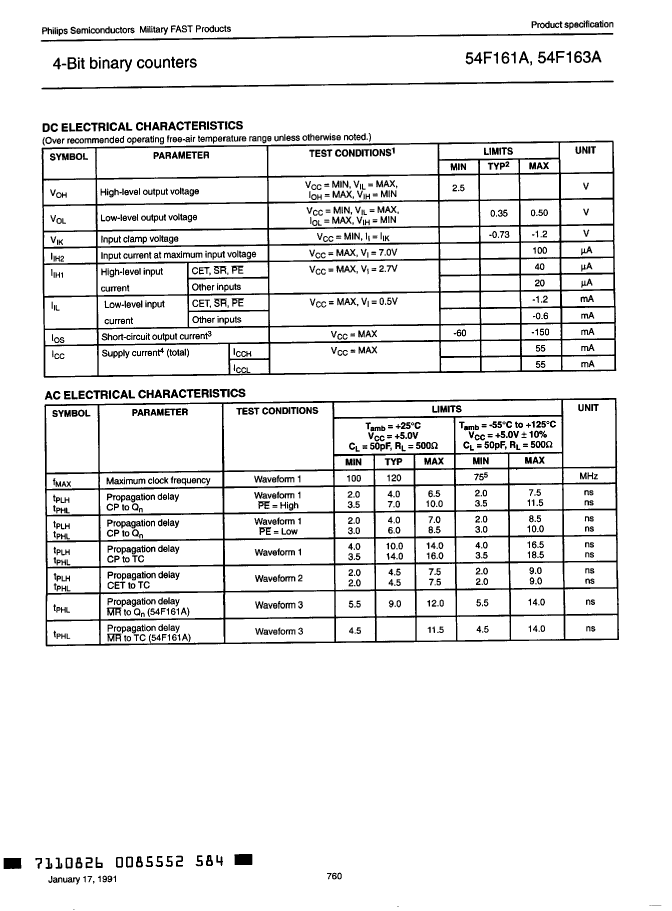

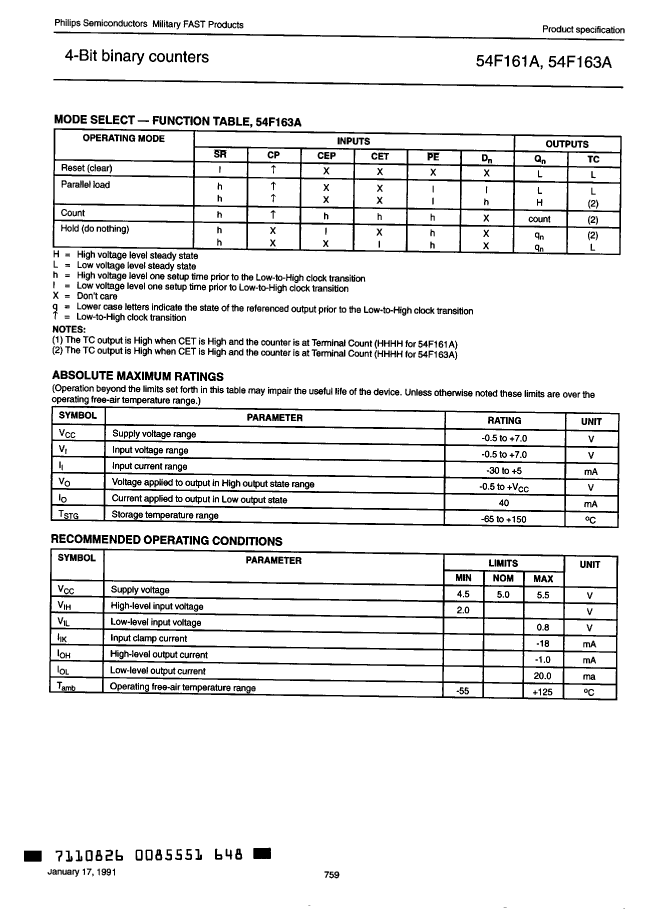

54F163A/BEA: DescriptionBinary Counter, Synchronous, Up Direction, TTL, CDIP16,; Categorylogic logic; File Size437KB，8 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

54F163A/BEA Overview

Binary Counter, Synchronous, Up Direction, TTL, CDIP16,

54F163A/BEA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Counting direction	UP
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54F163A/BEA Related Products

	54F163A/BEA	54F161A/B2A	54F161A/BEA	54F161A/BFA	54F163A/B2A	54F163A/BFA
Description	Binary Counter, Synchronous, Up Direction, TTL, CDIP16,	Binary Counter, Synchronous, Up Direction, TTL, CQCC20,	Binary Counter, Synchronous, Up Direction, TTL, CDIP16,	Binary Counter, Synchronous, Up Direction, TTL, CDFP16,	Binary Counter, Synchronous, Up Direction, TTL, CQCC20,	Binary Counter, Synchronous, Up Direction, TTL, CDFP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	QCCN, LCC20,.35SQ	DIP, DIP16,.3	DFP, FL16,.3	QCCN, LCC20,.35SQ	DFP, FL16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Counting direction	UP	UP	UP	UP	UP	UP
JESD-30 code	R-XDIP-T16	S-XQCC-N20	R-XDIP-T16	R-XDFP-F16	S-XQCC-N20	R-XDFP-F16
JESD-609 code	e0	e0	e0	e0	e0	e0
Load/preset input	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of functions	1	1	1	1	1	1
Number of terminals	16	20	16	16	20	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	QCCN	DIP	DFP	QCCN	DFP
Encapsulate equivalent code	DIP16,.3	LCC20,.35SQ	DIP16,.3	FL16,.3	LCC20,.35SQ	FL16,.3
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE	FLATPACK	CHIP CARRIER	FLATPACK
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	FLAT	NO LEAD	FLAT
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD	DUAL
Base Number Matches	1	1	1	1	1	1
