BNC 75 ohm
Amphenol
®
BNC
Description

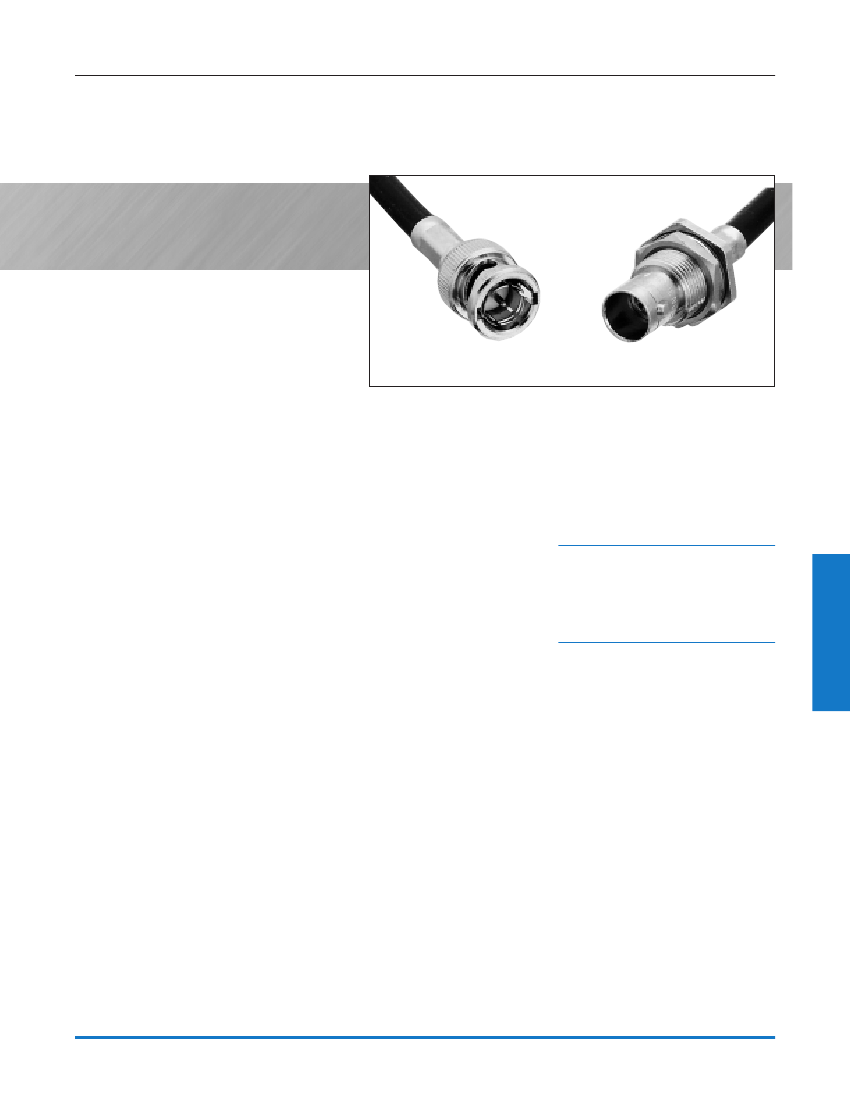

To meet the need for higher performance,
impedance matched cable interconnections,
Amphenol offers a full line of 75 ohm BNC
connectors. These connectors can be used in a
variety of applications where true 75 ohm
performance is needed to insure lower signal
distortion.
Features/Benefits
Designed for the most popular 75 ohm cables used
in broadcast and CATV applications as well as for
plenum cables and others — these connectors fea-
ture crimp-crimp cable affixment for quick and reli-
able installation.
Two distinct types of 75Ω BNCs are available. Both
types mate with each other and with 50Ω BNCs.
• Type 1 is designated 75Ω BNC-T1 and
provides constant 75Ω perfomance with low
VSWR DC to 4 GHz.
• Type 2 is designated 75Ω BNC-T2 and is usable
with low reflection DC to 1 GHz. For applications
above 1 GHz, Type 1 is recommended.
75 ohm
75 ohm Connectors
BNC Plugs and Jacks
Adapters
123
125-132
133-134
BNC
Applications
• Broadcast
• Satellite TV Earth Stations
• Telecommunications
• LAN
• Test and Measurement
• Security Transmission Systems
• Telecom
• Computer Networks
• HDTV
Amphenol Corporation Tel: 800-627-7100
www.amphenolrf.com
123
BNC 75 ohm
Adapters

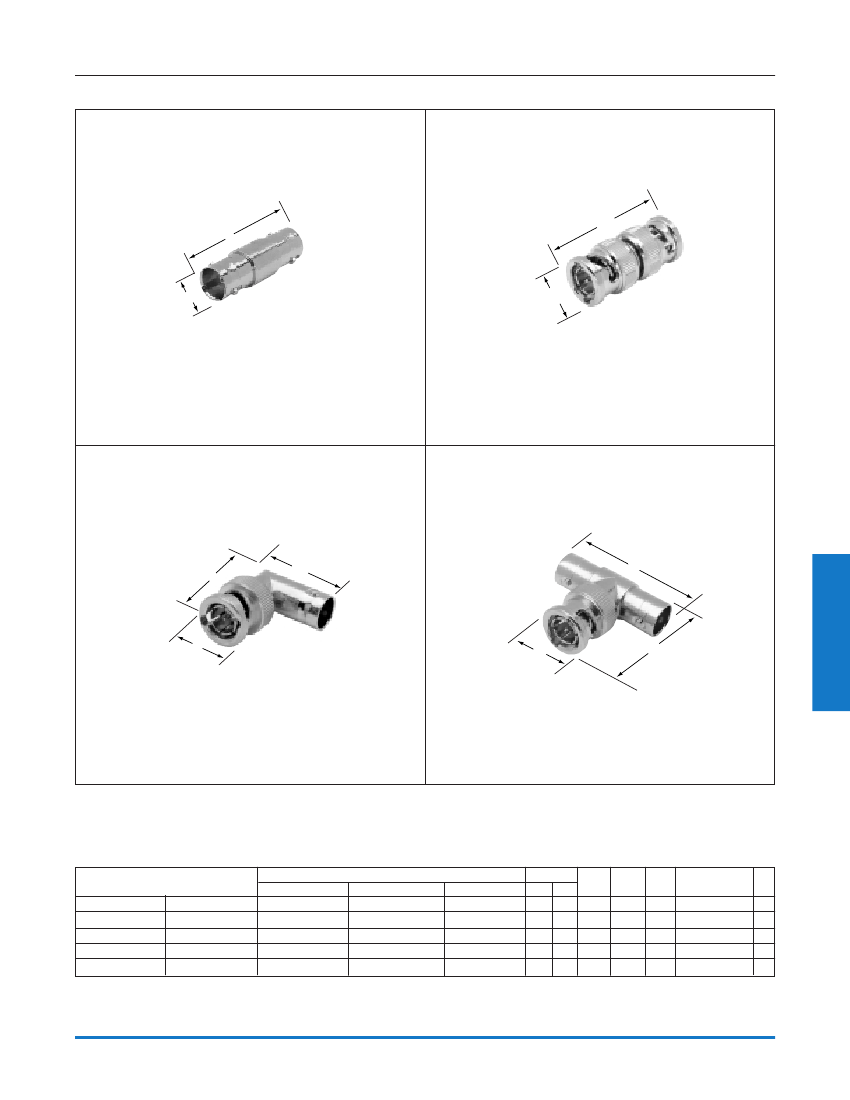

Fig. 1
Fig. 2
Amphenol
®
a
a
b
b
75Ω BNC Adapter (J/J)
31-219-75
31-70019
Fig.3
Fig. 4
75Ω BNC Adapter (P/P)
31-218-75RFX
a
d
a
BNC
b
b
d
75Ω BNC Adapter (P/J)
31-9-75
31-9-75-RFX
75Ω BNC Tee Adapter (J/P/J)
31-70036
75Ω BNC ADAPTERS
Description
Straight
Straight
Straight
Angle
Tee
L
distributor stocked
Jack-Jack
Jack-Jack
Plug-Plug
Jack-Plug
Jack-Plug-Jack
Dimensions, inches (millimeters)
a
b
1.28(32.5)
.434(11.0)
1.40(35.6)
1.33(33.7)
1.02(25.9)
1.28(32.5)
.434(11.0)
.571(14.5)
.562(14.3)
.562(14.3)
d
—
—
—
.405(10.3)
1.04(26.3)
Notes
Plt. Ins.
P15 D1
P17 D1
P15 D1
P15 D9
P15 D1
Mtg.
Hole
—
—
—
—
—
UG
No.
—
—
—
—
—
75Ω
Type
T2
T1
T2
T2
T1
Amphenol
Number
31-219-75
31-70019
31-218-75RFX
31-9-75
31-70036
Fig.
1
1
2
3
4
L
L
Amphenol Corporation Tel: 800-627-7100
www.amphenolrf.com
133
