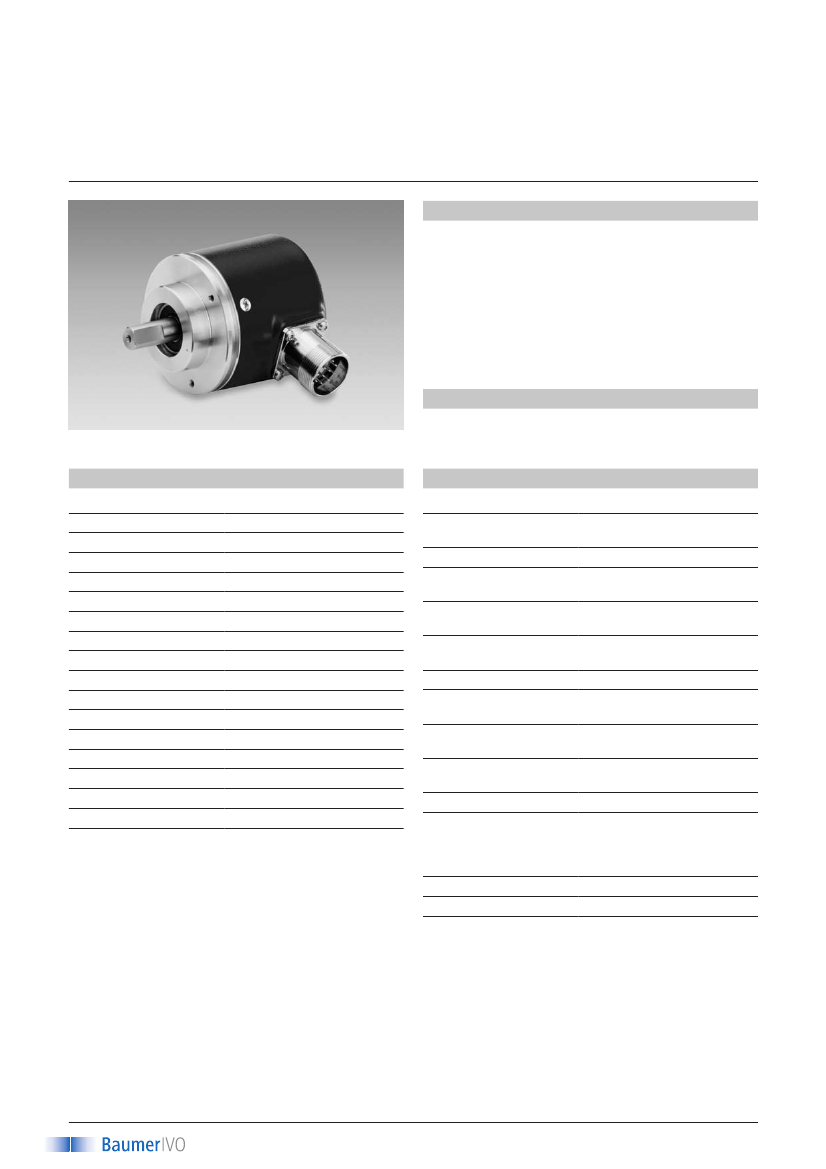

Absolute encoders - bus interfaces
Shaft with clamping or synchro flange
Multiturn encoder 13 bit ST / 12 bit MT, RS485-SLIN
GXM7W - SLIN
Features
– Encoder multiturn / SLIN
– Optical sensing
– Resolution: singleturn 13 bit, multiturn 12 bit
– Clamping flange or synchro flange
– SLIN fieldbus protocol
– Max. 8 bus users
– Bus access according to master/slave principle
– Permanent check of code continuity
Optional
GXM7W with clamping flange
Technical data - electrical ratings
Voltage supply
Consumption w/o load
Initializing time (typ.)
Interface
Transmission rate
User address
Steps per turn
Number of turns
Absolute accuracy
Sensing method
Code
Code sequence
Output circuit
Interference immunity
Emitted interference
Approval
10...30 VDC
≤50 mA (24 VDC)
250 ms after power on
RS485-SLIN
9.6...115 kBaud
Coded by connection
8192 / 13 bit
4096 / 12 bit
±0.025°
Optical
Binary
CCW default
RS485
DIN EN 61000-6-2
DIN EN 61000-6-4
UL approval / E63076
Reverse polarity protection Yes
– Integration of customer-specific RS485 protocols
Technical data - mechanical design
Housing
Shaft
Flange
Protection DIN EN 60529
Operating speed
Starting torque
Rotor moment of inertia
Admitted shaft load
Materials
Operating temperature
Relative humidity
Resistance
ø58 mm
ø10 mm (clamping flange)
ø6 mm (synchro flange)
Clamping or synchro flange
IP 54 without shaft seal
IP 65 with shaft seal
≤10000 rpm (mechanical)
≤6000 rpm (electric)
≤0.015 Nm IP 54
≤0.03 Nm IP 65
20 gcm²
≤20 N axial
≤40 N radial
Housing: steel
Flange: aluminium
-25...+85 °C
-40...+85 °C (optional)
95 % non-condensing
DIN EN 60068-2-6
Vibration 10 g, 16-2000 Hz
DIN EN 60068-2-27
Shock 200 g, 6 ms
400 g
Connector or cable
Weight approx.
E-connection
1
www.baumerivo.com
12/11/2008
Subject to modification in technic and design. Errors and omissions excepted.
Shaft with clamping or synchro flange
Multiturn encoder 13 bit ST / 12 bit MT, RS485-SLIN
Absolute encoders - bus interfaces
GXM7W - SLIN
Part number
GXM7W.
10
Interface
02
SLIN protocol 9.6 kBaud
03 SLIN protocol 115.2 kBaud
04 SLIN protocol 19.2 kBaud
A0
A1
11
21
0
A
1
B
E-connection
Connector M23, 12-pin, axial
Connector M23, 12-pin, radial
Cable 1 m, axial
Cable 1 m, radial
Accessories
Connectors and cables
Z 130.001
Z 130.003
Z 130.005
Z 130.007
Z 119.006
Z 119.013
Z 119.015
Z 119.017
Z 119.035
Female connector M23, 12-pin, less cable
Female connector M23, 12-pin, 2 m cable
Female connector M23, 12-pin, 5 m cable
Female connector M23, 12-pin, 10 m cable
Eccentric fixing, single
Adaptor plate for clamping flange for
modification into synchro flange
Mounting adaptor for synchro flange
Mounting angle for clamping flange
Bearing flange for encoders with synchro
flange
Mounting accessories
Flange / Shaft
Clamping flange / ø10 mm IP 54
Clamping flange / ø10 mm IP 65
Synchro flange / ø6 mm IP 54
Synchro flange / ø6 mm IP 65
2
www.baumerivo.com
12/11/2008
Subject to modification in technic and design. Errors and omissions excepted.
Absolute encoders - bus interfaces
Shaft with clamping or synchro flange
Multiturn encoder 13 bit ST / 12 bit MT, RS485-SLIN
GXM7W - SLIN
Terminal significance
UB
GND
T,R IN
T,R OUT
Encoder voltage supply.
Encoder ground connection relating to UB.
Serial data lines.
To avoid stub lines the data lines are
guided outside on a pair of 2 wires. The
arriving bus is on T,R+ IN and T,R- IN, the
departing bus on T,R+ OUT und T,R-. If the
encoder serves as bus termination or is
the only user, only the pair of wires T,R+ IN
and T,R- IN is utilized. Note: External
connection of terminating resistor 150
Ω
to
final
user.
Ident 0...2 are utilized for setting the
encoder addresses
(identifiers).
Less
potential the inputs are internally against
UB
(=“1“)
by
pull-up
resistors what
equals
address 1.
1
2
3
4
5
6
7
8
1
1
1
0
1
1
1
0
1
0
0
1
1
1
0
0
1
0
1
0
0
0
0
0
Terminal assignment
Connector
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
Pin 10
Pin 11
Pin 12
Core colour
brown
black
blue
beige
green
yellow
violet
pink
black/yellow
–
–
Assingment
UB
GND
T,R+ IN
Ident 0
T,R- OUT
Ident 1
T,R- IN
T,R+ OUT
Ident 2
–
–
Please use cores twisted in pairs (for
example T,R+ / T,R-) for extension
cables of more than 10 m length.
brown/yellow –
Ident 0...2
Address no.
Ident 0
Ident 1
Ident 2
8
7
6
5
12
9 1
10
11
2
3
4
Trigger level
SLIN-interface
SLIN-Data
Control inputs
Input level High
Input level Low
Input resistance
Circuit
Linedriver RS485
Input circuit
>0.7 UB
<0.3 UB
10 kΩ
Subject to modification in technic and design. Errors and omissions excepted.
3
www.baumerivo.com
12/11/2008
Shaft with clamping or synchro flange
Multiturn encoder 13 bit ST / 12 bit MT, RS485-SLIN
Absolute encoders - bus interfaces
GXM7W - SLIN

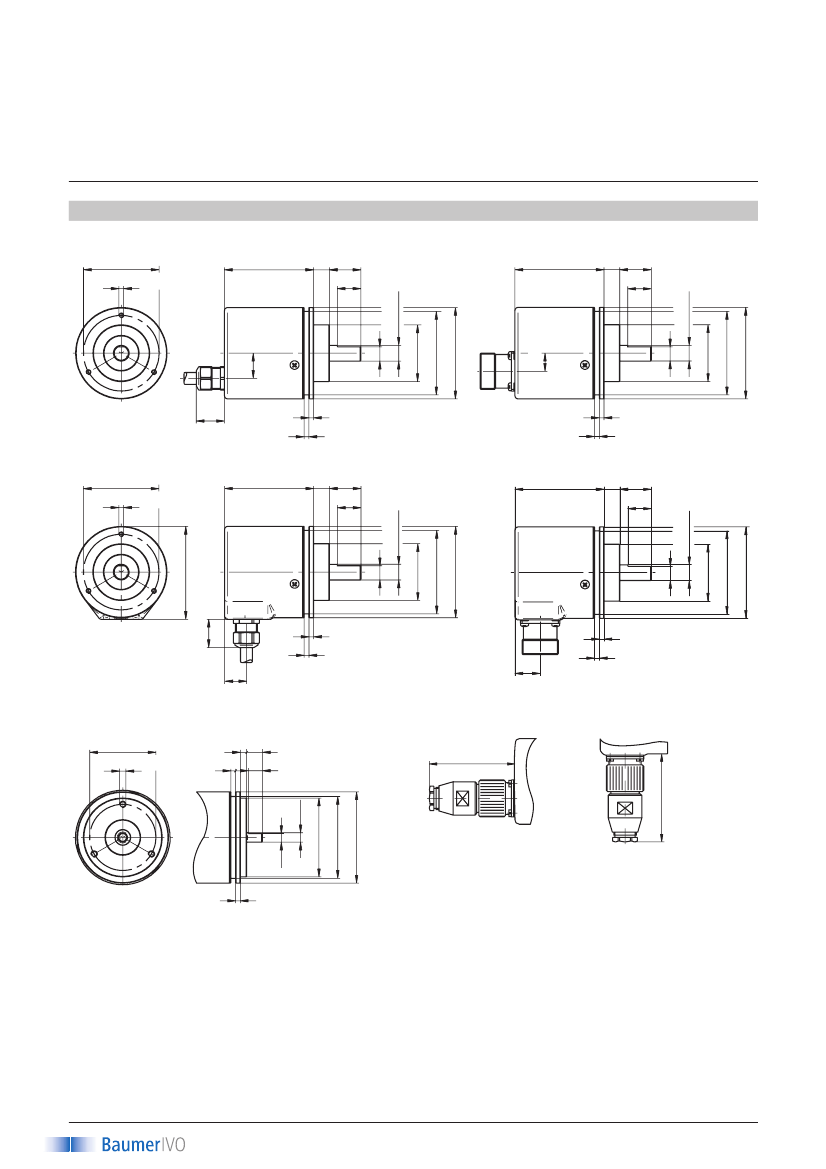

Dimensions
GXM7W clamping flange
48
±0.1
M3x7 (3x120°)
57
10 20
15
ø10h6
57
10 20
15
ø10h6
ø36f8
ø53
ø36f8
ø10h6
ø36f8
ø53
ø53
ø58
11.5
13
21
3
3
3
3
48
±0.1
M3x7 (3x120°)
57
10 20
15
ø10h6
57
10 20
15
ø36f8
ø53
ø58
3
3
16
16
21
3
3
GXM7W synchro flange
42
±0.1
M4x7 (3x120°)
4
3
10
9
ø6f8
ø50h7
GXM7W connector dimensions
Subject to modification in technic and design. Errors and omissions excepted.
12/11/2008
58
59
ø52
3
5.5
ø58
4
www.baumerivo.com
ø58
59
9
9
ø58
9
9
