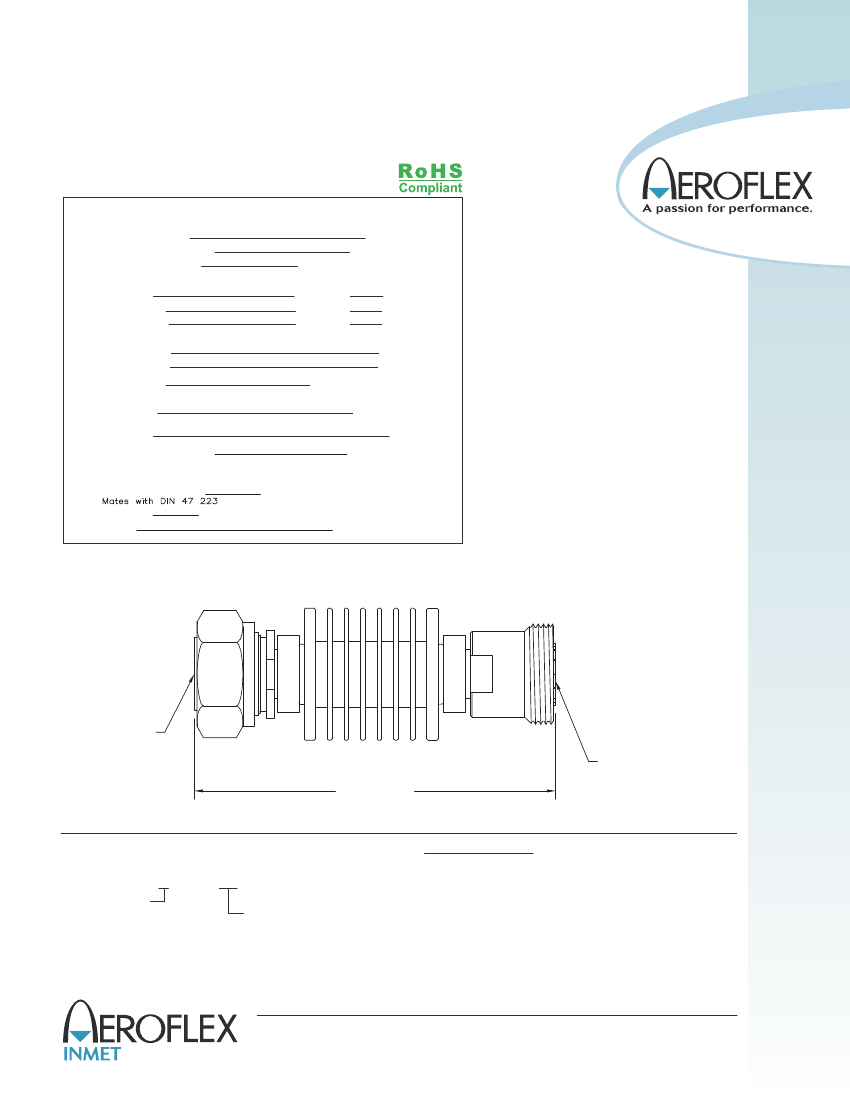

ATTENUATORS
7/16 - DIN, up to 7 GHz, 20 Watts
.5
SPECIFICATIONS:
Models: XD20W-XX
Electrical:
Frequency Range
Standard Freq. Values
Standard dB Values
Attenuation Accuracy
3 & 6 dB
10 & 20 dB
30 & 40 dB
VSWR
DC - 4 GHz
4 - 7.5 GHz
Input Power
Peak Power
Impedance
DC - 7.5 GHz
2.5, 4 & 7.5 GHz
0, 3, 6, 10, 20, 30 & 40 dB
DC - 6 GHz
6 - 7.5 GHz
±0.30 dB
±0.50 dB
±0.50 dB
±0.75 dB
±0.75 dB
±1.00 dB
1.25:1 Max.
1.45:1 Max.
20 Watts Avg. @ +25°C
Derated Linearly to 4 Watts @ +1
o
C
25
500 Watts Max.
(5uSec Pulse, .05% Duty Cycle)
50 Ohms
Operating Temp. Range
-65°C to +125°C
Silver or White Bronze Plated Brass
Mechanical:
7/16 DIN Connectors
Conductors
Housing
Silver or White Bronze Plated Beryllium Copper
Anodized Aluminum
Model Number:
XD20W-XX
7/16 - DIN Male
7/16 DIN Female
4.11 ±.08
[104.4 ±2.0]
HOW TO ORDER:
Model Number:
Ordering Examples:
Model Number:
2D20W-06
DC - 2.5 GHz, 6 dB
dB Value
Model Number:
7D20W-30
DC - 7 GHz, 30 dB
.5
XD20W-XX
Freq. Range
2 = DC - 2.5 GHz
4 = DC - 4 GHz
7 = DC - 7 GHz
.5
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design specifications are subject to change without notice.
Contact factory for technical specifications before purchasing or use.
XD20W-ATT: REV J
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex.com/inmet • inmetsales@aeroflex-.com
