73542-650LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 73542-650LF

73542-650LF: DescriptionBoard Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size150KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

73542-650LF Overview

Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE

73542-650LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
Factory Lead Time	11 weeks 1 day
Board mount options	PEG
body width	0.12 inch
subject depth	0.187 inch
body length	2.62 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.529 N
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	73542
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	130 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.175 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
UL Flammability Code	94V-0
Evacuation force-minimum value	.417 N
Base Number Matches	1

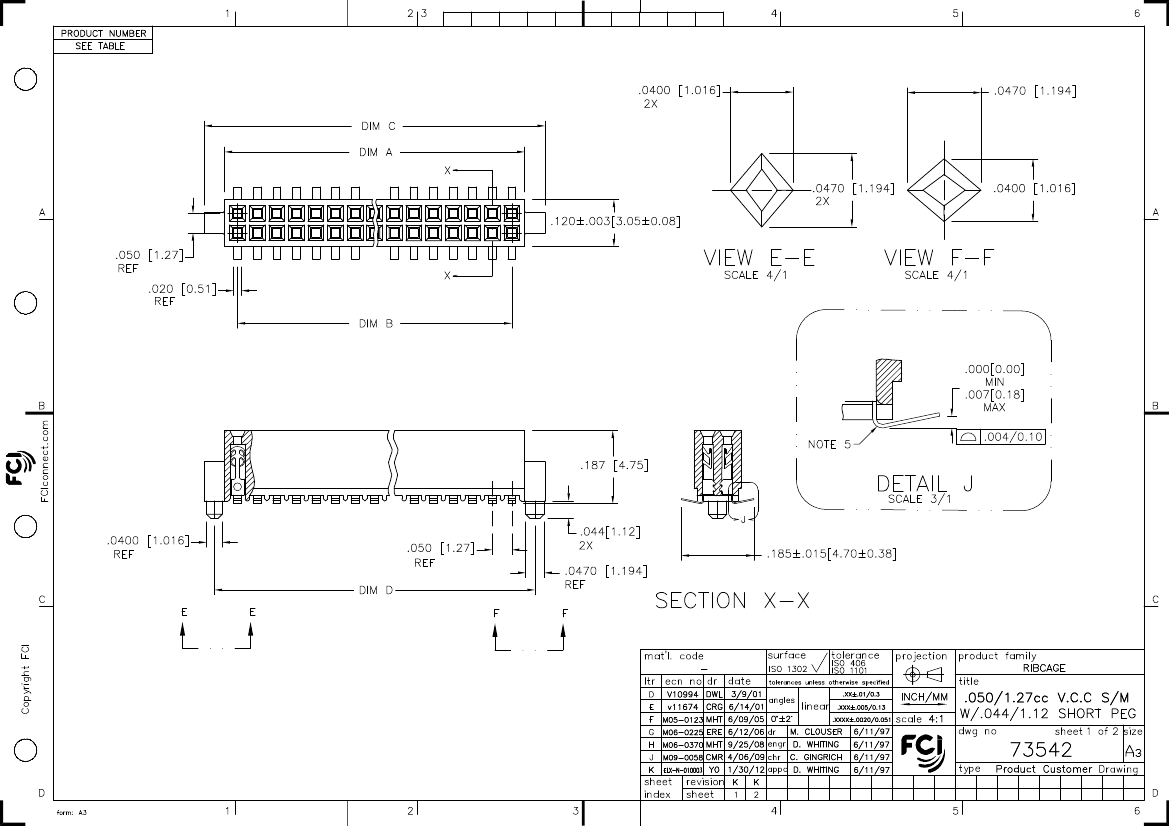

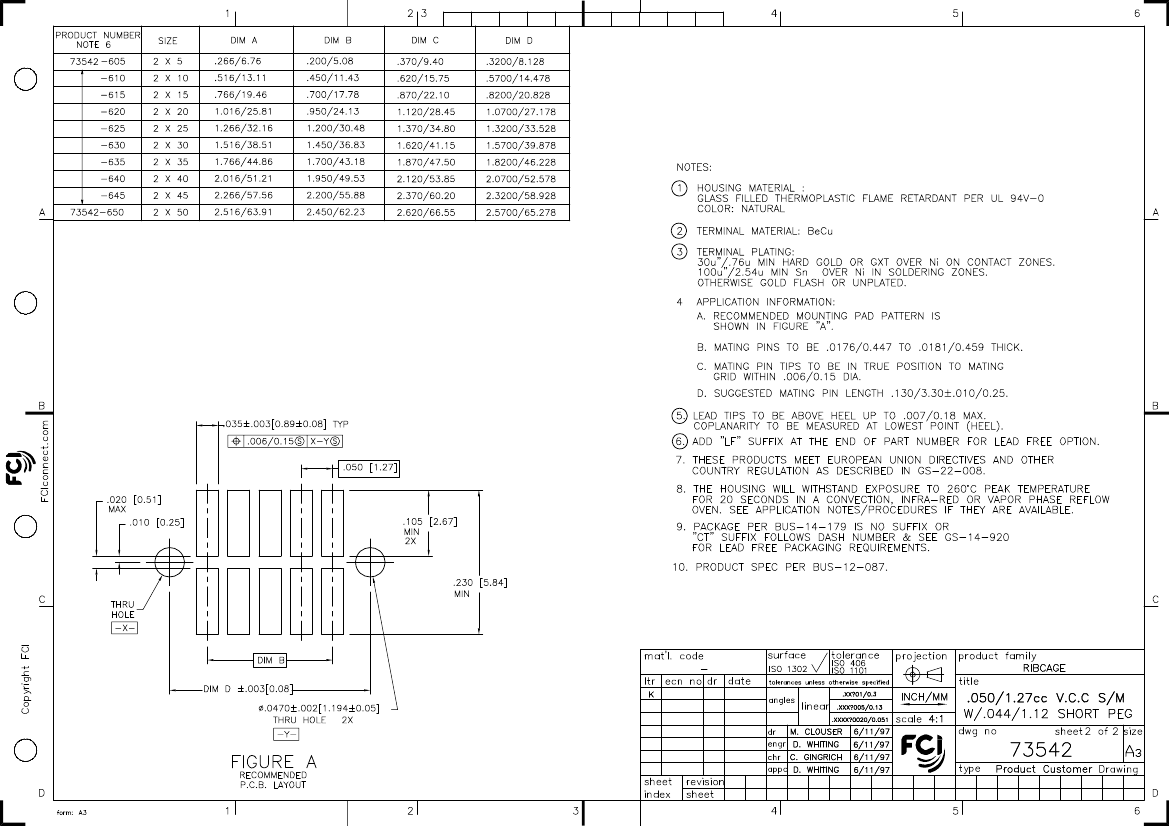

Preview

Download Datasheet

View All

PDS: Rev :K

STATUS:Released

Printed: Sep 11, 2013
