315620050716833: DescriptionCONNECTOR, 50 CONTACT(S), MALE, RIGHT ANGLE PCMCIA CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size985KB，7 Pages; ManufacturerKyocera

Download Datasheet Parametric Compare View All

315620050716833 Overview

CONNECTOR, 50 CONTACT(S), MALE, RIGHT ANGLE PCMCIA CONNECTOR, SURFACE MOUNT

315620050716833 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

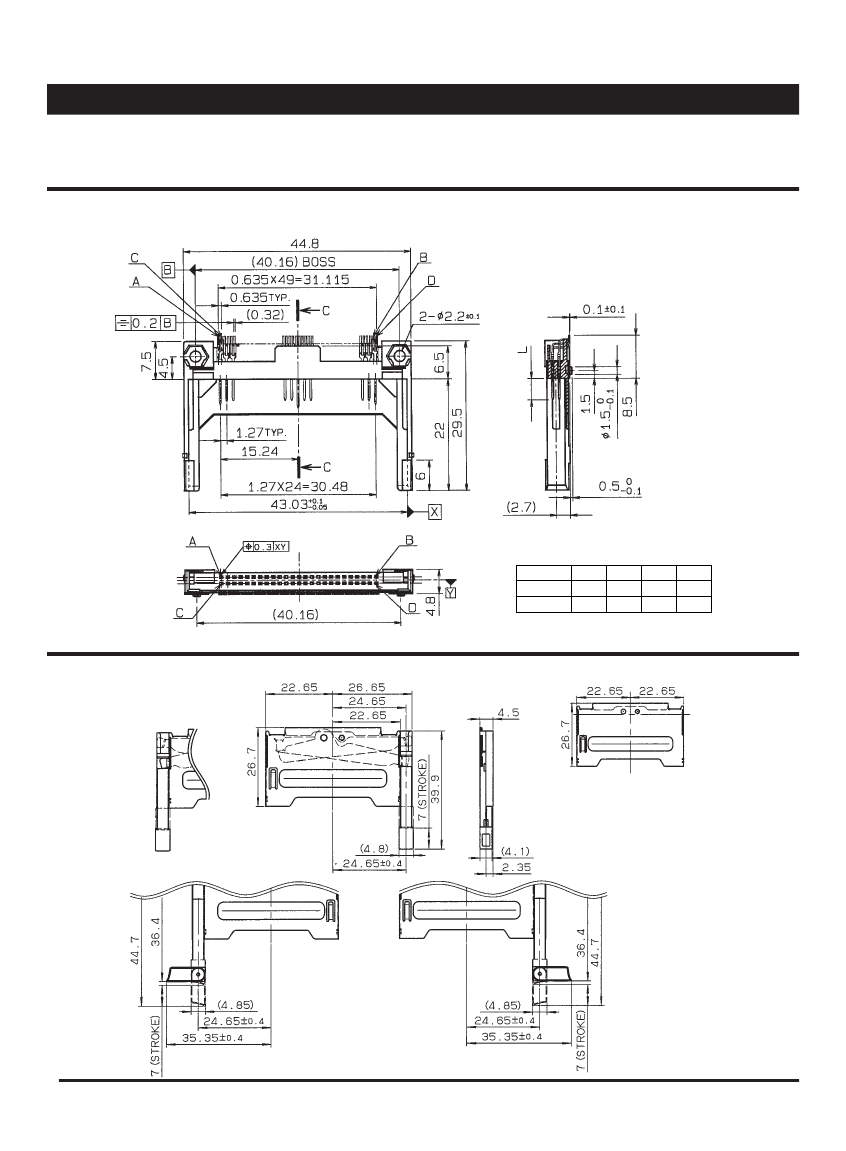

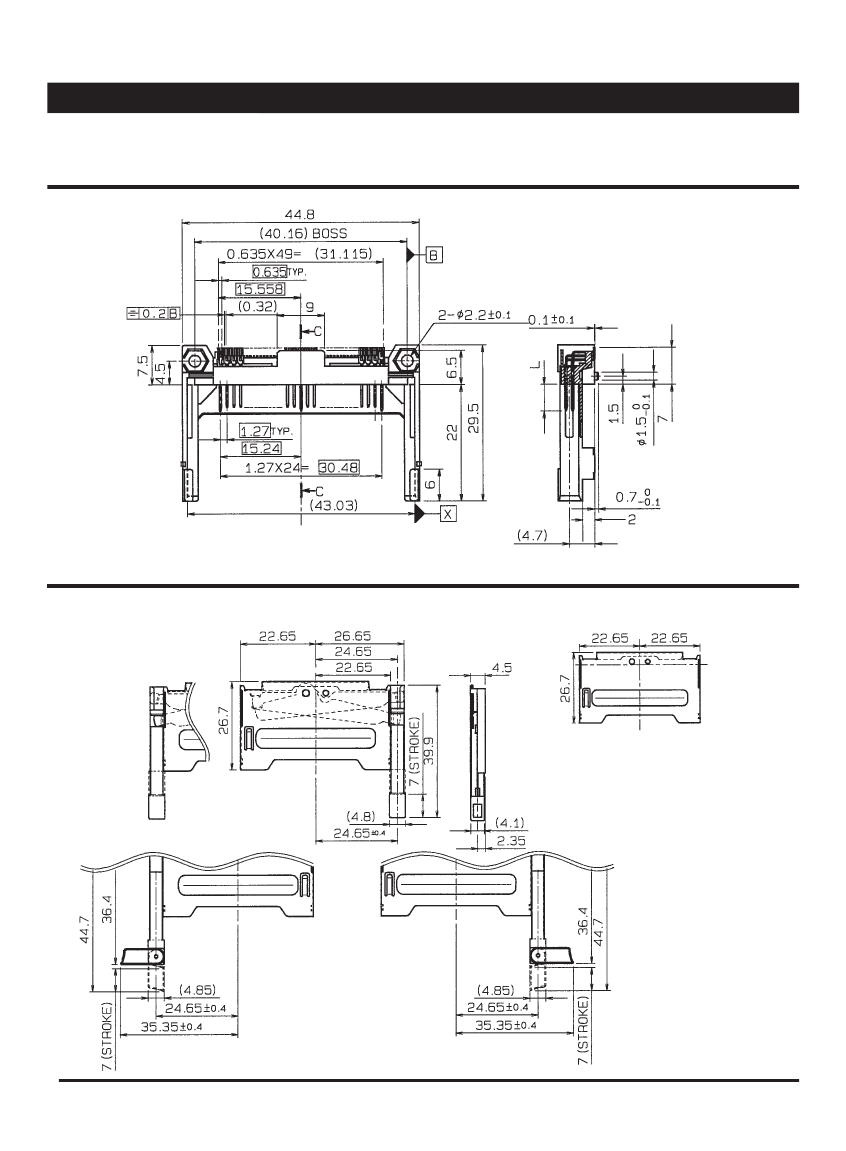

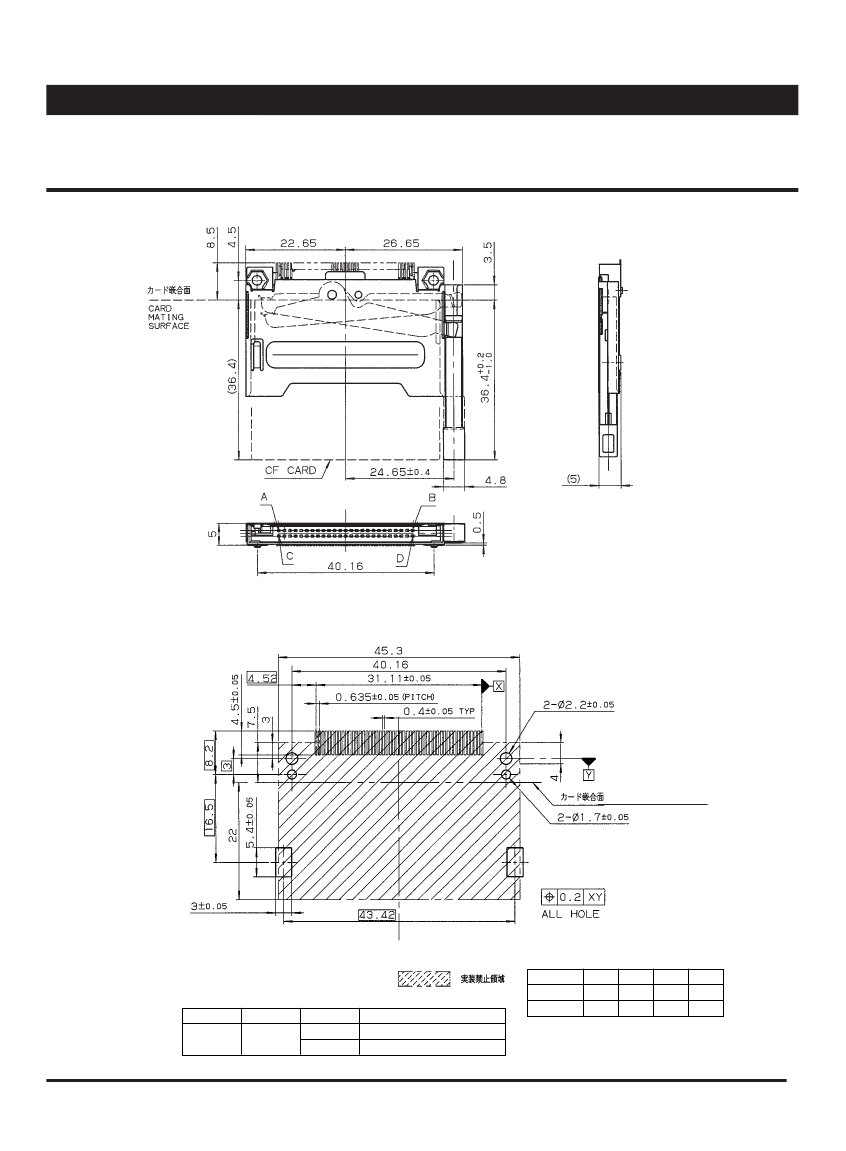

コンパクトフラッシュメモリーカードコネクタ

Compact Flash Memory Card Connectors

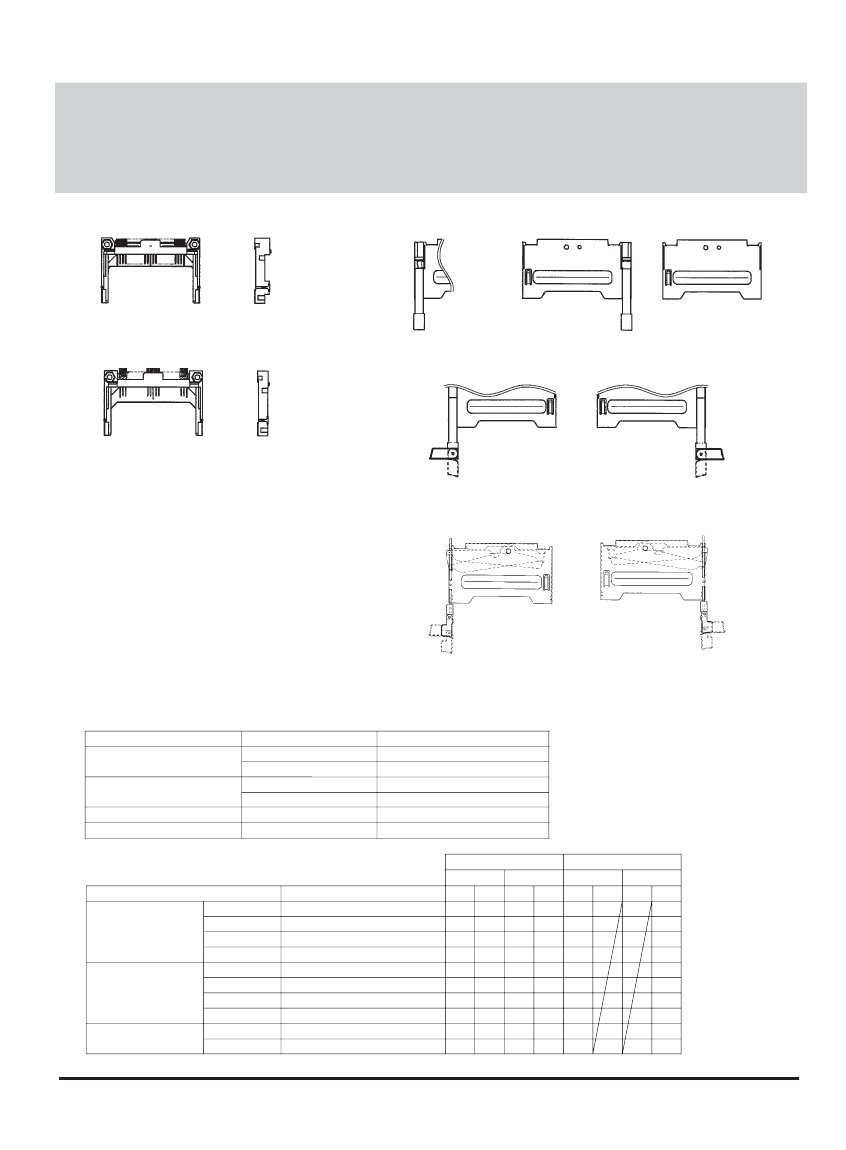

Product Selection Guide

CONNECTOR

EJECTOR

スタンドオフ H＝2.0mm

STAND OFF H＝2.0mm

LEFT STRAIGHT BUTTON

RIGHT STRAIGHT BUTTON

WITHOUT BUTTON

スタンドオフ H＝0mm

STAND OFF H＝0mm

LEFT FOLDABLE BUTTON

RIGHT FOLDABLE BUTTON

LEFT FOLDABLE BUTTON

（SLIM TYPE）

RIGHT FOLDABLE BUTTON

（SLIM TYPE）

CONNECTOR

stand off

TYPEⅠ height=0

TYPEⅠ height=2.0

TYPEⅡ height=0

TYPEⅡ height=2.0

KEYING

normal

reverse

normal

reverse

normal

reverse

connector

31 5610 050 500 833

31 5610 050 550 833

31 5610 050 210 833

31 5610 050 260 833

31 5620 050 116 833

31 5620 050 716 833

TYPE Ⅰ

page

P12

P14

P16

P17

TYPE Ⅱ

height=0mm

height=2.0mm

EJECTOR

button side

straight

Left

Right

Left

Right

foldable

Left

Right

Left

Right

foldable SLIM

Left

Right

ejector

30 5610 000 001 000

30 5610 000 002 000

30 5620 000 001 000

30 5620 000 002 000

30 5610 000 005 000

30 5610 000 006 000

30 5620 000 005 000

30 5620 000 006 000

30 5610 000 904 000

30 5610 000 903 000

height=0mm

height=2.0mm

normal reverse normal reverse normal reverse normal reverse

○
