5962-9326103MEA datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> 5962-9326103MEA

5962-9326103MEA: DescriptionPower Factor Controller, Current-mode, 1.5A, 118kHz Switching Freq-Max, BIPolar, CDIP16, CERAMIC,DIP-16; CategoryPower/power management The power supply circuit; File Size177KB，5 Pages; ManufacturerUnitrode Corporation

Download Datasheet Parametric Compare View All

5962-9326103MEA Overview

Power Factor Controller, Current-mode, 1.5A, 118kHz Switching Freq-Max, BIPolar, CDIP16, CERAMIC,DIP-16

5962-9326103MEA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	POWER FACTOR CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	35 V
Minimum input voltage	15 V
Nominal input voltage	18 V
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.56 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	1.5 A
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.08 mm
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	118 kHz
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

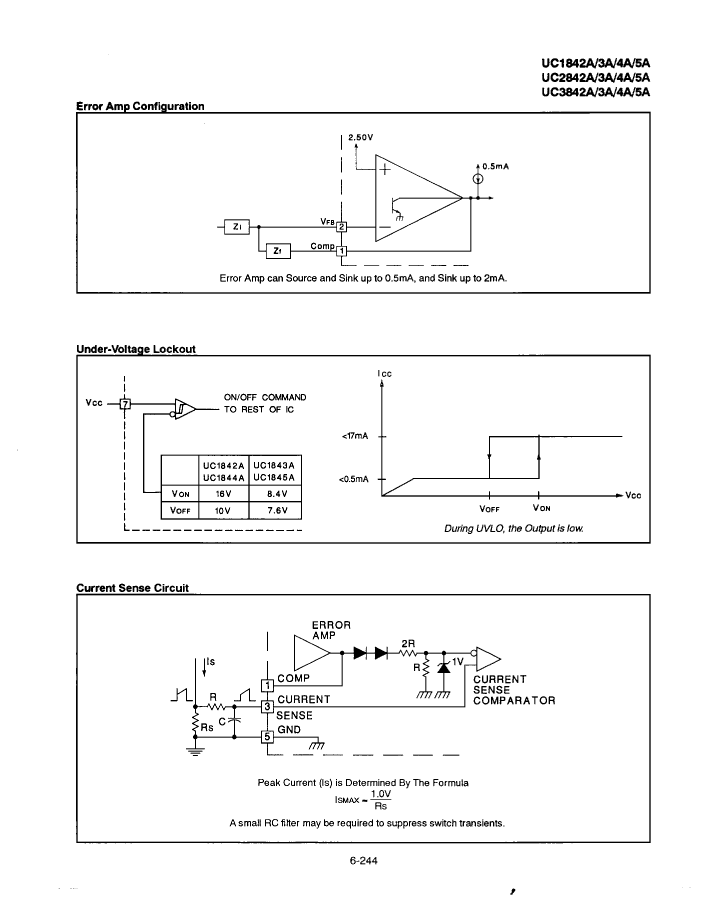

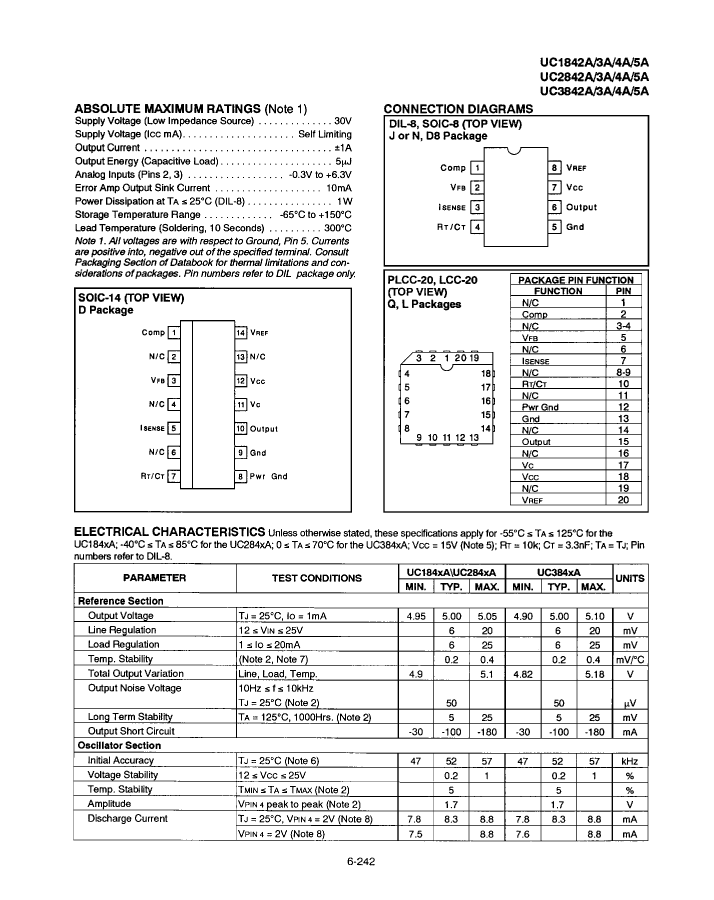

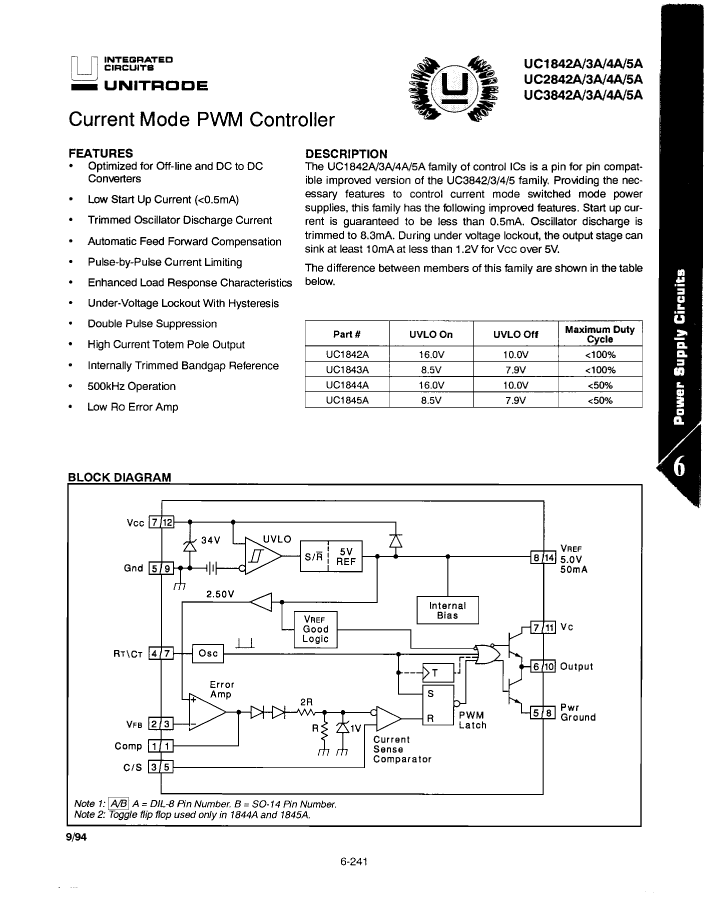

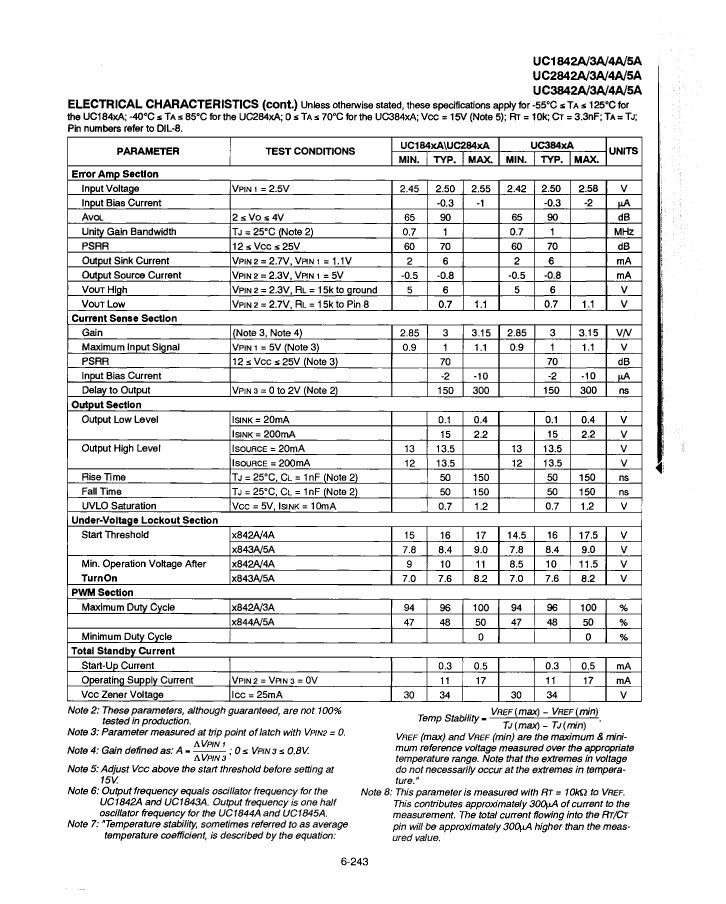

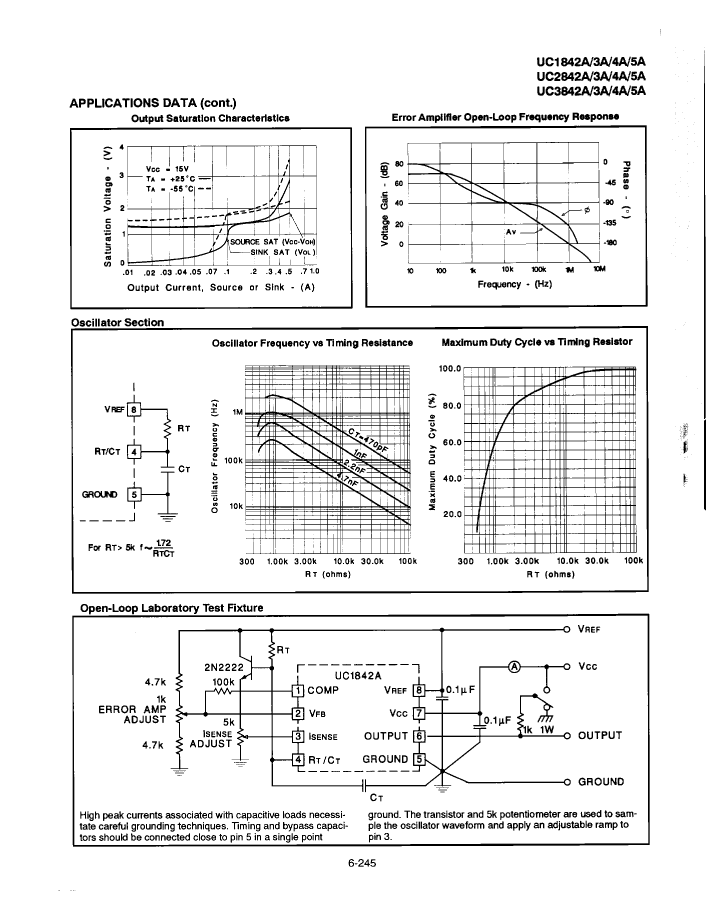

Preview

Download Datasheet

View All

5962-9326103MEA Related Products

	5962-9326103MEA	5962-9326103M2A	5962-9326103MEX	5962-9326103M2X	UC1845AL/883BC
Description	Power Factor Controller, Current-mode, 1.5A, 118kHz Switching Freq-Max, BIPolar, CDIP16, CERAMIC,DIP-16	Power Factor Controller, Current-mode, 1.5A, 118kHz Switching Freq-Max, BIPolar, CQCC20, CERAMIC,LCC-20	Power Factor Controller, Current-mode, 1.5A, CDIP16, CERAMIC,DIP-16	Power Factor Controller, Current-mode, 1.5A, 118kHz Switching Freq-Max, CQCC20, CERAMIC,LCC-20	Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, CQCC20,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	POWER FACTOR CONTROLLER	POWER FACTOR CONTROLLER	POWER FACTOR CONTROLLER	POWER FACTOR CONTROLLER	SWITCHING CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Minimum input voltage	15 V	15 V	12 V	15 V	8.2 V
JESD-30 code	R-GDIP-T16	S-CQCC-N20	R-GDIP-T16	S-CQCC-N20	S-CQCC-N20
Number of functions	1	1	1	1	1
Number of terminals	16	20	16	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1 A
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO	YES	YES
Switch configuration	SINGLE	SINGLE	BOOST	SINGLE	SINGLE
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal location	DUAL	QUAD	DUAL	QUAD	QUAD
package instruction	DIP, DIP16,.3	QCCN, LCC20,.35SQ	DIP,	QCCN,	-
Maximum input voltage	35 V	35 V	-	35 V	30 V
Nominal input voltage	18 V	18 V	18 V	18 V	-
length	19.56 mm	8.89 mm	19.56 mm	8.89 mm	-
encapsulated code	DIP	QCCN	DIP	QCCN	-
Maximum seat height	5.08 mm	2.03 mm	5.08 mm	2.03 mm	-
Maximum switching frequency	118 kHz	118 kHz	-	118 kHz	500 kHz
technology	BIPOLAR	BIPOLAR	-	-	BIPOLAR
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	-
width	7.62 mm	8.89 mm	7.62 mm	8.89 mm	-
Base Number Matches	1	1	1	1	-
Maker	-	-	Unitrode Corporation	Unitrode Corporation	Unitrode Corporation
