5962-8855701FA: Description10K SERIES, 4-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP16, CERAMIC, FP-16; Categorylogic logic; File Size119KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

5962-8855701FA Overview

10K SERIES, 4-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP16, CERAMIC, FP-16

5962-8855701FA Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP, FL16,.3
Contacts	16
Reach Compliance Code	unknown
Other features	HOLD MODE
Counting direction	BIDIRECTIONAL
series	10K
JESD-30 code	R-GDFP-F16
JESD-609 code	e0
length	9.65 mm
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Maximum Frequency@Nom-Sup	150000000 Hz
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-EMITTER
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	-5.2 V
Maximum supply current (ICC)	112 mA
propagation delay (tpd)	4.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.15 mm
surface mount	YES
technology	ECL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	6.415 mm
minfmax	150 MHz
Base Number Matches	1

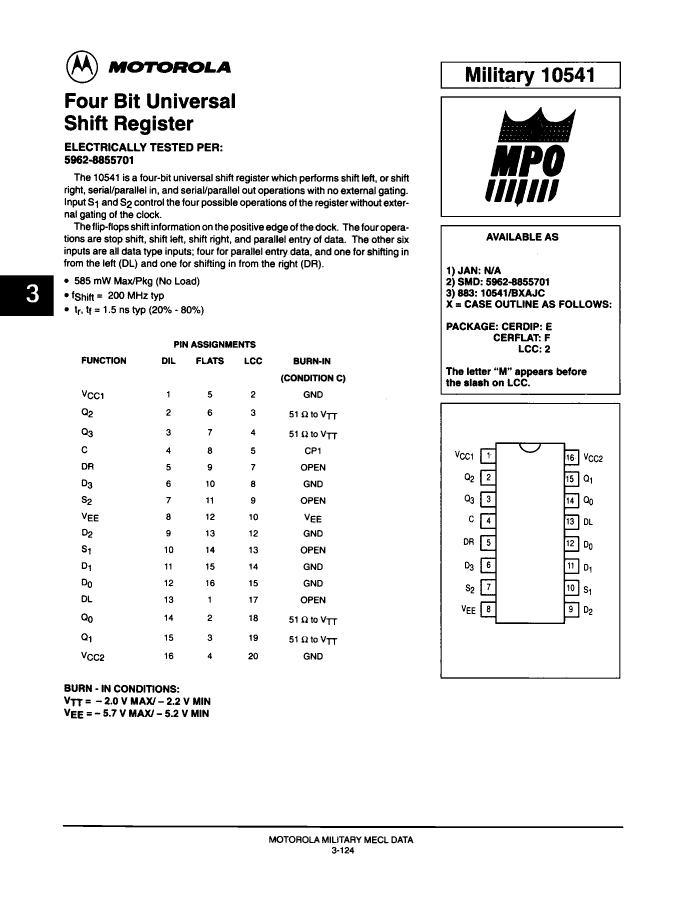

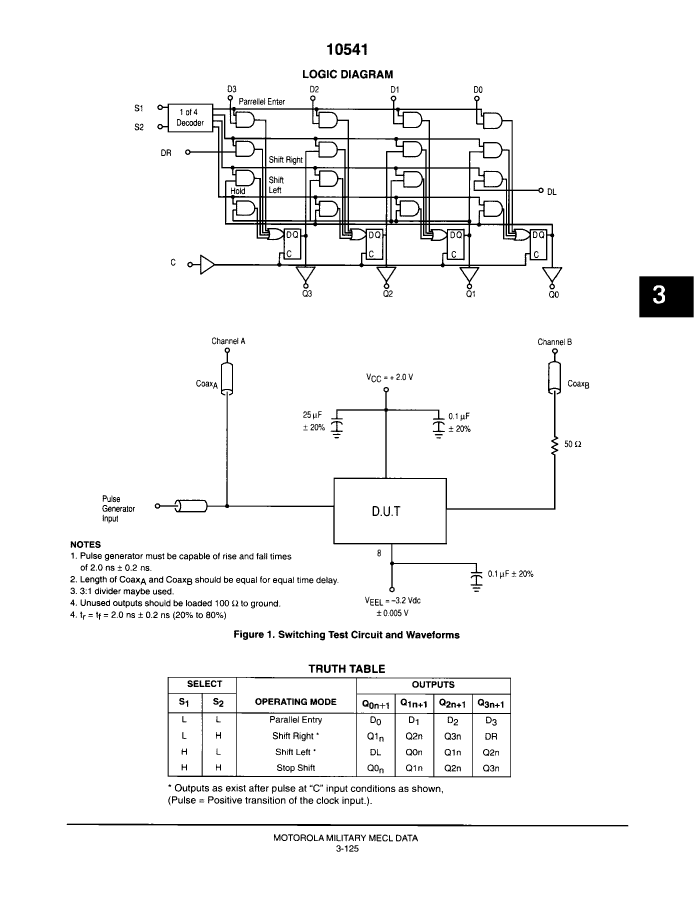

Preview

Download Datasheet

View All

5962-8855701FA Related Products

	5962-8855701FA	10541/BFAJC	10541/BEAJC	5962-8855701EA	5962-88557012A
Description	10K SERIES, 4-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP16, CERAMIC, FP-16	10K SERIES, 4-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP16, CERAMIC, FP-16	10K SERIES, 4-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP16, CERDIP-16	10K SERIES, 4-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP16, CERDIP-16	10K SERIES, 4-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20
Parts packaging code	DFP	DFP	DIP	DIP	QLCC
package instruction	DFP, FL16,.3	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	QCCN, LCC20,.35SQ
Contacts	16	16	16	16	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	HOLD MODE	HOLD MODE	HOLD MODE	HOLD MODE	HOLD MODE
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	10K	10K	10K	10K	10K
JESD-30 code	R-GDFP-F16	R-GDFP-F16	R-GDIP-T16	R-GDIP-T16	S-CQCC-N20
JESD-609 code	e0	e0	e0	e0	e0
length	9.65 mm	9.65 mm	19.49 mm	19.49 mm	8.885 mm
Logic integrated circuit type	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT
Maximum Frequency@Nom-Sup	150000000 Hz	150000000 Hz	150000000 Hz	150000000 Hz	150000000 Hz
Number of digits	4	4	4	4	4
Number of functions	1	1	1	1	1
Number of terminals	16	16	16	16	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DFP	DIP	DIP	QCCN
Encapsulate equivalent code	FL16,.3	FL16,.3	DIP16,.3	DIP16,.3	LCC20,.35SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	FLATPACK	IN-LINE	IN-LINE	CHIP CARRIER
power supply	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Maximum supply current (ICC)	112 mA	112 mA	112 mA	112 mA	112 mA
propagation delay (tpd)	4.5 ns	4.5 ns	4.5 ns	4.5 ns	4.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	2.15 mm	2.15 mm	5.08 mm	5.08 mm	1.9 mm
surface mount	YES	YES	NO	NO	YES
technology	ECL	ECL	ECL	ECL	ECL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	QUAD
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	6.415 mm	6.415 mm	7.62 mm	7.62 mm	8.885 mm
minfmax	150 MHz	150 MHz	150 MHz	150 MHz	150 MHz
Base Number Matches	1	1	1	1	1
