194082 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 194082

Preview

194082: DescriptionD Subminiature Connector, 25 Contact(s), Male, Solder Terminal,; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

194082 Overview

D Subminiature Connector, 25 Contact(s), Male, Solder Terminal,

194082 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	YES
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	YES
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 30 St.

5 x 18 = 90

max. 138

5,8

tray packaging

packaging unit 30 pcs

17,5

+0,3

9

3,2

2,6

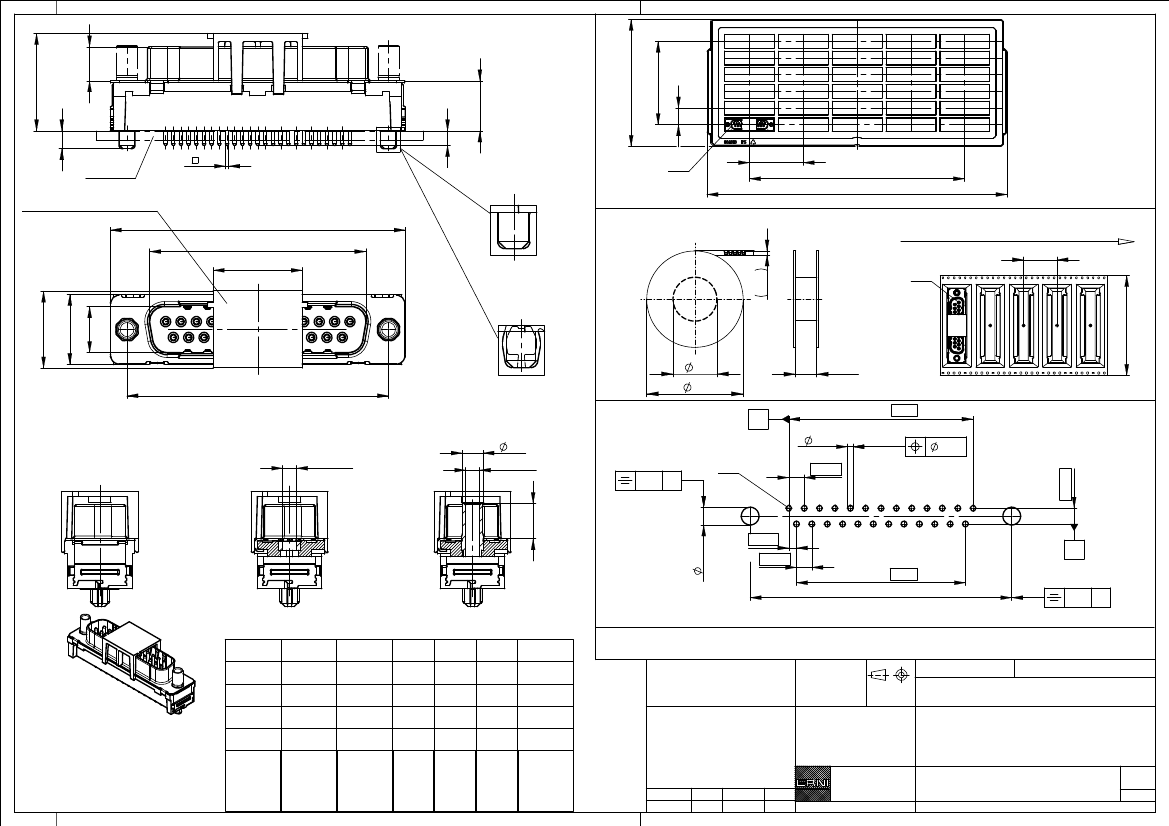

Variante 1

18

0,6

Leiterplatte

version 1

pcb

Bestückung kraftlos

Pin 1

58

4 x 58 = 232

powerless assembly

53

±0,3

38,9

+0,2

hood only on version 1

Ansaughaube nur bei Version 1

max. 325

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

Verpackt in Gurtverpackung

-

Tape on Reel Packaging

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

Abspulrichtung -

Reel

16

version 2

12,6

±0,3

+0,2

Bestückung mit Kraft

assembly with force

21,2

Variante 2

150

47

±0,1

330

t li

ich

it n bl e

Ze il a

ur ava

z t

no

72,5

A

1

-0,06

+0,09

ar

erb

ef

Pin 1

off Direction

24

13,8

8,25

ohne /

without

Mutter /

nut

max. Einschraubtiefe 6,4 mm

Bolzen /

bolt

Layoutvorschlag:

3,7

12 x 2,76 = 33,12

(25x)

0,05

2,84

max. Einschraubtiefe 5,5 mm

thread depth max. 6,4 mm

thread depth max. 5,5 mm

recommended layout:

Pin 1

0,05

B

Gewinde

/ thread

M3

/ #4-40

Gewinde

/ thread

M3

/ #4-40

2,76

6,4

3,2

±0,1

1,38

2,76

11 x 2,76 = 30,36

47

±0,05

B

0,05

A

M 1:1

Part marking according to specification 174538

Beschriftung nach Bedruckungsvorschrift 174538

Sonstige Angaben siehe Zeichnung 204625 /

Additional indications according to drawing 204625

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

194078

194079

194080

Anschlussbereich verzinnt

X

#4-40

M3

#4-40

M3

Ident.-Nr.

Variante 2

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

terminal area tin plating

Anforderungsstufe: 2

194081

194082

part-no.

tape &reel

Variante 1

Ident-Nr.

Ident.-Nr.

Variante 1

class: 2

part-no.

tray

part-no.

tray

without

ohne

Mutter

thread

Bolzen Bemerkung

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

C

Index

26.11.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-P 25-THR-2,6-9,0-BA8

TMC-P 25-THR-2,6-9,0-type 8

bolt

remark

www.ERNI.com

Class

144903

TMCP

72

I

version 1

version 2

A3

194082 Related Products

	194082	194081	194078	194079	194080
Description	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	YES	YES	YES	YES	YES
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
MIL compliance	YES	YES	YES	YES	YES
Mixed contacts	NO	NO	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	3/B	3/B	3/B	3/B
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	25	25	25	25
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	-	-	ERNI	ERNI	ERNI
