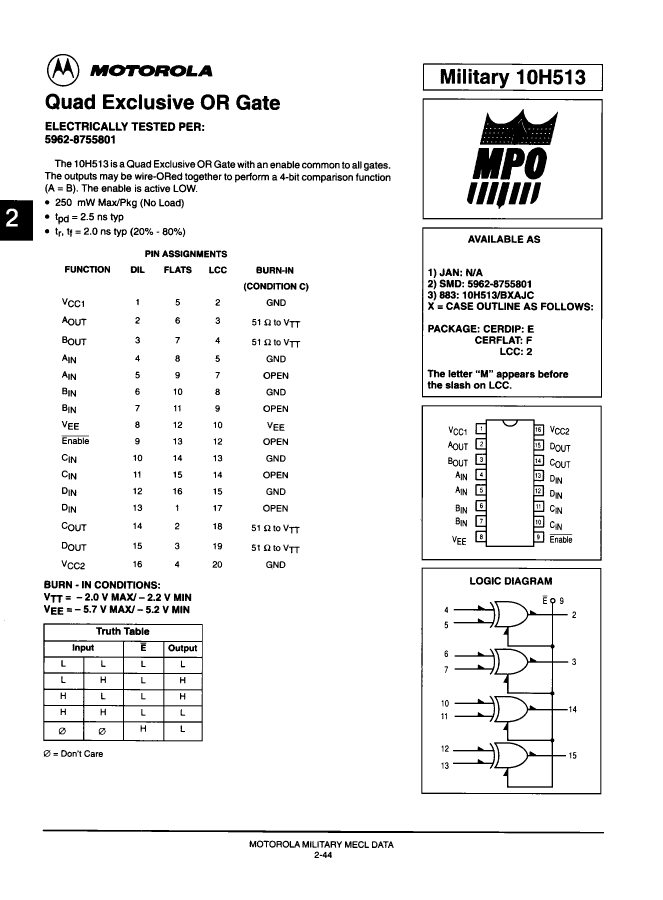

XOR Gate, 10H Series, 4-Func, 2-Input, ECL, CDFP16, CERAMIC, FP-16

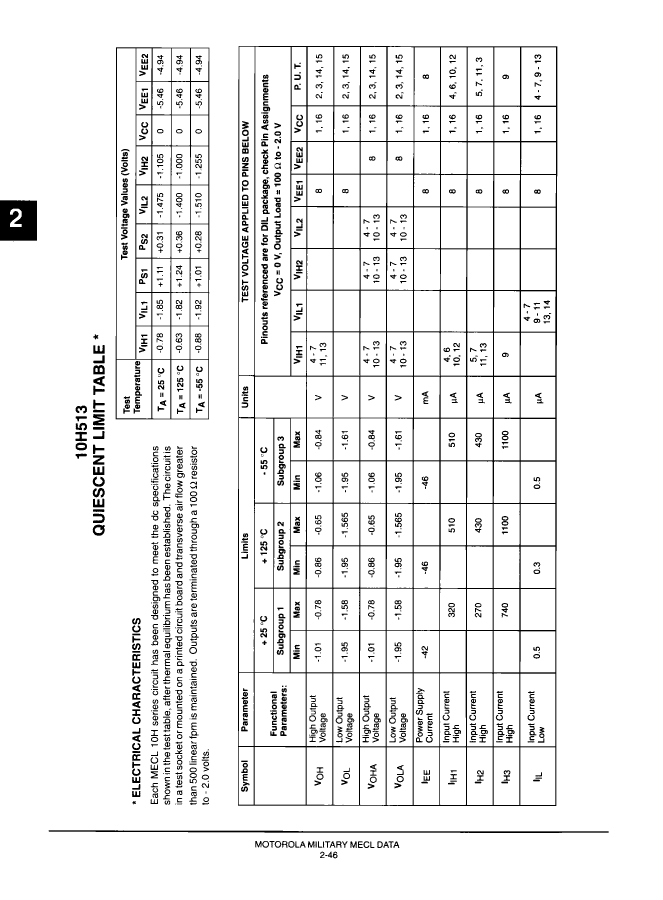

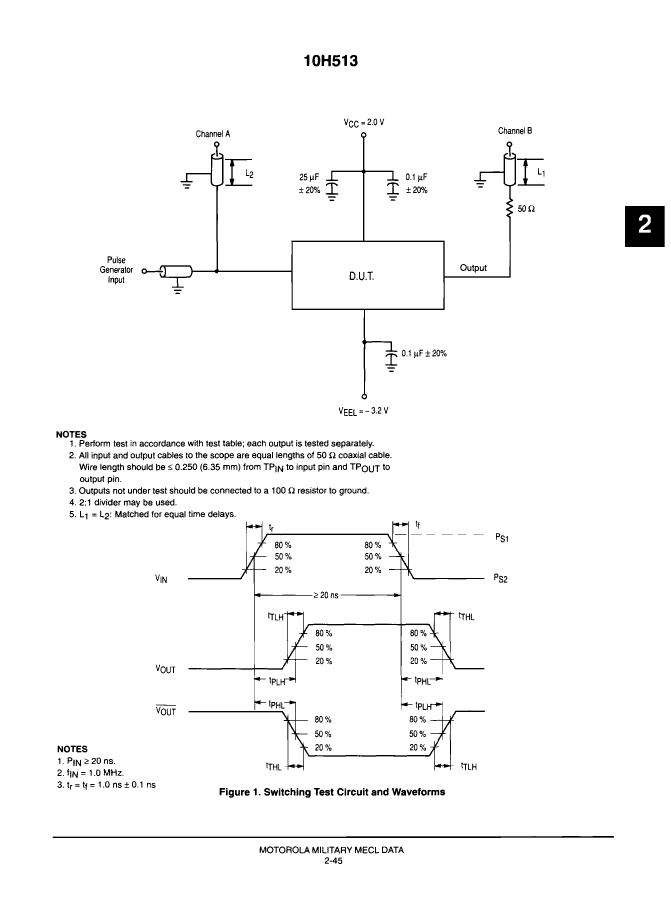

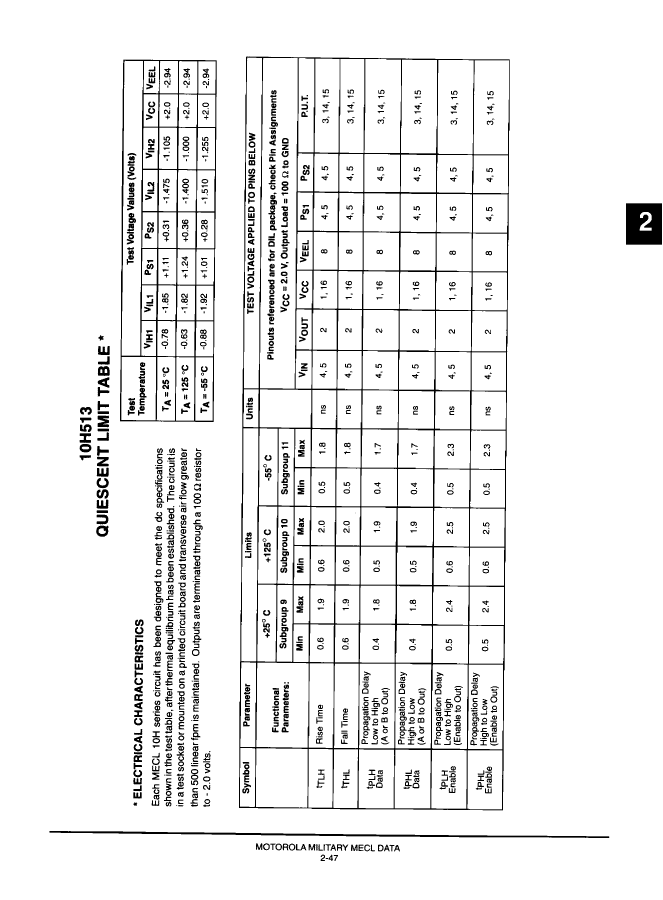

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | DFP, FL14,.3 |
| Reach Compliance Code | unknown |
| Other features | STROBED OUTPUTS |
| series | 10H |
| JESD-30 code | R-GDFP-F16 |
| JESD-609 code | e0 |
| length | 9.65 mm |
| Logic integrated circuit type | XOR GATE |
| Number of functions | 4 |
| Number of entries | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | OPEN-EMITTER |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP |
| Encapsulate equivalent code | FL14,.3 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Maximum supply current (ICC) | 46 mA |
| propagation delay (tpd) | 1.9 ns |
| Certification status | Not Qualified |
| Schmitt trigger | NO |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 2.15 mm |
| surface mount | YES |
| technology | ECL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 6.415 mm |
| Base Number Matches | 1 |
| 5962-8755801FA | GRM0222C1H5R8BA03 | GRM0222C1H6R3DA03 | 5962-87558012A | 5962-8755801EA | |
|---|---|---|---|---|---|
| Description | XOR Gate, 10H Series, 4-Func, 2-Input, ECL, CDFP16, CERAMIC, FP-16 | Chip Multilayer Ceramic Capacitors for General Purpose | Chip Multilayer Ceramic Capacitors for General Purpose | XOR Gate, 10H Series, 4-Func, 2-Input, ECL, CQCC20, CERAMIC, LCC-20 | XOR Gate, 10H Series, 4-Func, 2-Input, ECL, CDIP16, CERDIP-16 |
| Is it Rohs certified? | incompatible | - | - | incompatible | incompatible |
| package instruction | DFP, FL14,.3 | - | - | QCCN, LCC20,.35SQ | DIP, DIP16,.3 |
| Reach Compliance Code | unknown | - | - | unknown | unknown |
| Other features | STROBED OUTPUTS | - | - | STROBED OUTPUTS | STROBED OUTPUTS |
| series | 10H | - | - | 10H | 10H |
| JESD-30 code | R-GDFP-F16 | - | - | S-CQCC-N20 | R-GDIP-T16 |
| JESD-609 code | e0 | - | - | e0 | e0 |
| length | 9.65 mm | - | - | 8.885 mm | 19.49 mm |
| Logic integrated circuit type | XOR GATE | - | - | XOR GATE | XOR GATE |
| Number of functions | 4 | - | - | 4 | 4 |
| Number of entries | 2 | - | - | 2 | 2 |
| Number of terminals | 16 | - | - | 20 | 16 |
| Maximum operating temperature | 125 °C | - | - | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | - | - | -55 °C | -55 °C |
| Output characteristics | OPEN-EMITTER | - | - | OPEN-EMITTER | OPEN-EMITTER |
| Package body material | CERAMIC, GLASS-SEALED | - | - | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP | - | - | QCCN | DIP |
| Encapsulate equivalent code | FL14,.3 | - | - | LCC20,.35SQ | DIP16,.3 |
| Package shape | RECTANGULAR | - | - | SQUARE | RECTANGULAR |
| Package form | FLATPACK | - | - | CHIP CARRIER | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | - | NOT SPECIFIED | NOT SPECIFIED |
| Maximum supply current (ICC) | 46 mA | - | - | 46 mA | 46 mA |
| propagation delay (tpd) | 1.9 ns | - | - | 1.9 ns | 1.9 ns |
| Certification status | Not Qualified | - | - | Not Qualified | Not Qualified |
| Schmitt trigger | NO | - | - | NO | NO |
| Filter level | 38535Q/M;38534H;883B | - | - | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B |
| Maximum seat height | 2.15 mm | - | - | 1.9 mm | 5.08 mm |
| surface mount | YES | - | - | YES | NO |
| technology | ECL | - | - | ECL | ECL |
| Temperature level | MILITARY | - | - | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | - | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT | - | - | NO LEAD | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | - | - | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | - | - | QUAD | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | - | NOT SPECIFIED | NOT SPECIFIED |
| width | 6.415 mm | - | - | 8.885 mm | 7.62 mm |
| Base Number Matches | 1 | - | - | 1 | 1 |
