20021612-00010T8LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 20021612-00010T8LF

20021612-00010T8LF: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

20021612-00010T8LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	20021612-00010T8LF	-	-	View	Buy Now

20021612-00010T8LF Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle, LEAD FREE

20021612-00010T8LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
body width	0.22 inch
subject depth	0.326 inch
body length	0.821 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	20021612
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

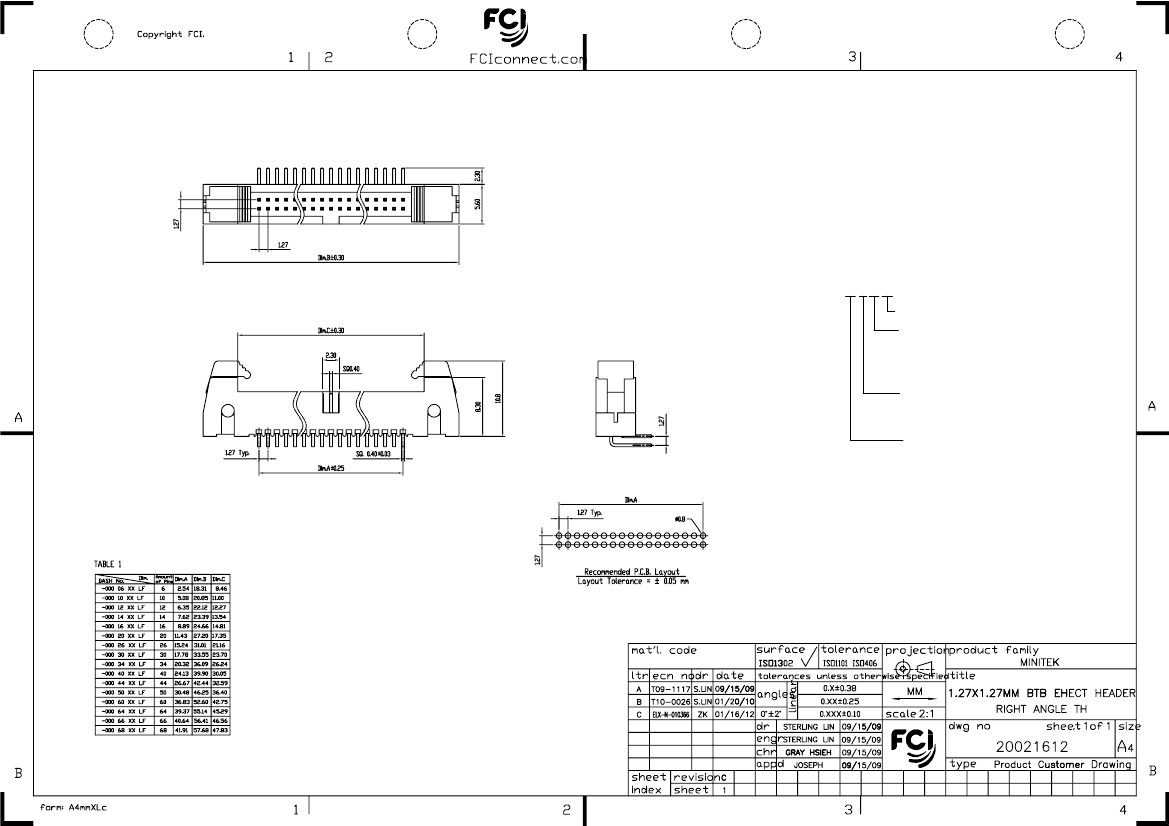

Preview

Download Datasheet

View All

NOTE:

1. MATERIAL,

HOUSING: HIGH TEMP PLASTIC, UL94-V0,BLACK

TERMINAL: COPPER ALLOY , SQ=0.40±0.03MM

2. FINISH:

TERMINAL: GOLD AT CONTACT,

G/F OVER 1um(40u")MIN Ni OVER ALL

3. SPEC.:

PRODUCT SPEC: GS-12-629

PACKING SPEC: GS-14-1420

4. THE HSG. WILL WITHSTAND EXPOSURE TO 260C

PEAK TEMP. FOR 5 SEC. IN A WAVE SOLDER APPLICATION

WITH A PCB.

5. PRODUCT NUMBERING:

20021612 - 0 0 0 XX X X LF

LEAD FREE

PLATING:

1:GOLD FLASH ALL OVER

4:0.25um(10U")GOLD AT CONTACT

8:0.76um(30U")GOLD AT CONTACT

9:1u" GOLD OVER 30u" PdNi AT CONTACT

PACKING

T: TUBE

PIN COUNT

SEE TABLE 1

PDS: Rev :C

STATUS:Released

Printed: Mar 02, 2012
