3016B: DescriptionRF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size38KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric View All

3016B Overview

RF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

3016B Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT PACKAGE
Reach Compliance Code	unknown
Other features	SMA-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

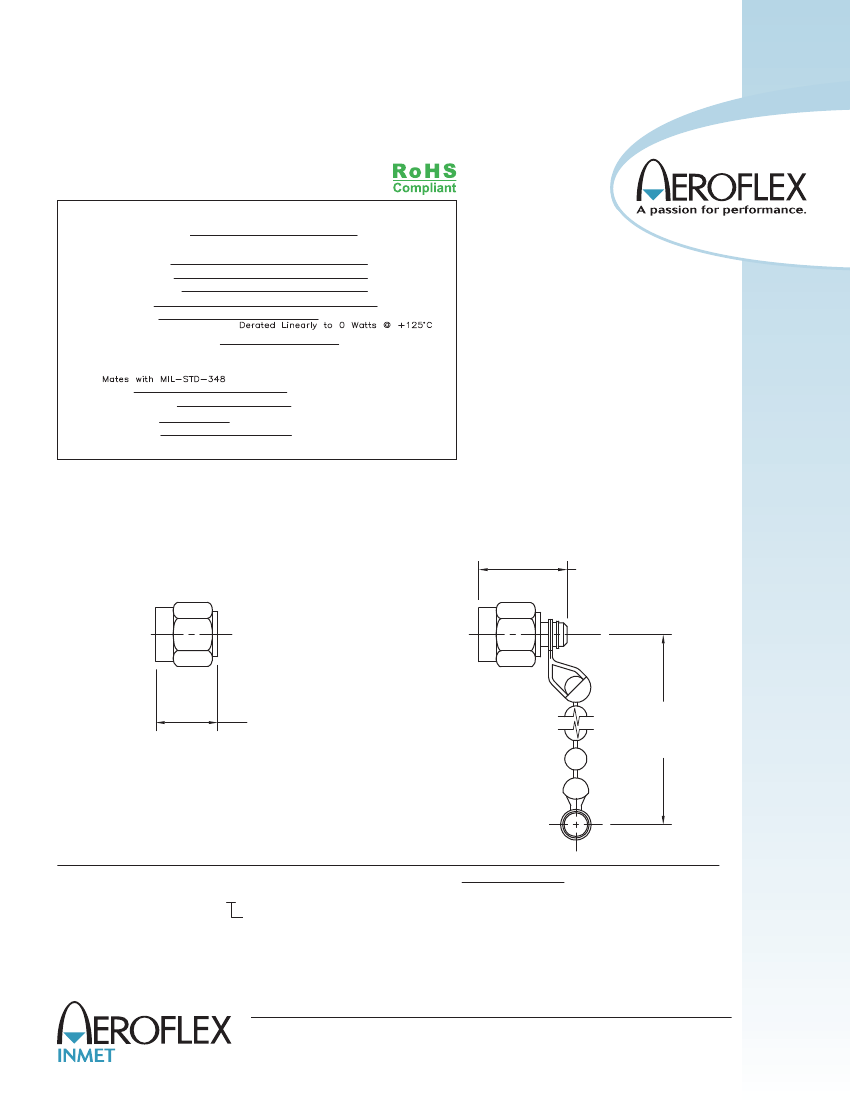

Terminations

SMA, up to 18 GHz, 1 Watt

SPECIFICATIONS:

Models: 3016B, 3016BC

Electrical:

Frequency Range

VSWR

DC - 8 GHz

8 - 12.4 GHz

12.4 - 18 GHz

Impedance

Input Power

Operating Temp Range

DC - 18 GHz

1.10:1 Max.

1.15:1 Max.

1.20:1 Max.

50 Ohms

1 Watt Avg. @ +25°C

-55°C to +125°C

Mechanical:

SMA Connectors

Body

Coupling Nut

Conductors

Bead Chain

Passivated Stainless Steel

Gold Plated Beryllium Copper or Brass

Passivated Stainless Steel

Model Number:

3016B

SMA Male Connector

Model Number:

3016BC

SMA Male Connector

.50±.05

[12.70±1.27]

.35±.05

[8.89±1.27]

3.5 [89]

Approximate

Bead Chain Length

CHAIN DETAIL

HOW TO ORDER:

Model Number:

3016BX

Style

= No Chain

C = Chain Included

Ordering Examples:

Model Number:

3016BC

DC - 18 GHz; SMA Male; Chain Included

Model Number:

3016B

DC - 18 GHz; SMA Male: No Chain

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

3016B: REV A

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com
