ECU Connectors and Packagings
I/O connector system
DCK / 4.8 mm terminals
29 / 42 way sealed connector

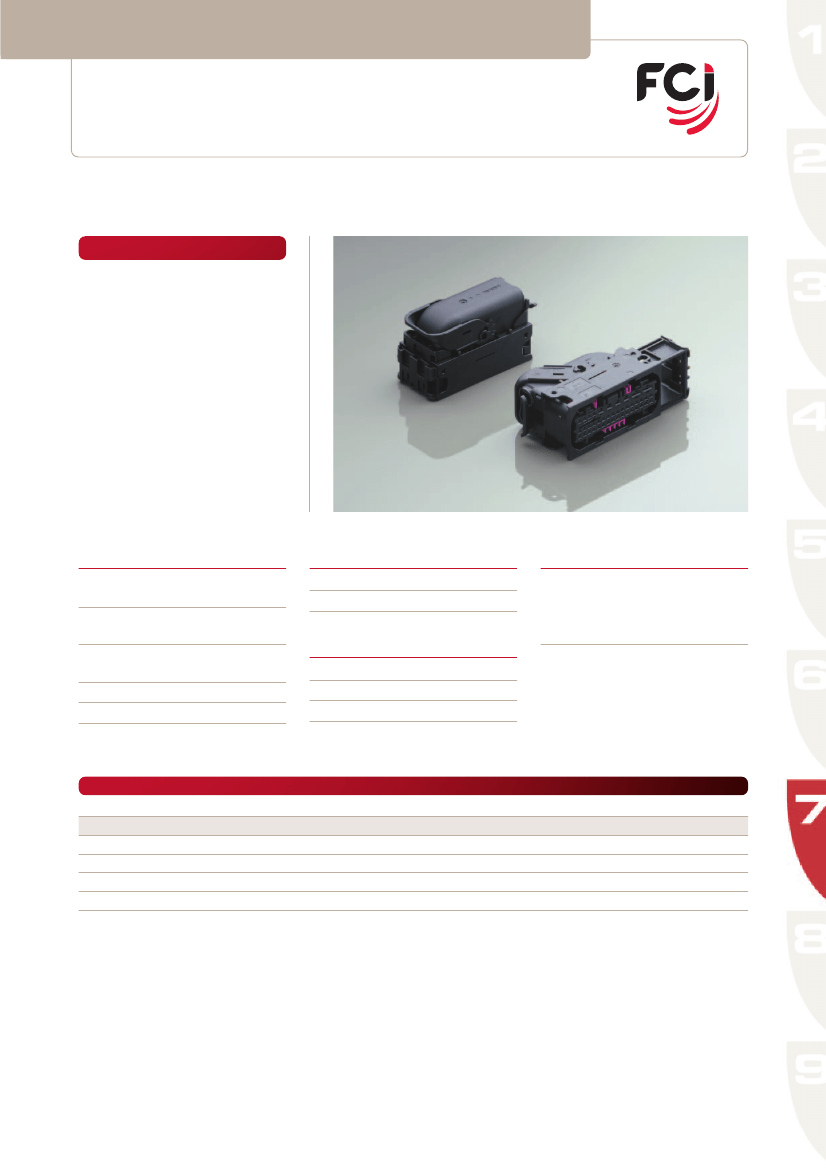

Features
•
High density connector with
•
•
•
•
•
integrated mating device
Terminal position assurance (TPA)
Circumferential interface seal
Rear sealing ensured by single wire
seal (SWS)
Pre-mounted locking cam
Cable protection cover
Performance characteristics
•
Temperature range:
from –40°C to + 120°C
Construction
•
Housing material:
•
Interface seal:
PBT
Silicone
Connector compatibility
•
Useable terminals:
- DCK 1.5 mm and 2.8 mm female
terminals
- 4.8 mm female terminals
•
Contact retention force:
•
Contact insertion force:
> 55 N
for 1.5 mm / > 80 N for 2.8 mm
< 10 N
for 1.5 mm / < 15 N for 2.8 mm
< 150 N
IP 67
Tooling
•
TPA removal tool:
•
Cavity plug:
consult us
•
Connector mating force:
•
Sealing protection:
•
Terminal removal tool: consult us
consult us
Part Number
3 043 13 11
3 043 13 21
3 043 13 41
3 043 13 71
3 043 13 81
3 043 13 91
Pos.
42
42
42
42
29
29
Terminal size
36x[1.5]+4x[2.8]+4x[4.8] mm
36x[1.5]+4x[2.8]+4x[4.8] mm
36x[1.5]+4x[2.8]+4x[4.8] mm
36x[1.5]+4x[2.8]+4x[4.8] mm
25x[1.5]+2x[2.8]+2x[4.8] mm
25x[1.5]+2x[2.8]+2x[4.8] mm
Type
Female Housing
Female Housing
Female Housing
Female Housing
Female Housing
Female Housing
Cable exit
Left
Right
Left
Right
Right
Left
Slider
Right
Left
Left
Right
Right
Left
Colour
Black
Black
Black
Black
Black
Black
7.54
Rev 01/04
ECU Connectors and Packagings
I/O connector system
DCK / 4.8 mm terminals
29 / 42 way sealed connector

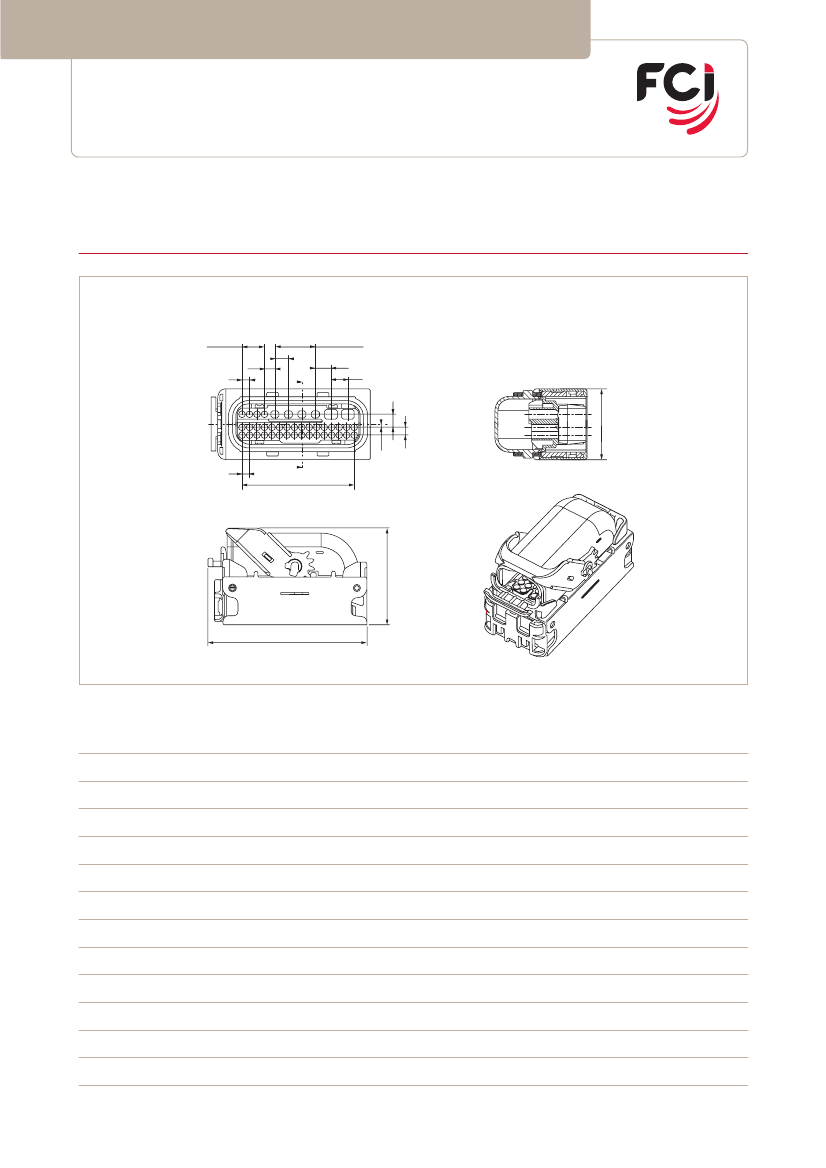

Dimensional characteristics
Female housing
3x4=12
7.2
5.7
4
A
3x7.2=21.6
8.25
9.3
SECTION A-A
85.2
Notes :
51.75
51.75
4
A
60
1.7
4
37.8
7
7.55
Rev 01/04
