32A100-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 32A100-1

32A100-1: DescriptionRF Connector Adapter, SMB-SMB, Male-Male, Jack; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

32A100-1 Overview

RF Connector Adapter, SMB-SMB, Male-Male, Jack

32A100-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Reach Compliance Code	unknown
Adapter type	SMB-SMB
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	TFE
MIL compliance	NO
Manufacturer's serial number	SMB
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Base Number Matches	1

Preview

Download Datasheet

View All

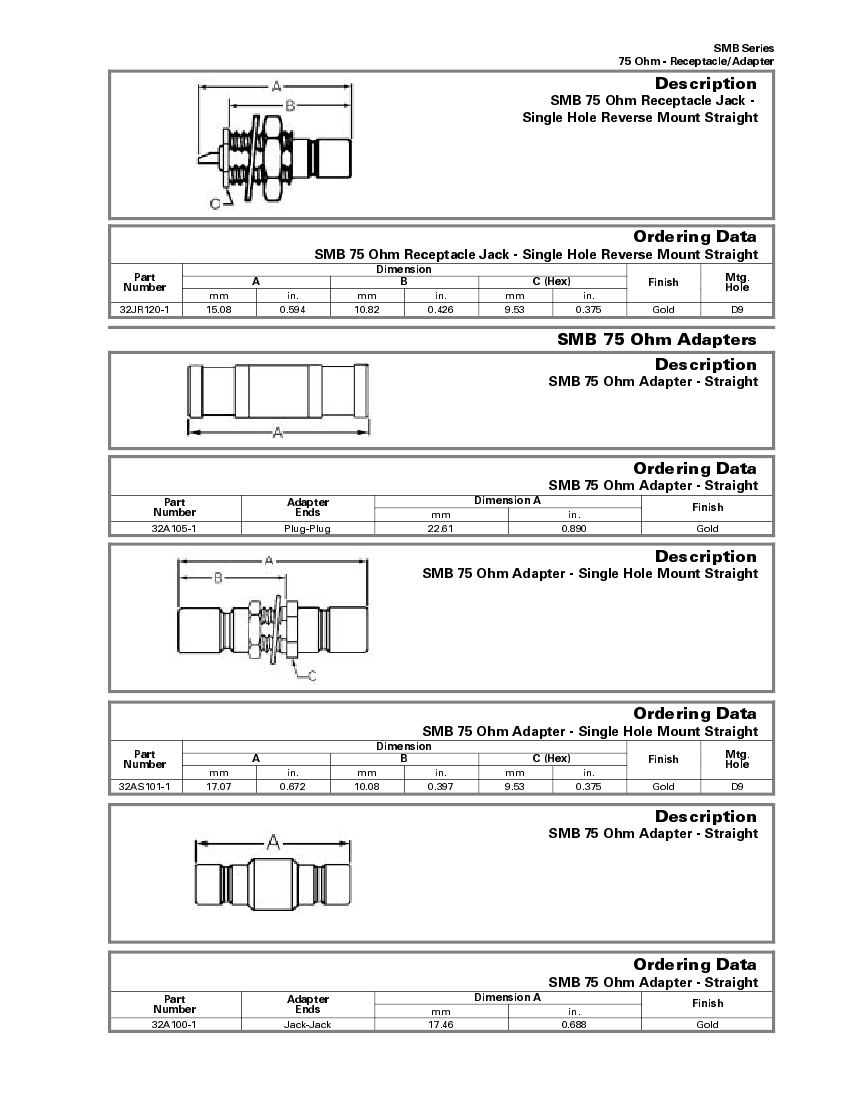

SMB Series

75 Ohm - Receptacle/Adapter

SMB Series

SMB 75 Ohm Receptacle Jack -

75 Ohm -

Mount Straight

Receptacle/Adapter

Single Hole Reverse

Description

RF/Coaxial

SMB 75 Ohm Receptacle Jack - Single Hole Reverse Mount Straight

Ordering Data

Finish

32JR120-1

Part

Number

15.08

in.

0.594

10.82

Dimension

in.

0.426

9.53

C (Hex)

SMB 75 Ohm Adapter - Straight

SMB 75 Ohm Adapters

Description

Ordering Data

Finish

in.

0.375

Gold

Mtg.

Hole

32A105-1

Part

Number

Plug-Plug

Adapter

Ends

22.61

Dimension A

SMB 75 Ohm Adapter - Straight

in.

0.890

SMB 75 Ohm Adapter - Single Hole Mount Straight

Description

Gold

32AS101-1

Part

Number

17.07

in.

0.672

10.08

Dimension

SMB 75 Ohm Adapter - Single Hole Mount Straight

Ordering Data

Finish

in.

0.397

9.53

C (Hex)

in.

0.375

Gold

Mtg.

Hole

SMB 75 Ohm Adapter - Straight

Description

32A100-1

Part

Number

Jack-Jack

Adapter

Ends

17.46

Dimension A

SMB 75 Ohm Adapter - Straight

Ordering Data

Finish

in.

0.688

Gold

RF/Coaxial

30-117

32A100-1 Related Products

	32A100-1	32AS101-1	32A105-1	32JR120-1
Description	RF Connector Adapter, SMB-SMB, Male-Male, Jack	RF Connector Adapter, SMB-SMB, Panel Mount, Female-Female	RF Connector Adapter, SMB-SMB, Male-Male, Plug	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Reach Compliance Code	unknown	unknown	unknown	unknow
Characteristic impedance	50 Ω	75 Ω	75 Ω	75 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF SMB CONNECTOR
Contact point gender	MALE-MALE	FEMALE-FEMALE	MALE-MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insertion loss	0.25 dB	0.3 dB	0.3 dB	0.3 dB
insulator material	TFE	PTFE	PTFE	PTFE
MIL compliance	NO	NO	NO	YES
Manufacturer's serial number	SMB	SMB	SMB	SMB
Maximum operating frequency	4 GHz	4 GHz	4 GHz	4 GHz
Panel mounting	NO	YES	NO	YES
Adapter type	SMB-SMB	SMB-SMB	SMB-SMB	-
Body/casing type	JACK	-	PLUG	RECEPTACLE
Base Number Matches	1	1	1	-
Other features	-	INSERTION LOSS MAX AT 1.5GHZ	INSERTION LOSS MAX AT 1.5GHZ	INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ
voltage standing wave ratio	-	1.46	1.46	1.46
