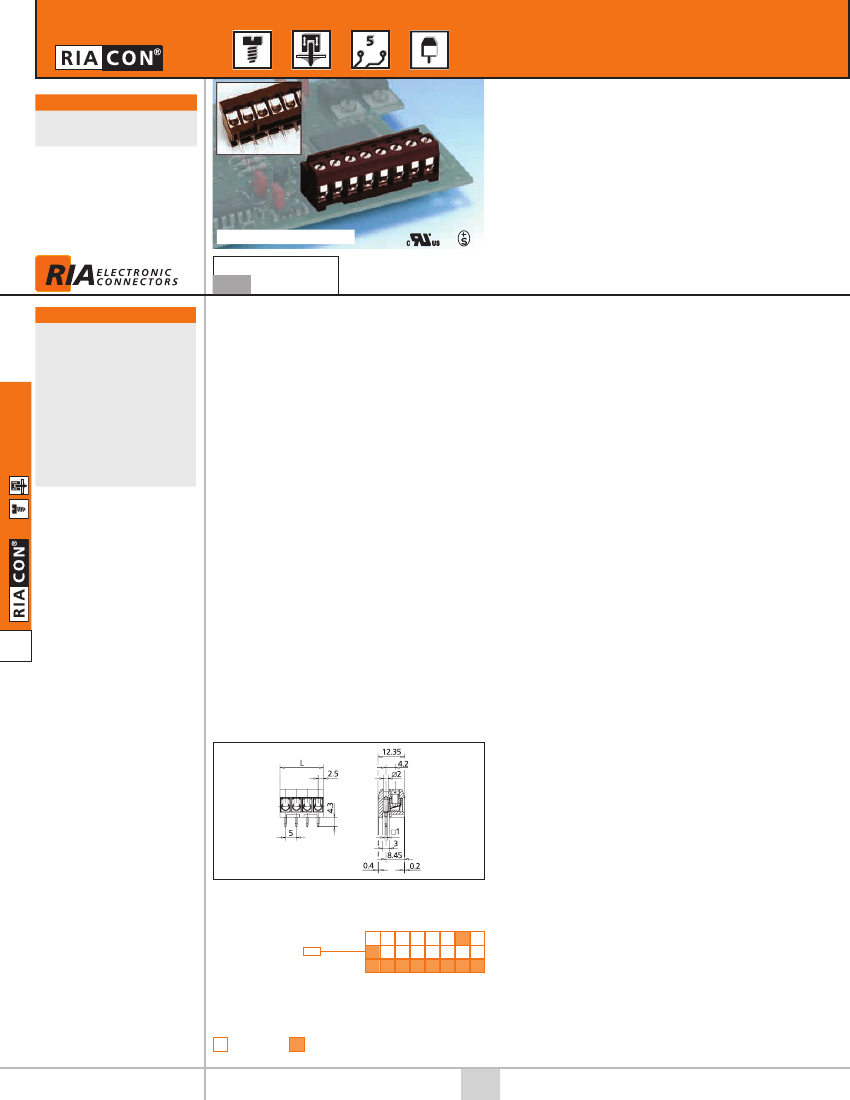

mm to inch
1 inch = 25.4 mm
1 mm = .040 inches
Designed to IEC 60664-1
Type
108
Accessories
for
Type 108
Coding pin 710121
Coding pin 710122
Page J-7
Coding set 716846
Page J-8
Latching flange right
710084
Latching flange left
710085
Page J-3
pins
factory inserted
in terminal body
Electrical Data
Voltage
Current
Wire range
Screw torque
Wire strip length
Contact resistance
300 V
10 A
12 - 28 AWG
7 lbs. - in
6 mm
≤
10 mΩ per circuit
Mechanical Data
Housing
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
brown
brass, nickel plated
tin bronze, tin plated
M3, steel,
nickel over copper plating
optional: stainless steel
- consult factory
1 mm square
silver plating
nickel plating
2 to 24
Color
Terminal
Wire protector
Screw
Contact pin
D
Pole sizes
Additional material data - pages DA-3 to DA-5
Dimensions (mm)
L = (circuits - 1) x centerline + 5
Part Numbers
Type 108
Complete the part number
by adding the pole size.
centerline 5 mm
Part No.
311081
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
01 standard
08 Available on demand. Minimum order
quantity 3000 poles per item.
RIA electronic, Inc.
430 Industrial Way West, Eatontown, NJ 07724
phone 1-888-722-5625
•
fax 732-389-9066
•
www.riaelectronic.com
DB-6
Subject to technical changes and printing errors.
