68
Note for wire range
A

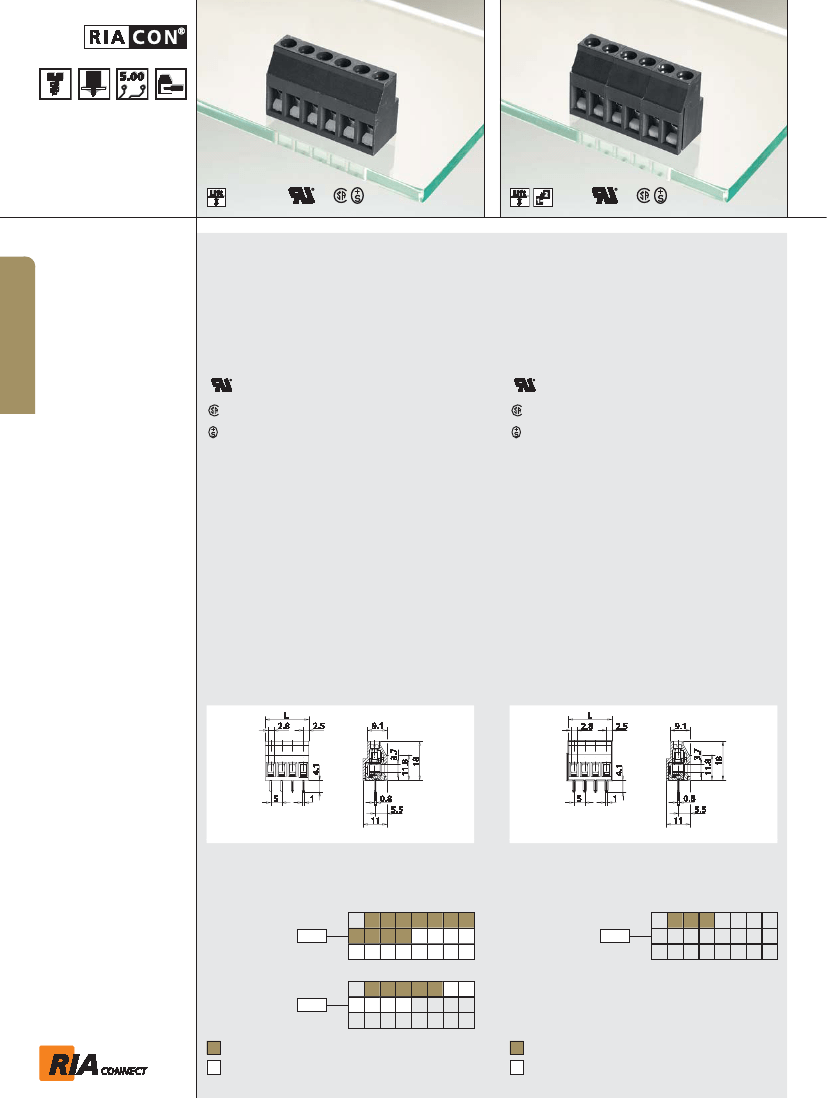

Type 071
Screw type terminal block, solderable, centereline
5 mm / 0.197 inches, horizontal wire entry, lift system
Type 072
Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, horizontal wire entry, lift system,
modular
Additional wire sizes and/or
combinations of same size
wires as follows:
Type 71
and
Type 72
##
2 No. 22 - 16 AWG
(field-wiring);
2 No. 30 - 16 AWG or
1 No. 30 - 12 AWG
(factory-wiring)
Technical Data
V / A / AWG
V / A / AWG
300 / 20 / 22 - 12
300 / 20 / 22 - 12
Technical Data
V / A / AWG
V / A / AWG
300 / 20 / 22 - 12
300 / 20 / 22 - 12
0.33 - 2.5 mm² 250 V / 4 kV / 16 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 4 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
320
800
800
Rated test voltage
4
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
8 mm
Solder pin dimension
0.8 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.4 mm
Solder pin length
4.1 mm
Pole size
2 - 24
Color
black
Dimensions in mm
1 mm = 0.0394 in.
0.33 - 2.5 mm² 250 V / 4 kV / 16 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 4 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
320
800
800
Rated test voltage
4
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
8 mm
Solder pin dimension
0.8 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.4 mm
Solder pin length
4.1 mm
Pole size
2-4
Color
black
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
Part numbers (P/N)
Type 071
centerline 5 mm / 0.197 inches
(information: page 56)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 072
(information: page 56)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
centerline 5 mm / 0.197 inches
02 03 04
P/N
310711
Type 071
centerline 10 mm / 0.394 inches
P/N
310721
02 03 04 05 06 07 08
09 10 11 12
P/N
310712
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
