30A103-4: DescriptionRF Connector Adapter, BNC-BNC, Cable Mount, Female-Male, Jack-plug; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

30A103-4 Overview

RF Connector Adapter, BNC-BNC, Cable Mount, Female-Male, Jack-plug

30A103-4 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Reach Compliance Code	unknown
Adapter type	BNC-BNC
Body/casing type	PLUG-JACK
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	BNC-TRIAX
Options	GENERAL PURPOSE
Panel mounting	NO
Base Number Matches	1

Preview

Download Datasheet

View All

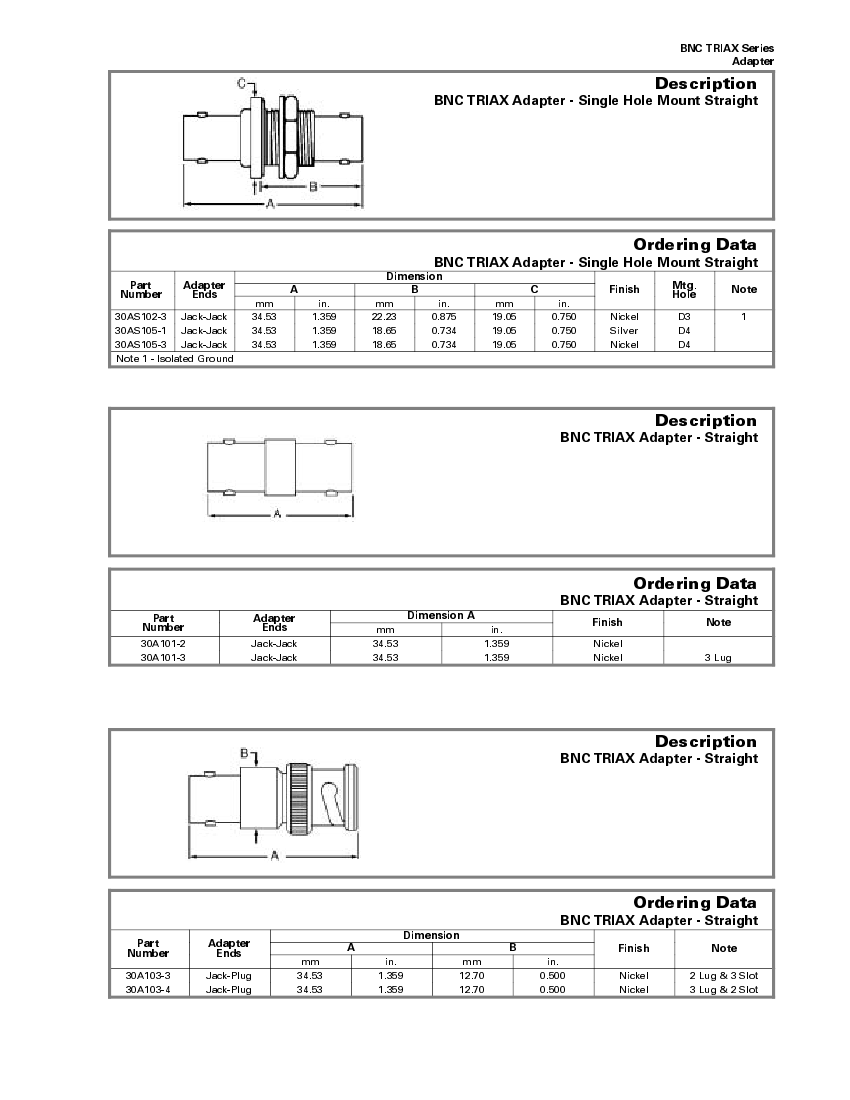

BNC TRIAX Adapter - Single Hole Mount Straight

Adapter

Description

BNC TRIAX Series

Adapter

RF/Coaxial

30AS102-3 Jack-Jack

30AS105-1 Jack-Jack

30AS105-3 Jack-Jack

Note 1 - Isolated Ground

Part

Number

Adapter

Ends

mm

34.53

A

in.

1.359

mm

22.23

18.65

Dimension

B

BNC TRIAX Adapter - Single Hole Mount Straight

Ordering Data

Mtg.

Hole

Note

in.

0.875

0.734

mm

19.05

C

in.

0.750

Finish

Nickel

Silver

Nickel

D3

D4

1

BNC TRIAX Adapter - Straight

Description

30A101-2

30A101-3

Part

Number

Jack-Jack

Adapter

Ends

mm

34.53

Dimension A

BNC TRIAX Adapter - Straight

Ordering Data

Note

in.

1.359

Finish

Nickel

3 Lug

BNC TRIAX Adapter - Straight

Description

30A103-3

30A103-4

Part

Number

Jack-Plug

Adapter

Ends

mm

34.53

A

Dimension

BNC TRIAX Adapter - Straight

B

Ordering Data

Note

in.

1.359

mm

12.70

in.

0.500

Finish

Nickel

2 Lug & 3 Slot

3 Lug & 2 Slot

RF/Coaxial

30-43

30A103-4 Related Products

	30A103-4	30AS102-3	30AS105-1	30AS105-3	30A101-2	30A101-3	30A103-3
Description	RF Connector Adapter, BNC-BNC, Cable Mount, Female-Male, Jack-plug	RF Connector Adapter, BNC-BNC, Panel Mount, Cable Mount, Female-Female, Jack	RF Connector Adapter, BNC-BNC, Panel Mount, Female-Female, Jack	RF Connector Adapter, BNC-BNC, Panel Mount, Cable Mount, Female-Female, Jack	RF Connector Adapter, BNC-BNC, Female-Female, Jack	RF Connector Adapter, BNC-BNC, Female-Female, Jack	RF Connector Adapter, BNC-BNC, Cable Mount, Female-Male, Jack-plug
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Adapter type	BNC-BNC	BNC-BNC	BNC-BNC	BNC-BNC	BNC-BNC	BNC-BNC	BNC-BNC
Body/casing type	PLUG-JACK	JACK	JACK	JACK	JACK	JACK	PLUG-JACK
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE	FEMALE-FEMALE	FEMALE-FEMALE	FEMALE-FEMALE	FEMALE-FEMALE	FEMALE-FEMALE	MALE-FEMALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	BNC-TRIAX	BNC-TRIAX	BNC-TRIAX	BNC-TRIAX	BNC-TRIAX	BNC-TRIAX	BNC-TRIAX
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	YES	YES	YES	NO	NO	NO
Base Number Matches	1	1	1	1	1	1	1
