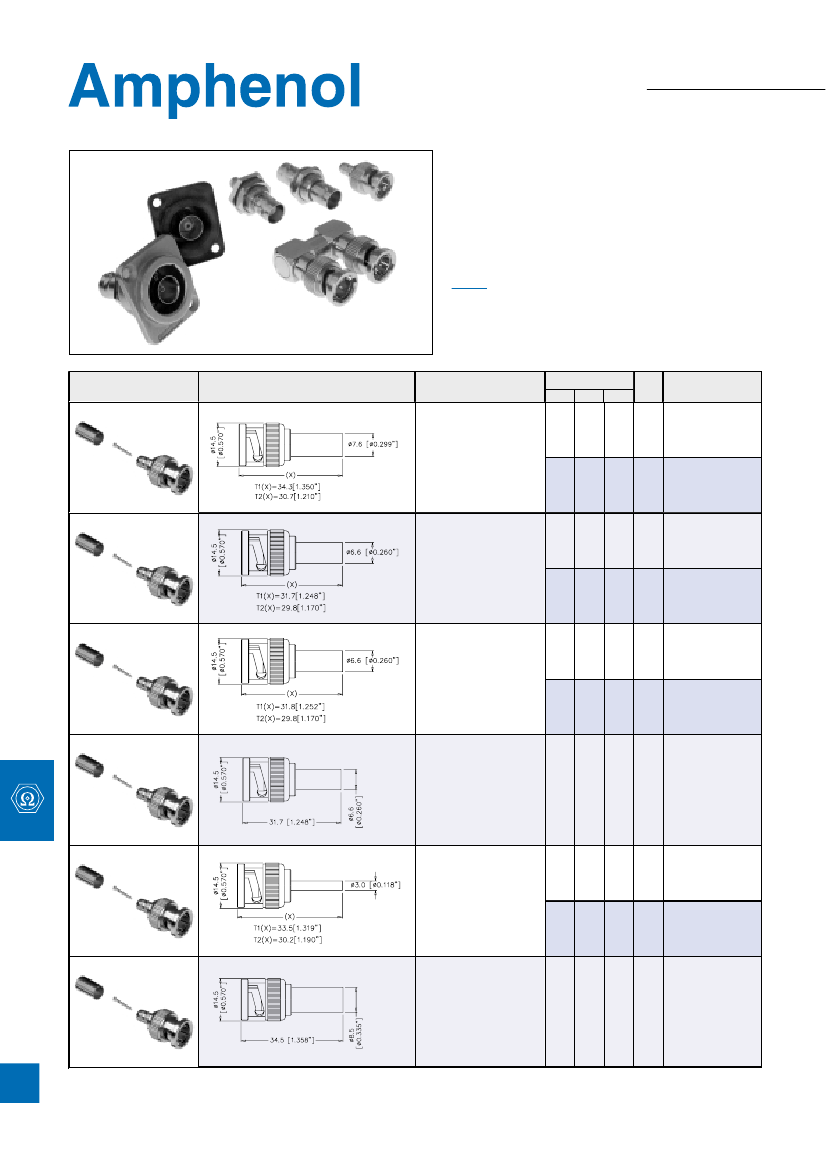

BNC 75Ω CONNECTORS
Amphenol manufacture a large range of connectors to suit cables other
than those listed below, for example Belden YR23769 and 46899,
please contact us to discuss your specific requirements.
Assembly Instructions Page 66-67
Specifications: Page 68-69
Panel Cutouts: Page 70
NOTES
CAI = Cable Assembly Instructions
PLT = Plating Code (Refer Specifications)
INS. = Cable Insulator Material (Refer Specifications)
PRODUCT - FIGURE
DRAWING
Dimensions in mm (inches)
DESCRIPTION &
CABLE TYPE RG-/U
Crimp Plug
RG-6 Type .295” O.D. max.
Belden 9248, 1694A
(Single Shield)
NOTES
CAI
PLT.
INS.
75Ω
TYPE
PART NUMBER
31-70000
C31
P15
D1
T1
C32
P7
D26
T2
31-71000 - RFX
Crimp Plug
59, 62
Belden 8241, 8263, 8279,
9209
C31
P16
D1
T1
31-70008
C32
P7
D26
T2
31-71008 - RFX
Crimp Plug
59 Type (20AWG CC)
Belden 1426A, 1505A,
9100, 9278
C31
P15
D1
T1
31-70008 - 3000
C32
P7
D26
T2
31-71008 - 1RFX
Crimp Plug
59 Type centre conductor,
Belden 1505A, 1426A,
9659, 9259, 9240, 8212,
9274, 9275, 9100
C31
P15
D1
T1
31-70008 - 1000
Crimp Plug
Miniature Coax,
179, 187
C31
P15
D1
T1
31-70013
C32
P17
D26
T2
31-71013 - RFX
Crimp Plug
Double Shield 59 (20 AWG
CC)
C31
P15
D1
T1
31-70222
62
ENTERTAINMENT INTERCONNECT CATALOGUE
- Amphenol Australia Pty Ltd
Telephone 61 3 8796 8888 Fax 61 3 8796 8801
www.amphenol.com.au

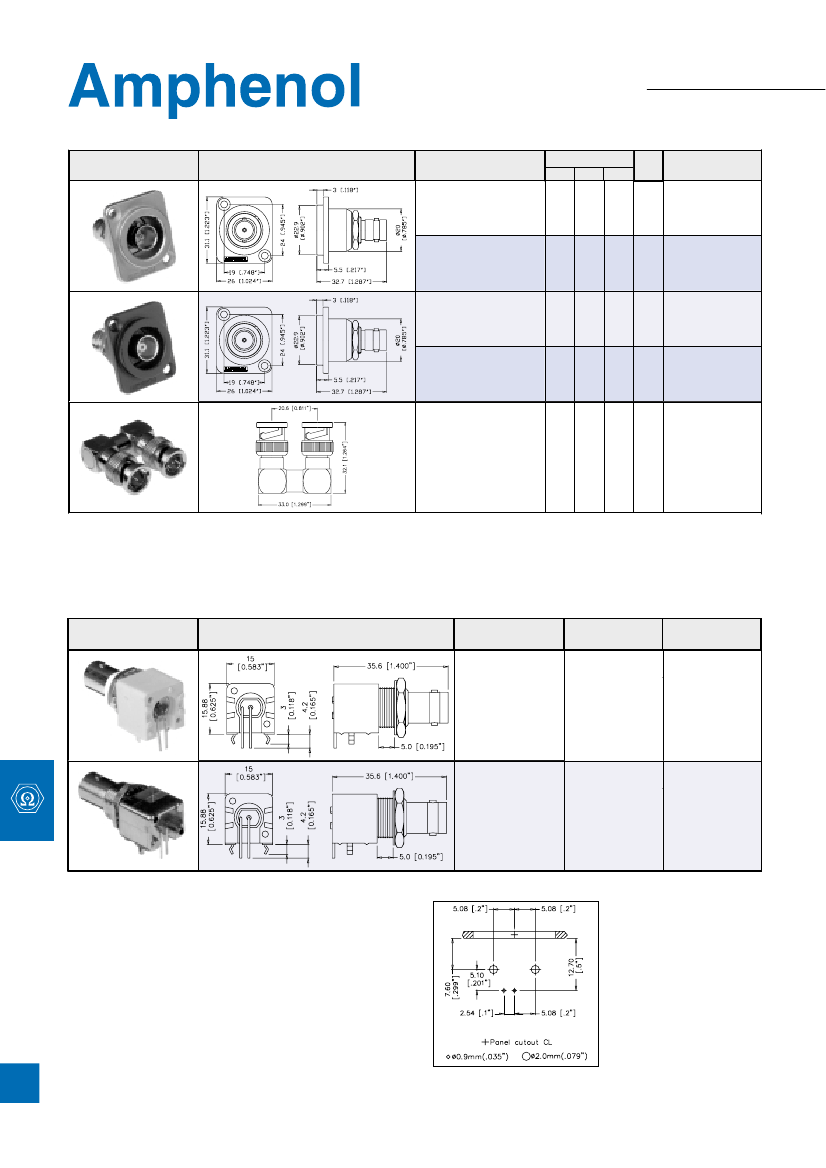

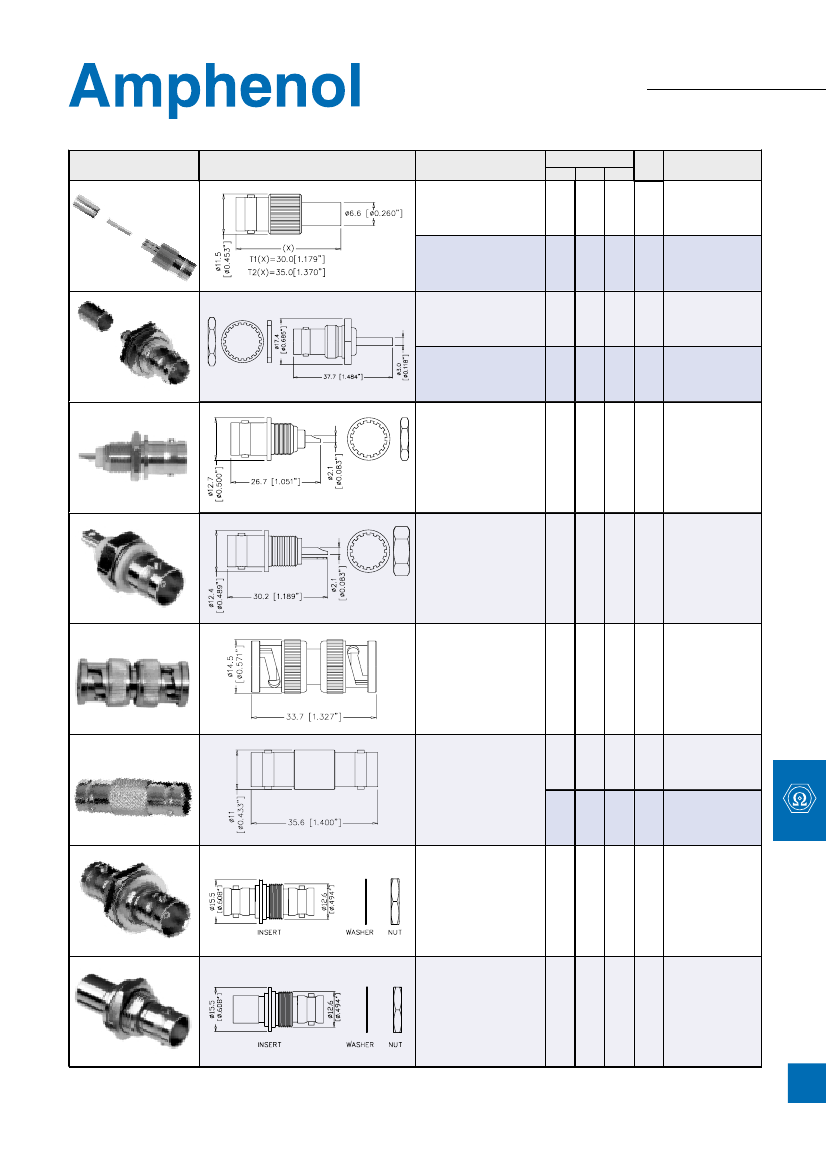

BNC 75Ω CONNECTORS
PRODUCT - FIGURE
DRAWING
Dimensions in mm (inches)
DESCRIPTION &
CABLE TYPE RG-/U
Crimp Jack
59, Belden 8241, 8263
Crimp Jack
179, 187
Crimp Bulkhead Jack
179, 187
Crimp Bulkhead Jack
59, Belden 8241, 8263
Solder Receptacle
Front Mount
NOTES
CAI
PLT.
INS.
75Ω
TYPE
PART NUMBER
31-70009
C31
P17
D1
T1
C32
P7
D23
T2
31-71014 - RFX
C31
P17
D1
T1
31-70016
C32
P15
D1
T2
31-71011
-
P7
D23
T2
31-221 - 75RFX
Solder Receptacle
- Isolated
With Ground Tab
-
P7
D12
T2
31-10-75- RFXG2
Adapter
Plug to Plug - Straight
-
P15
D1
T2
31 - 218 - 75RFX
Adapter
Jack to Jack - Straight
-
P17
D1
T1
31-70019
-
P15
D1
T2
31-219-75
Bulkhead Adapter
-Isolated
Jack to Jack - Straight
Bayonet Lock to Bayonet
Lock
-
P7
D1
T1
AC-BNC-JJA-75
Bulkhead Adapter
-Isolated
Jack to Jack - Straight
Push on to Bayonet Lock
-
P7
D1
T1
AC-BNC-PJA-75
63
ENTERTAINMENT INTERCONNECT CATALOGUE
- Amphenol Australia Pty Ltd
Telephone 61 3 8796 8888 Fax 61 3 8796 8801
www.amphenol.com.au
BNC 75Ω CONNECTORS
PRODUCT - FIGURE
DRAWING
Dimensions in mm (inches)
DESCRIPTION &
CABLE TYPE RG-/U
Bulkhead Adapter -Isolated,
‘D’ Metal Shell Housing
Jack to Jack,Bayonet Lock to
Bayonet Lock, Nickel Finish
Bulkhead Adapter -Isolated,
‘D’ Metal Shell Housing
Jack to Jack,Bayonet Lock to
Bayonet Lock, Black Finish
Bulkhead Adapter -Isolated,
‘D’ Metal Shell Housing
Jack to Jack, Push on to
Bayonet Lock, Nickel Finish
Bulkhead Adapter -Isolated,
‘D’ Metal Shell Housing
Jack to Jack,Push on to
Bayonet Lock, Black Finish
U - Link
Centre to Centre - 20.6 mm
Note:
Custom Sizes
available please contact us.
NOTES
CAI
PLT.
INS.
75Ω
TYPE
PART NUMBER
AC - BNC - JJ - 75
-
P7
D1
T2
-
P7
D1
T2
AC - BNC - JJ - 75B
-
P7
D1
T2
AC - BNC - PJ - 75
-
P7
D1
T2
AC - BNC - PJ - 75B
-
P7
D1
T2
BNC - U-LINK 75*1
NOTE:
Solder versions and 50Ω versions available contact us.
BNC 75Ω RF CONNECTORS FOR PRINTED CIRCUIT BOARD
PRODUCT - FIGURE
DRAWING
Dimensions in mm (inches)
DESCRIPTION
Right Angle PCB
mount jack,
White plastic body
VARIATIONS
Profile Dimension
-15.88 mm
PART NUMBER
31-71047-10RFX
Right Angle PCB
mount jack,
Metal body
Profile Dimension
-15.88 mm
31-71043-RFX
PCB FOOTPRINT
- CONNECTOR SIDE OF PCB
31-71047-10RFX
31-71043-RFX
64
ENTERTAINMENT INTERCONNECT CATALOGUE
- Amphenol Australia Pty Ltd
Telephone 61 3 8796 8888 Fax 61 3 8796 8801
www.amphenol.com.au
