54551020421F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 54551020421F

54551020421F: DescriptionBarrier Strip Terminal Block, 10A, 2.5mm2, 1 Row(s), 1 Deck(s),; CategoryThe connector terminals; File Size461KB，1 Pages; ManufacturerPTR Messtechnik GmbH & Co. KG

Download Datasheet Parametric Compare View All

54551020421F Overview

Barrier Strip Terminal Block, 10A, 2.5mm2, 1 Row(s), 1 Deck(s),

54551020421F Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	STANDARD: UL 94V-0, PA66
Fastening method	SPRING LOADED
Manufacturer's serial number	54551
Installation type	CONNECTOR
Number of layers	1
Rows	1
Number of channels	2
Rated current	10 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	16 AWG
Base Number Matches	1

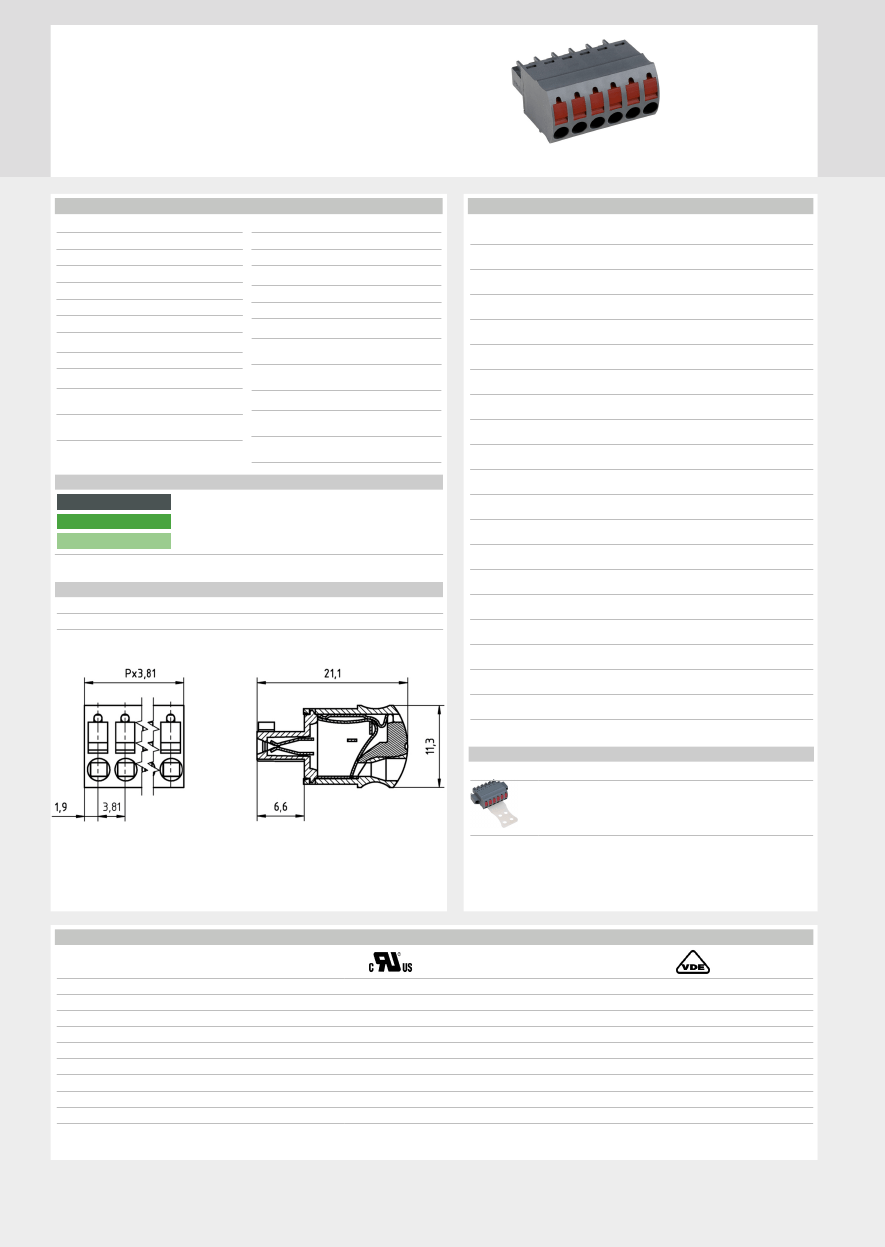

Preview

Download Datasheet

View All

Push-In |

Spacing 3.81 mm

AKZ4551/..KD-3.81-BASALT GREY

Technical Data

Wire sizes

Solid min

Solid max

Stranded (flexible) min

Stranded (flexible) max

Stranded with Ferrule min

Stranded with Ferrule max

0.14 mm²

2.5 mm²

0.14mm²

1.5 mm²

0.25 mm²

1.0 mm²

Order Data (Spacing 3.81 mm)

Insulating Material

Material

Flammability Class

PA 6.6

UL 94 V-0

7.62

11.43

15.24

19.05

22.86

26.67

30.48

34.29

38.10

41.91

45.72

49.53

53.34

57.15

60.96

64.77

68.58

72.39

76.20

AKZ4551/2KD-3.81-BASALT

GREY

AKZ4551/3KD-3.81-BASALT

GREY

AKZ4551/4KD-3.81-BASALT

GREY

AKZ4551/5KD-3.81-BASALT

GREY

AKZ4551/6KD-3.81-BASALT

GREY

AKZ4551/7KD-3.81-BASALT

GREY

AKZ4551/8KD-3.81-BASALT

GREY

AKZ4551/9KD-3.81-BASALT

GREY

AKZ4551/10KD-3.81-BASALT

GREY

AKZ4551/11KD-3.81-BASALT

GREY

AKZ4551/12KD-3.81-BASALT

GREY

AKZ4551/13KD-3.81-BASALT

GREY

AKZ4551/14KD-3.81-BASALT

GREY

AKZ4551/15KD-3.81-BASALT

GREY

AKZ4551/16KD-3.81-BASALT

GREY

AKZ4551/17KD-3.81-BASALT

GREY

AKZ4551/18KD-3.81-BASALT

GREY

AKZ4551/19KD-3.81-BASALT

GREY

AKZ4551/20KD-3.81-BASALT

GREY

Poles

Width (mm)

Article Designation

Article

Number

54551020421 F

54551030421 F

54551040421 F

54551050421 F

54551060421 E

54551070421 E

54551080421 D

54551090421 D

54551100421 D

54551110421 D

54551120421 D

54551130421 D

54551140421 D

54551150421 D

54551160421 D

54551170421 D

54551180421 D

54551190421 D

54551200421 D

200

100

Temperatures

Operating Temperature

Store Temperature

-30 °C - 105 °C

-40 °C - 105 °C

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Dimensions

Stripped Length

11.0 mm

Materials

Contact Spring

Clamp Spring

Copper

Alloy

Stainless

Steel

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Colours

BASALT GREY, RAL 7012

GREEN, RAL 6018

LIGHT GREEN, similar RAL 6018

Colours according to RAL, there may be variations on colour due to production conditions. Special

colours on request.

Counterparts (Spacing 3.81 mm)

Pin Strip

STLZ1550

STLZ1570

STLZ1590

In combination of connectors with different admission data, the lower value is valid.

Accessoires

Figure

Designation

Series AK(Z)4551 with pull

relief

Article Number

Art.-Nr. on request

See pages 282 ff for detail and general accessories and see pages 12/13 concerning services.

Ratings

UseGroup

Rated Voltage

Rated Current

Overvoltage Category

Rated Wire Size

- solid

-stranded

Test Voltage

Pollution Degree

300 V

10 A

300 V

10 A

160 V

10 A

III

min

max

2.5 mm² (10 A)

1.5 mm² (10 A)

2.5 kV

AWG 26-16

1.60 kV

AWG 26-16

1.60 kV

0.14 mm² (3 A)

PTR Messtechnik GmbH & Co. KG

• Gewerbehof 38 • 59368 Werne / Germany

Telefon: +49 (0)2389/7988-0 • Fax: +49 (0)2389/798888 • E-Mail: info@ptr.eu

www.ptr.eu

54551020421F Related Products

	54551020421F	54551030421F	54551050421F	54551040421F
Description	Barrier Strip Terminal Block, 10A, 2.5mm2, 1 Row(s), 1 Deck(s),	Barrier Strip Terminal Block, 10A, 2.5mm2, 1 Row(s), 1 Deck(s),	Barrier Strip Terminal Block, 10A, 2.5mm2, 1 Row(s), 1 Deck(s),	Barrier Strip Terminal Block, 10A, 2.5mm2, 1 Row(s), 1 Deck(s),
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	STANDARD: UL 94V-0, PA66	STANDARD: UL 94V-0, PA66	STANDARD: UL 94V-0, PA66	STANDARD: UL 94V-0, PA66
Fastening method	SPRING LOADED	SPRING LOADED	SPRING LOADED	SPRING LOADED
Installation type	CONNECTOR	CONNECTOR	CONNECTOR	CONNECTOR
Number of layers	1	1	1	1
Rows	1	1	1	1
Number of channels	2	3	5	4
Rated current	10 A	10 A	10 A	10 A
Rated voltage	300 V	300 V	300 V	300 V
safety certificate	UL	UL	UL	UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK
Conductor cross section	2.5 mm2	2.5 mm2	2.5 mm2	2.5 mm2
Wire gauge	16 AWG	16 AWG	16 AWG	16 AWG
Base Number Matches	1	1	1	-
Maker	-	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG
