3112-NM: DescriptionRF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size38KB，1 Pages; ManufacturerCobham PLC; Environmental Compliance

Download Datasheet Parametric Compare View All

3112-NM Overview

RF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

3112-NM Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	N-M, I/P POWER-MAX(PEAK)=5000W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	43.98 dBm
JESD-609 code	e4
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.45
Base Number Matches	1

Preview

Download Datasheet

View All

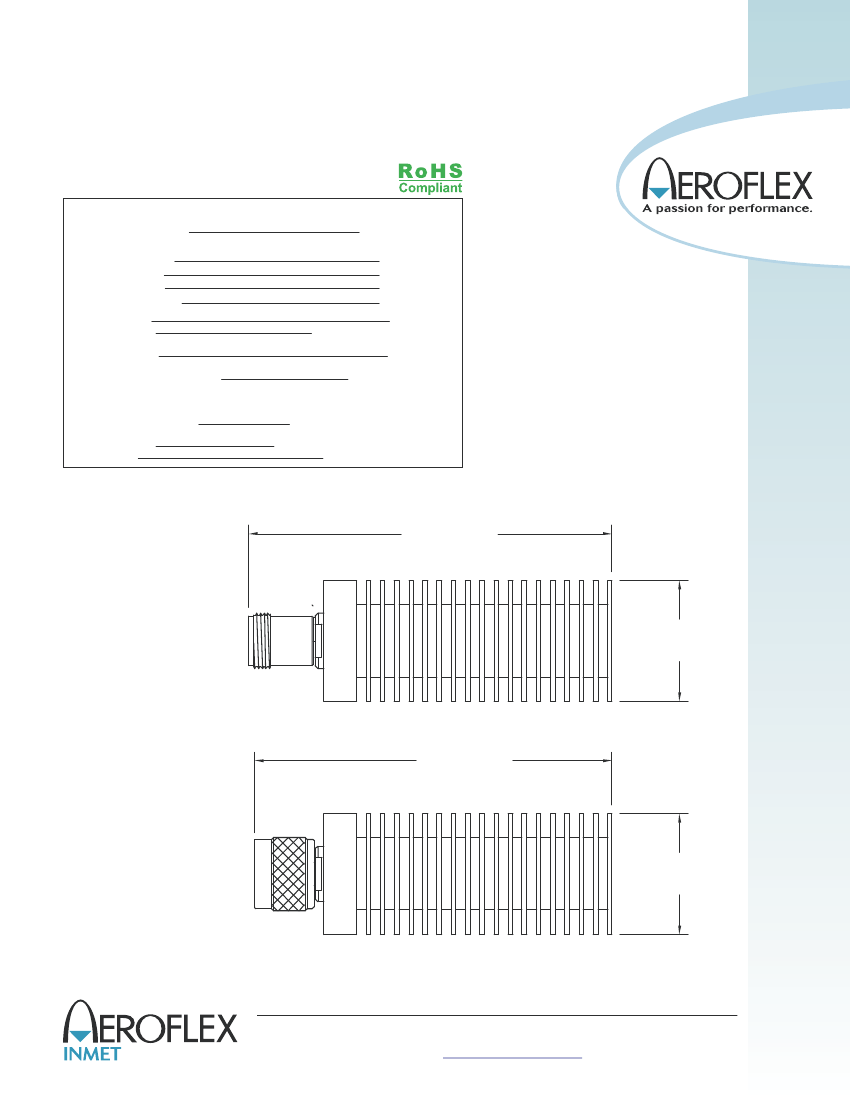

TERMINATIONS

Type N DC - 1

2.4 GHz, 25 Watts

SPECIFICATIONS:

Models: 3 1

1 2-NF, 3 1

1 2-NM

Electrical:

Frequency Range

VSWR

DC - 1 GHz

1 - 4 GHz

4 - 8 GHz

8 - 1 GHz

2.4

Impedance

Input Power

Peak Power

Operating Temp Range

DC - 1 GHz

2.4

1. 0:1 Max.

1

1.25:1 Max.

1.35:1 Max.

1.45:1 Max.

50 Ohms

25 Watts Avg. @ +25°C

Derated Linearly to 5 Watts @ +1 C

25

o

5 kW Max.

(5uSec Pulse, .05% Duty Cycle)

-65°C to +125°C

Mechanical:

Type N Connectors

Mates with MIL

-STD-348

Passivated Stainless Steel

Gold Plated Beryllium Copper

Anodized Aluminum

Conductors

Housing

Model Number:

31 2-NF

1

Type N Female Connector

4.09±.05

[103.86±1.27]

Ø1.36

[34.54]

Model Number:

31 2-NM

1

Type N Male Connector

4.03±.05

[102.36±1.27]

Ø1.36

[34.54]

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design, specifications are subject to change without notice. Contact factory for technical

specifications before purchasing or use.

31

1 2-N: REV A

Aeroflex / Inmet, Inc.

300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet

• inmetsales@aeroflex.com

3112-NM Related Products

	3112-NM
Description	RF/Microwave Termination, 0MHz Min, 12400MHz Max, 50ohm, ROHS COMPLIANT PACKAGE
Reach Compliance Code	unknown
Other features	N-M, I/P POWER-MAX(PEAK)=5000W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	43.98 dBm
JESD-609 code	e4
Maximum operating frequency	12400 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.45
Base Number Matches	1
