374424B00035G: DescriptionHeat Sink, Fin, Pin Fin Array, Omnidirect, Aluminum, Anodized, ROHS COMPLIANT; CategoryThermal management products Heat resisting bracing; File Size190KB，2 Pages; ManufacturerBoyd Corporation; Environmental Compliance

Download Datasheet Parametric View All

374424B00035G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	374424B00035G	-	-	View	Buy Now

374424B00035G Overview

Heat Sink, Fin, Pin Fin Array, Omnidirect, Aluminum, Anodized, ROHS COMPLIANT

374424B00035G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Main material	ALUMINUM
color	BLACK
structure	FIN
fin direction	OMNIDIRECT
Surface layer	ANODIZED
high	18 mm
length	27 mm
contour	PIN FIN ARRAY
Heat Resistant Support Device Type	HEAT SINK
width	27 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5/16/12

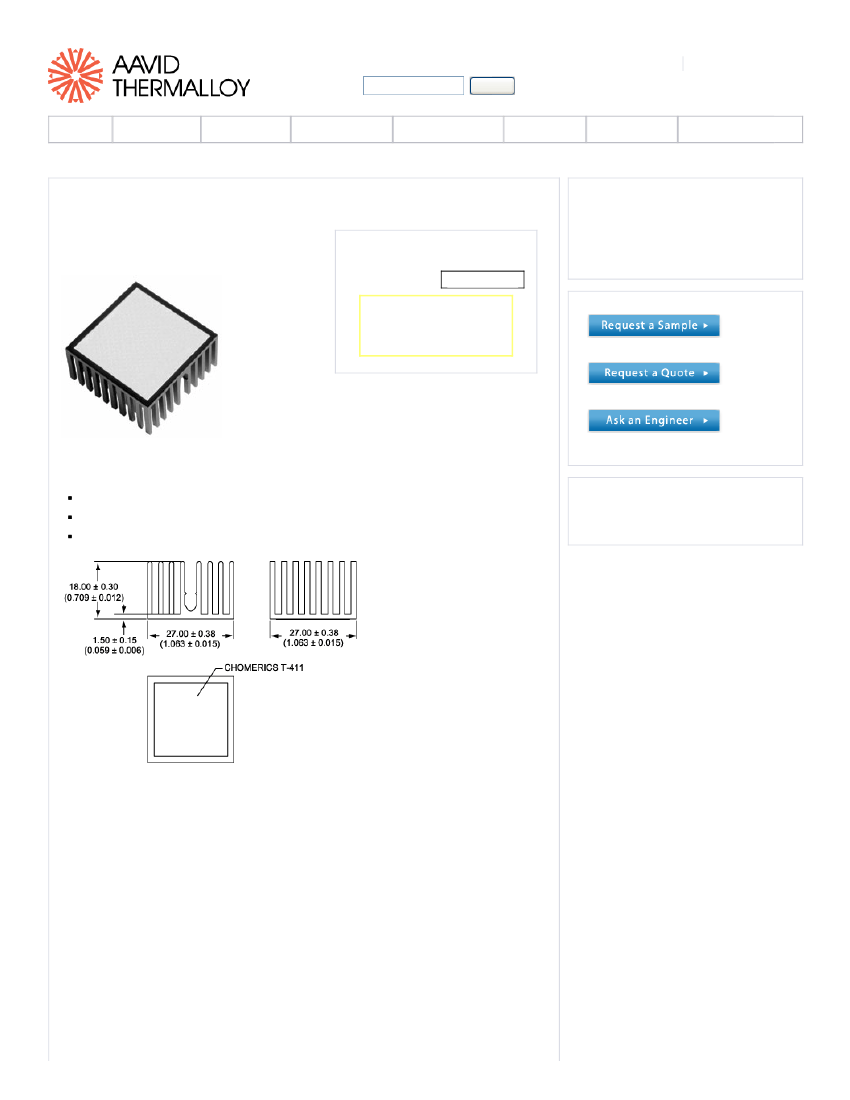

374424B00035G - heatsinks for BGA Devices

Tel (toll-free): +1-855-32-AAVID

Home

Products

Solutions

Aavid Design

Tools & Docs

Contact

Company

Online Store

BGA Heat Sinks

374424B00035G

Pin Fin heat sink with tape attachment

RoHS:

Download PCN

Qty in stock:

Enter QTY:

estore@aavid.com

for

availability

Need assistance?

Call us: 1-855-32-AAVID

Email:

estore@aavid.com

Help Page

Features

Tape mounting saves board space by eliminating mounting holes

Convenient peel and stick assembly is quick and clean

Pin Fin array allows omni-directional airflow to maximize heat dissipation

Product Return Policy

Terms & Conditions

Width: 27.00

Length: 27.00

Height: 18.00

Base Thickness: 1.50

Fin Thickness: Length 1.63, Width 1.40

# of Fins: Length 8, Width 8

Fin Tip to Tip: 0.00

Finish: Black Anodize

Thermal Performance

Natural Convection: 20.30

(based on a heatsink temperature rise of 75°C above ambient)

Forced convection: 6.46

based on fully ducted airflow entering at 1.0 m/s (197 LFM).
