54LS26/BDAJC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 54LS26/BDAJC

Preview

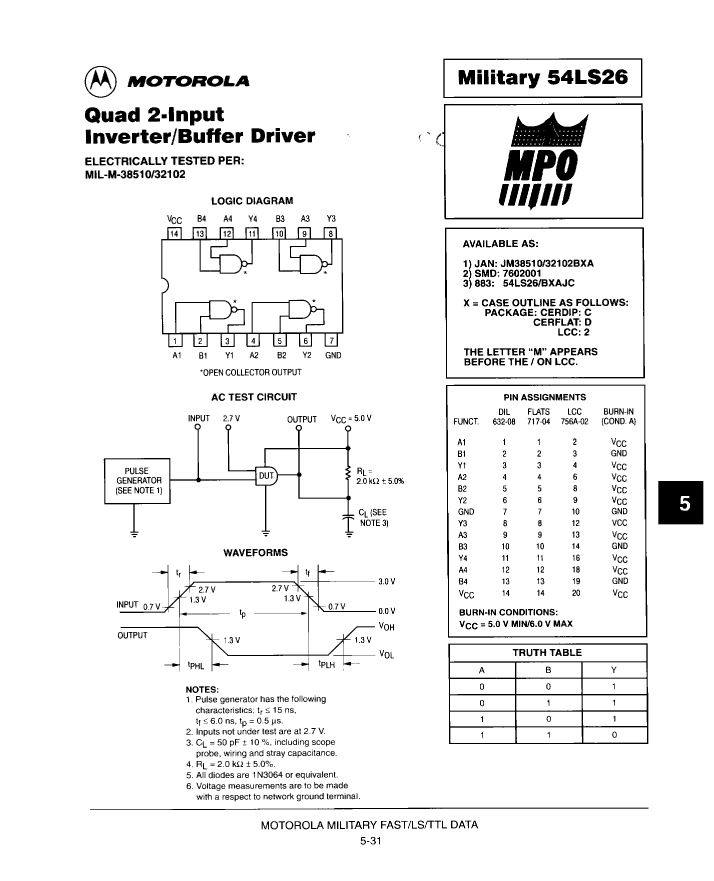

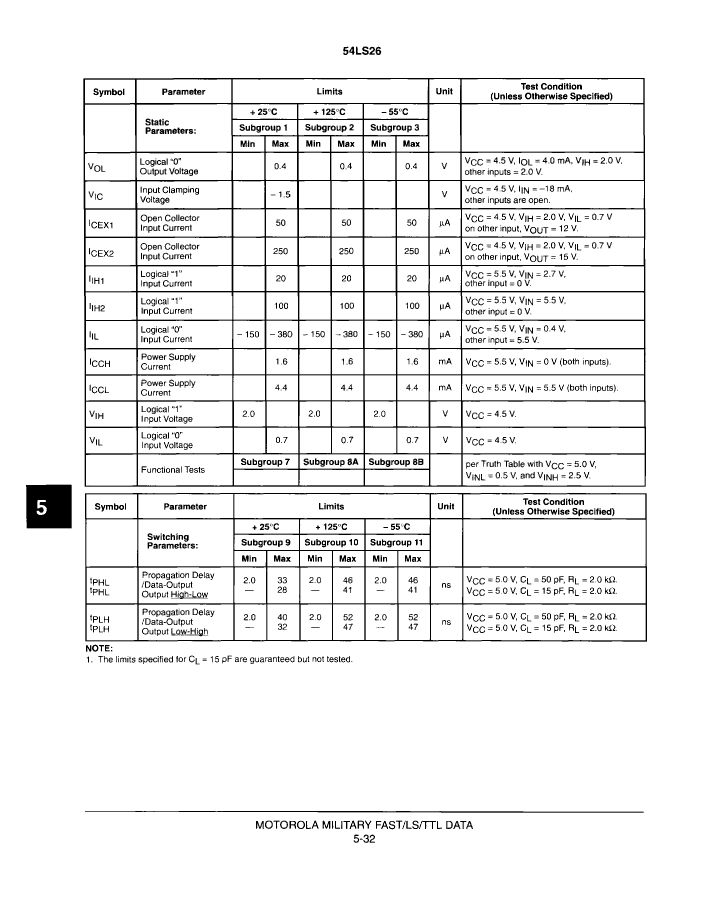

54LS26/BDAJC: DescriptionNAND Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14; Categorylogic logic; File Size53KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS26/BDAJC Overview

NAND Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14

54LS26/BDAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DFP, FL14,.3
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-GDFP-F14
JESD-609 code	e0
length	9.65 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.004 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	4.4 mA
Prop。Delay @ Nom-Sup	52 ns
propagation delay (tpd)	41 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.15 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.415 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54LS26/BDAJC Related Products

	54LS26/BDAJC	54LS26/BCAJC	54LS26M/B2AJC
Description	NAND Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14	LS SERIES, QUAD 2-INPUT NAND GATE, CDIP14, CERDIP-14	LS SERIES, QUAD 2-INPUT NAND GATE, CQCC20, CERAMIC, LCC-20
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DFP, FL14,.3	DIP, DIP14,.3	CERAMIC, LCC-20
Reach Compliance Code	unknown	unknown	unknown
series	LS	LS	LS
JESD-30 code	R-GDFP-F14	R-GDIP-T14	S-CQCC-N20
JESD-609 code	e0	e0	e0
length	9.65 mm	19.495 mm	8.885 mm
Load capacitance (CL)	15 pF	15 pF	15 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE
MaximumI(ol)	0.004 A	0.004 A	0.004 A
Number of functions	4	4	4
Number of entries	2	2	2
Number of terminals	14	14	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	QCCN
Encapsulate equivalent code	FL14,.3	DIP14,.3	LCC20,.35SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	4.4 mA	4.4 mA	4.4 mA
Prop。Delay @ Nom-Sup	52 ns	32 ns	52 ns
propagation delay (tpd)	41 ns	41 ns	41 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	2.15 mm	5.08 mm	1.9 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	6.415 mm	7.62 mm	8.885 mm
Base Number Matches	1	1	1
Maker	-	Motorola ( NXP )	Motorola ( NXP )
