39JR363-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 39JR363-1

Preview

39JR363-1: DescriptionRF SMA Connector, Female, Board Mount, Solder Terminal, Jack; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

39JR363-1 Overview

RF SMA Connector, Female, Board Mount, Solder Terminal, Jack

39JR363-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-39012
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	SMA
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	18 GHz
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.33
Base Number Matches	1

Preview

Download Datasheet

View All

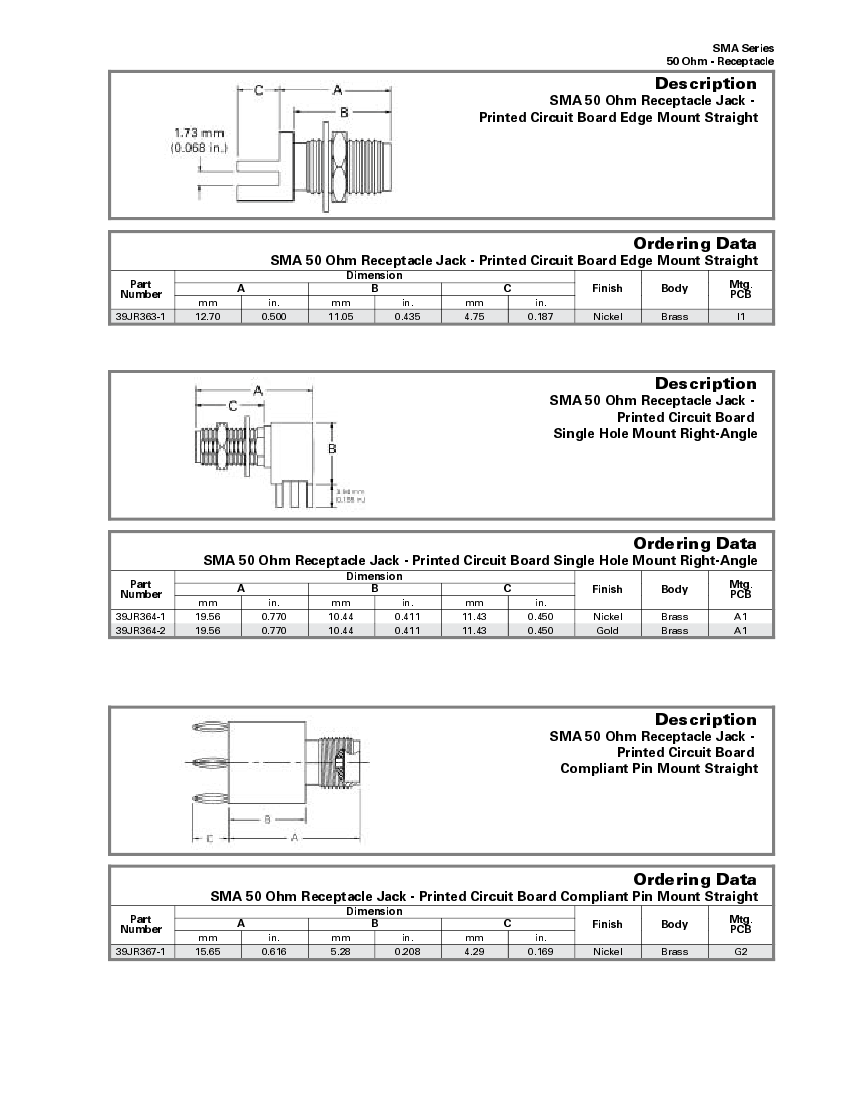

SMA 50 Ohm Receptacle

Receptacle

50 Ohm -

Jack -

Printed Circuit Board Edge Mount Straight

Description

SMA Series

50 Ohm - Receptacle

RF/Coaxial

SMA 50 Ohm Receptacle Jack - Printed Circuit Board Edge Mount Straight

Ordering Data

Body

39JR363-1

Part

Number

mm

12.70

A

in.

0.500

mm

11.05

Dimension

B

in.

0.435

mm

4.75

C

in.

0.187

Finish

Nickel

Brass

Mtg.

PCB

I1

SMA 50 Ohm Receptacle Jack -

Printed Circuit Board

Single Hole Mount Right-Angle

Description

SMA 50 Ohm Receptacle Jack - Printed Circuit Board Single Hole Mount Right-Angle

Ordering Data

Body

39JR364-1

39JR364-2

Part

Number

mm

19.56

A

in.

0.770

mm

10.44

Dimension

B

in.

0.411

mm

11.43

C

in.

0.450

Finish

Nickel

Gold

Brass

Mtg.

PCB

A1

SMA 50 Ohm Receptacle Jack -

Printed Circuit Board

Compliant Pin Mount Straight

Description

SMA 50 Ohm Receptacle Jack - Printed Circuit Board Compliant Pin Mount Straight

Ordering Data

Body

39JR367-1

Part

Number

mm

15.65

A

in.

0.616

mm

5.28

Dimension

B

in.

0.208

mm

4.29

C

in.

0.169

Finish

Nickel

Brass

Mtg.

PCB

G2

RF/Coaxial

30-95

39JR363-1 Related Products

	39JR363-1	39JR367-1	39JR364-1	39JR364-2
Description	RF SMA Connector, Female, Board Mount, Solder Terminal, Jack	RF SMA Connector, Female, Panel Mount, Board Mount, Solder Terminal, Jack	RF SMA Connector, Female, Panel Mount, Board Mount, Solder Terminal, Jack	RF SMA Connector, Female, Panel Mount, Board Mount, Solder Terminal, Jack
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012
Body/casing type	JACK	JACK	JACK	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	NICKEL	NICKEL	NICKEL	GOLD
Contact completed and terminated	NICKEL	NICKEL	NICKEL	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insertion loss	0.25 dB	0.25 dB	0.25 dB	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES	YES	YES	YES
Manufacturer's serial number	SMA	SMA	SMA	SMA
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz
Panel mounting	YES	YES	YES	YES
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
voltage standing wave ratio	1.33	1.33	1.33	1.33
Base Number Matches	1	1	1	1
ECCN code	-	EAR99	EAR99	EAR99
