NOTES:
1. MATERIALS AND FINISHES:
BODY, LOCK RING, LOCK WASHER &
HEX-NUT - BRASS, NICKEL PLATING
INSULATOR - PTFE, NATURAL
CONTACTS - BeCu, GOLD PLATING
2. ELECTRICAL:
A. IMPEDANCE: 75 OHM
B. FREQUENCY RANGE: DC-12 GHz
C. RETURN LOSS: -20 dB MAX. @ DC-6 GHz
-15 dB MAX. @ 6-12 GHz
D. DWV: 1500 VRMS
3. MECHANICAL:
A. DURABILITY: 500 CYCLES MIN.
B. TEMPERATURE RANGE: -65 $ C TO +165 $ C
C. RECOMMENDED TORQUE: 30 IN-LBS
4. PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, 31-220N-75-12G AND DATE CODE"
THIRD ANGLE PROJ.
REV
DESCRIPTION
REVISIONS
DATE
ECN
APPR
A
RELEASE TO MFG.
04-May-18
8023
BMG
12,83
[.505 ]
32,5
REF
[1.280 ]
11,4 REF
[.449 ]
1,2
REF
[.047 ]
10,8 REF
[.425 ]
9,65 REF
[ .380 ]
TYP.
12,01
[.473 ]
SCALE
2.000
RECOMMENDED MOUNTING
HOLE DIMENSIONS
15,5 REF.
[.610 ]
INTERFACE PER
MIL-STD-348
SERIES: BNC JACK
75 OHMS
TYP(2)
1/2-28UNEF-2A
THREAD
5,5
[.217 ]
MAX. PANEL THICKNESS
16 HEX
[.630]
LOCK WASHER
11,8
[.465 ]
'D' FLAT
HEX-NUT & LOCKWASHER
NOT SHOWN

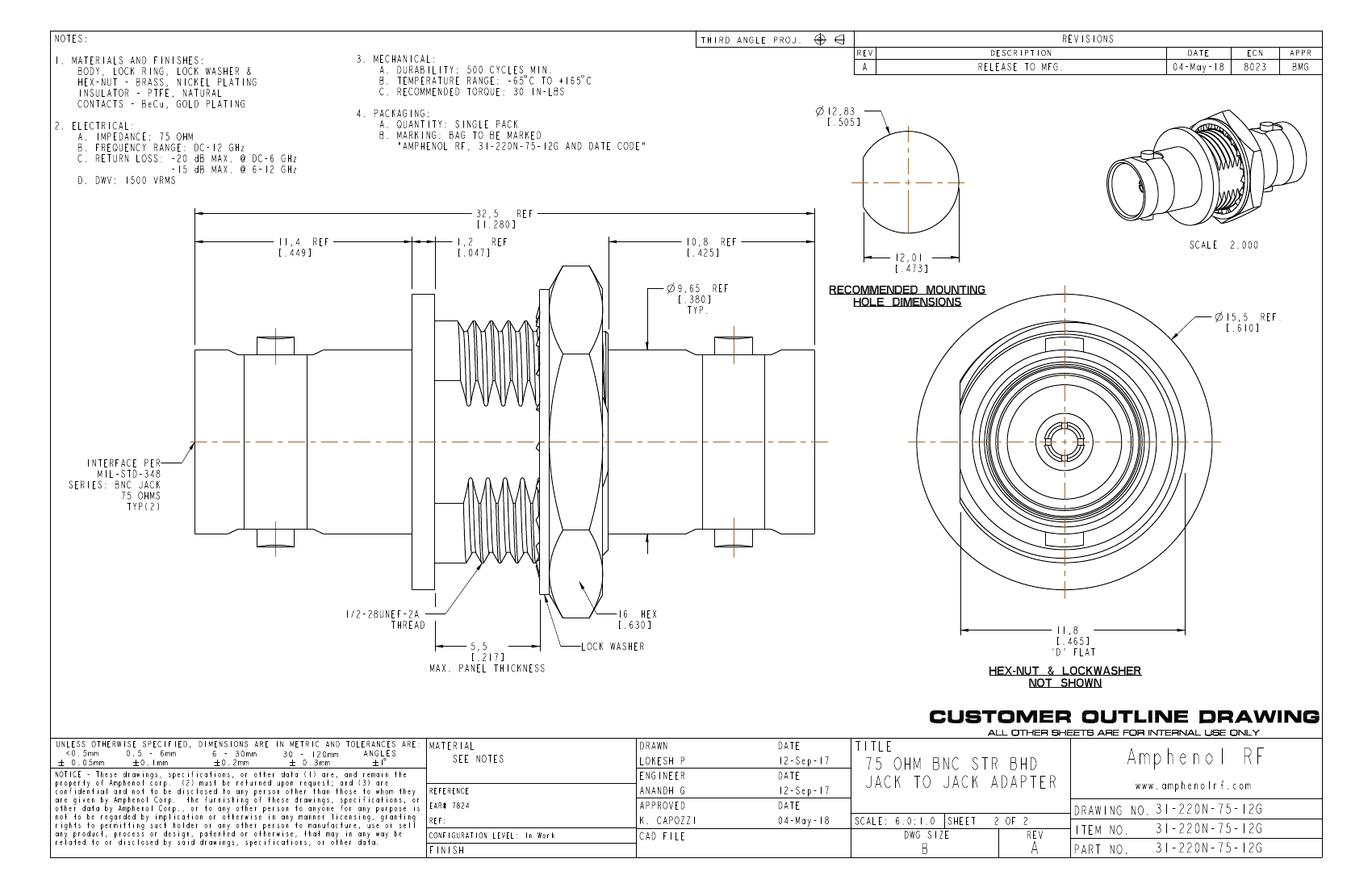

CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
ANGLES
6 - 30mm
30 - 120mm
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing, granting
rights to permitting such holder or any other person to manufacture, use or sell
any product, process or design, patented or otherwise, that may in any way be
related to or disclosed by said drawings, specifications, or other data.
MATERIAL
SEE NOTES
REFERENCE
EAR# 7824
REF:
CONFIGURATION LEVEL: In Work
DRAWN
ENGINEER
APPROVED
LOKESH P
ANANDH G
K. CAPOZZI
CAD FILE
DATE
DATE
12-Sep-17
12-Sep-17
04-May-18
TITLE
75 OHM BNC STR BHD
JACK TO JACK ADAPTER
2 OF 2
REV
Amphenol RF
www.amphenolrf.com
DATE
FINISH
SCALE: 6.0:1.0 SHEET
DWG SIZE
B
A
ITEM NO.
DRAWING NO.
31-220N-75-12G
31-220N-75-12G
31-220N-75-12G
PART NO.
