39JF102-1

Description
RF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack
CategoryThe connector    The connector
File Size63KB，1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

39JF102-1 Overview

RF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack

39JF102-1 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Reach Compliance Codeunknown
Other featuresSTANDARD: MIL-C-39012
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderFEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.25 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceYES
Manufacturer's serial numberSMA
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeCRIMP SOLDER
voltage standing wave ratio1.33
Base Number Matches1

Preview

Download Datasheet

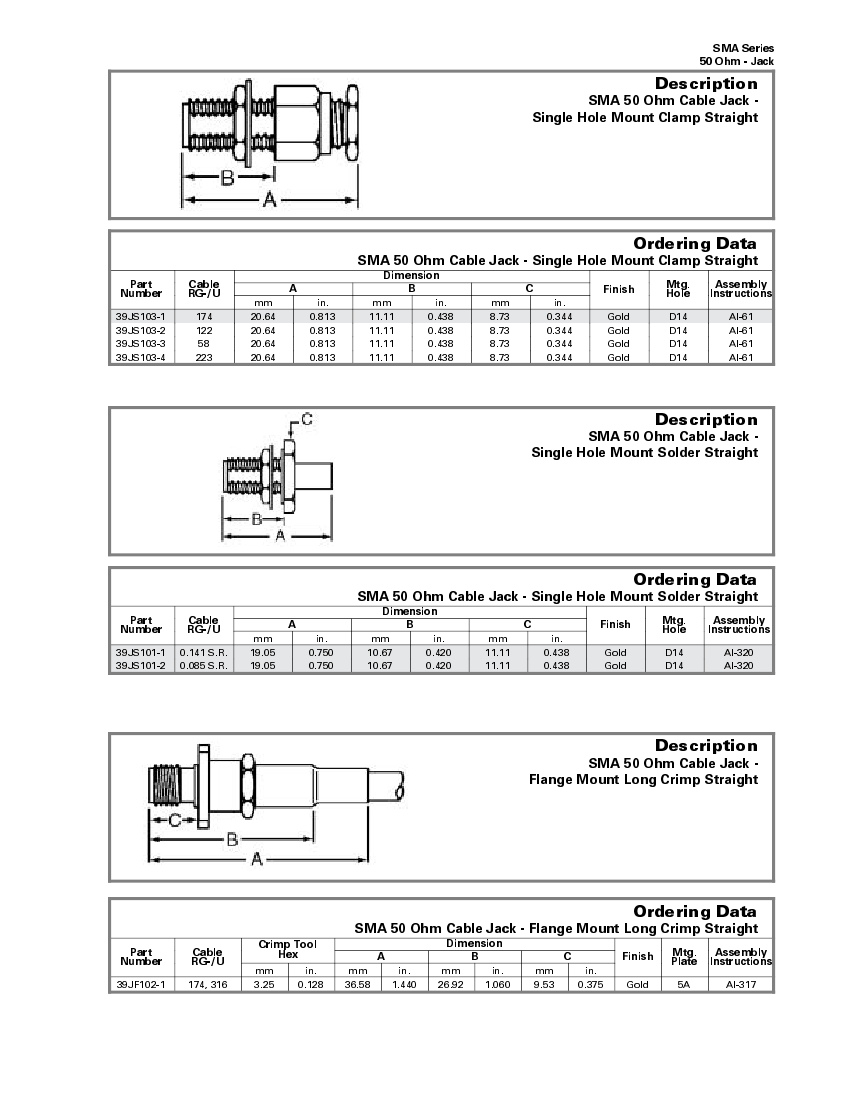

SMA 50 Ohm Cable Jack
Jack
50 Ohm -
-
Single Hole Mount Clamp Straight
Description
SMA Series
SMA Series
50 Ohm - Jack
RF/Coaxial
SMA 50 Ohm Cable Jack - Single Hole Mount Clamp Straight
Ordering Data
Mtg.
Hole
39JS103-1
39JS103-2
39JS103-3
39JS103-4
Part
Number
Cable
RG-/U
174
122
58
223
mm
20.64
20.64
20.64
20.64
A
in.
0.813
0.813
0.813
0.813
mm
11.11
11.11
11.11
11.11
Dimension
B
in.
0.438
0.438
0.438
0.438
mm
8.73
8.73
8.73
8.73
C
in.
0.344
0.344
0.344
0.344
Finish
Gold
Gold
Gold
Gold
D14
D14
D14
D14
Assembly
Instructions
AI-61
AI-61
AI-61
AI-61
SMA 50 Ohm Cable Jack -
Single Hole Mount Solder Straight
Description
SMA 50 Ohm Cable Jack - Single Hole Mount Solder Straight
Ordering Data
Mtg.
Hole
39JS101-1 0.141 S.R.
39JS101-2 0.085 S.R.
Part
Number
Cable
RG-/U
mm
19.05
19.05
A
in.
0.750
0.750
mm
10.67
10.67
Dimension
B
in.
0.420
0.420
mm
11.11
11.11
C
in.
0.438
0.438
Finish
Gold
Gold
D14
D14
Assembly
Instructions
AI-320
AI-320
SMA 50 Ohm Cable Jack -
Flange Mount Long Crimp Straight
Description
39JF102-1
Part
Number
174, 316
Cable
RG-/U
mm
3.25
Crimp Tool
Hex
SMA 50 Ohm Cable Jack - Flange Mount Long Crimp Straight
Ordering Data
5A
AI-317
in.
0.128
mm
36.58
A
in.
1.440
mm
26.92
Dimension
B
in.
1.060
mm
9.53
C
in.
0.375
Finish
Gold
Mtg. Assembly
Plate Instructions
RF/Coaxial
30-91

39JF102-1 Related Products

39JF102-1 39JS103-1 39JS103-2 39JS103-3 39JS103-4 39JS101-1 39JS101-2
Description RF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack RF SMA Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack RF SMA Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack RF SMA Connector, Female, Panel Mount, Cable Mount, Clamp Solder Terminal, Jack RF SMA Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown
Other features STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012
Body/casing type JACK JACK JACK JACK JACK JACK JACK
Characteristic impedance 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω
Connector type RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR
Contact to complete cooperation GOLD GOLD GOLD GOLD GOLD GOLD GOLD
Contact completed and terminated GOLD GOLD GOLD GOLD GOLD GOLD GOLD
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Coupling type THREADED THREADED THREADED THREADED THREADED THREADED THREADED
DIN compliance NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO
Insertion loss 0.25 dB 0.25 dB 0.25 dB 0.25 dB 0.25 dB 0.25 dB 0.25 dB
insulator material POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE
JESD-609 code e4 e4 e4 e4 e4 e4 e4
MIL compliance YES YES YES YES YES YES YES
Manufacturer's serial number SMA SMA SMA SMA SMA SMA SMA
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type CABLE CABLE CABLE CABLE CABLE CABLE CABLE
Maximum operating frequency 18 GHz 18 GHz 18 GHz 18 GHz 18 GHz 18 GHz 18 GHz
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Panel mounting YES YES YES YES YES YES YES
Termination type CRIMP SOLDER CLAMP SOLDER CLAMP SOLDER CLAMP SOLDER CLAMP SOLDER SOLDER SOLDER
voltage standing wave ratio 1.33 1.33 1.33 1.33 1.33 1.33 1.33
Base Number Matches 1 1 1 1 1 1 1
