39JF106-1

Description
RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack
CategoryThe connector    The connector
File Size60KB，1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

39JF106-1 Overview

RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack

39JF106-1 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresSTANDARD: MIL-C-39012
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderFEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.25 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceYES
Manufacturer's serial numberSMA
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeSOLDER
voltage standing wave ratio1.33
Base Number Matches1

Preview

Download Datasheet

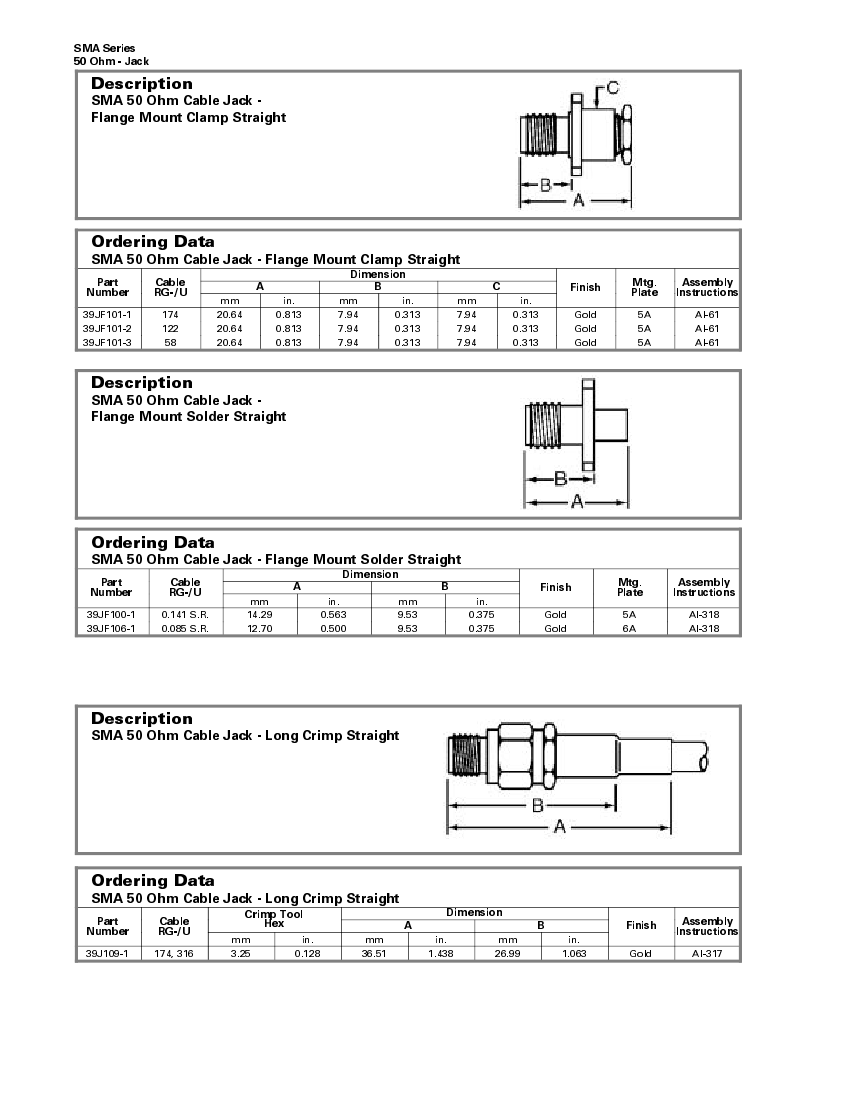

SMA Series
50 Ohm - Jack
Description
SMA 50 Ohm Cable Jack -
Flange Mount Clamp Straight
SMA Series
50 Ohm - Jack
RF/Coaxial
Ordering Data
39JF101-1
39JF101-2
39JF101-3
Part
Number
Cable
RG-/U
SMA 50 Ohm Cable Jack - Flange Mount Clamp Straight
174
122
58
mm
20.64
20.64
20.64
A
in.
0.813
0.813
0.813
mm
7.94
7.94
7.94
Dimension
B
in.
0.313
0.313
0.313
mm
7.94
7.94
7.94
C
in.
0.313
0.313
0.313
Finish
Gold
Gold
Gold
Mtg.
Plate
5A
5A
5A
Assembly
Instructions
AI-61
AI-61
AI-61
Description
SMA 50 Ohm Cable Jack -
Flange Mount Solder Straight
Ordering Data
39JF100-1
39JF106-1
Part
Number
SMA 50 Ohm Cable Jack - Flange Mount Solder Straight
0.141 S.R.
0.085 S.R.
Cable
RG-/U
mm
14.29
12.70
A
Dimension
in.
0.563
0.500
mm
9.53
9.53
B
in.
0.375
0.375
Finish
Gold
Gold
Mtg.
Plate
5A
6A
Assembly
Instructions
AI-318
AI-318
Description
SMA 50 Ohm Cable Jack - Long Crimp Straight
Ordering Data
Part
Number
SMA 50 Ohm Cable Jack - Long Crimp Straight
39J109-1
174, 316
Cable
RG-/U
mm
3.25
Crimp Tool
Hex
in.
0.128
mm
36.51
A
Dimension
in.
1.438
mm
26.99
B
in.
1.063
Finish
Gold
Assembly
Instructions
AI-317
30-92
RF/Coaxial

39JF106-1 Related Products

39JF106-1 39JF101-1 39JF101-2 39JF101-3 39JF100-1
Description RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack RF SMA Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack RF SMA Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack RF SMA Connector, Female, Panel Mount, Cable Mount, Clamp Solder Terminal, Jack RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead
Reach Compliance Code unknown unknown unknown unknown unknown
Other features STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012 STANDARD: MIL-C-39012
Body/casing type JACK JACK JACK JACK JACK
Characteristic impedance 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω
Connector type RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR RF SMA CONNECTOR
Contact to complete cooperation GOLD GOLD GOLD GOLD GOLD
Contact completed and terminated GOLD GOLD GOLD GOLD GOLD
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE
Coupling type THREADED THREADED THREADED THREADED THREADED
DIN compliance NO NO NO NO NO
Filter function NO NO NO NO NO
IEC compliance NO NO NO NO NO
Insertion loss 0.25 dB 0.25 dB 0.25 dB 0.25 dB 0.25 dB
insulator material POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE
JESD-609 code e4 e4 e4 e4 e4
MIL compliance YES YES YES YES YES
Manufacturer's serial number SMA SMA SMA SMA SMA
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type CABLE CABLE CABLE CABLE CABLE
Maximum operating frequency 18 GHz 18 GHz 18 GHz 18 GHz 18 GHz
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Panel mounting YES YES YES YES YES
Termination type SOLDER CLAMP SOLDER CLAMP SOLDER CLAMP SOLDER SOLDER
voltage standing wave ratio 1.33 1.33 1.33 1.33 1.33
Base Number Matches 1 1 1 1 1

Recommended Resources

Soft start regulated power supply circuit 2

Manual Temperature Control Circuit No. 6

Circuit breaker control circuit with anti-jump device

Automatic delay lighting circuit

Electronic thermostatic control circuit

5V fixed output circuit diagram
