39J102-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39J102-1

39J102-1: DescriptionRF SMA Connector, Female, Cable Mount, Solder Terminal, Jack; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

39J102-1 Overview

RF SMA Connector, Female, Cable Mount, Solder Terminal, Jack

39J102-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C-39012
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	SMA
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.33
Base Number Matches	1

Preview

Download Datasheet

View All

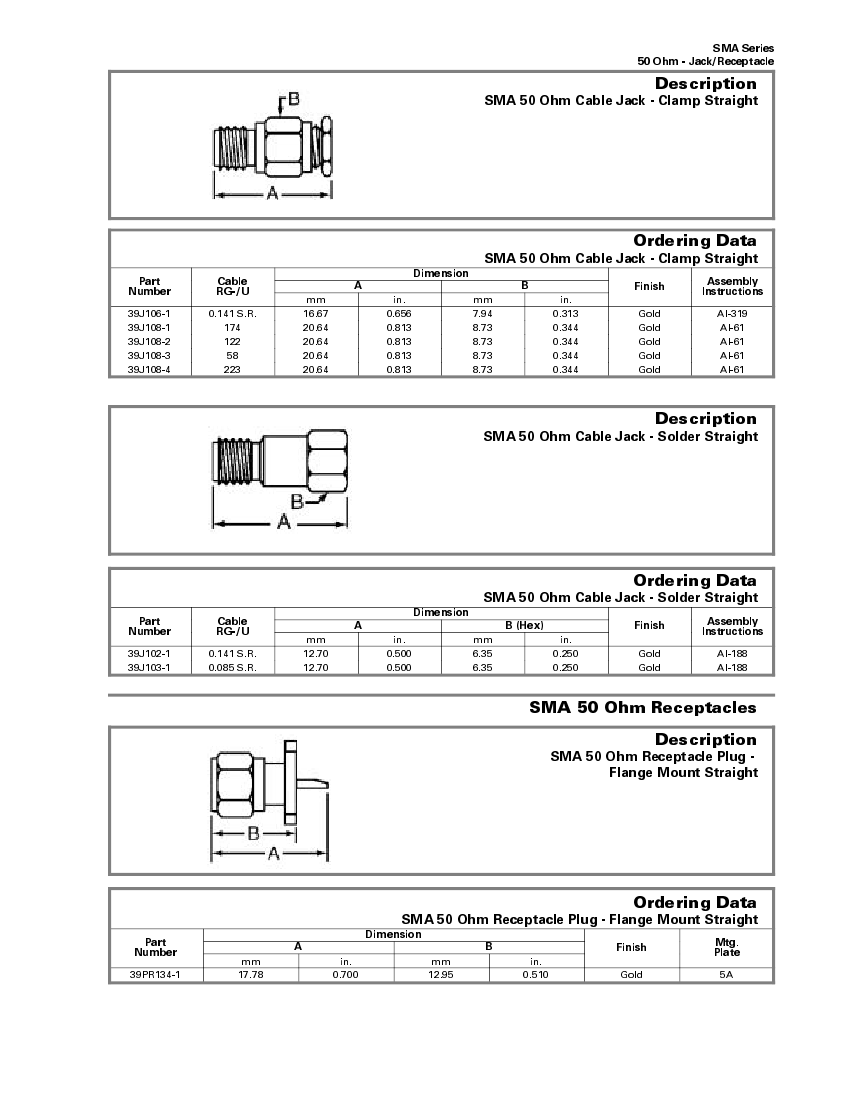

SMA Series

50 Ohm - Jack/Receptacle

RF/Coaxial

SMA 50 Ohm Cable Jack - Clamp Straight

50 Ohm - Jack/Receptacle

Description

SMA Series

39J106-1

39J108-1

39J108-2

39J108-3

39J108-4

Part

Number

0.141 S.R.

174

122

223

Cable

RG-/U

16.67

20.64

Dimension

SMA 50 Ohm Cable Jack - Clamp Straight

Ordering Data

Finish

in.

0.656

0.813

7.94

8.73

in.

0.313

0.344

Gold

Assembly

Instructions

AI-319

AI-61

SMA 50 Ohm Cable Jack - Solder Straight

Description

39J102-1

39J103-1

Part

Number

0.141 S.R.

0.085 S.R.

Cable

RG-/U

12.70

Dimension

SMA 50 Ohm Cable Jack - Solder Straight

Ordering Data

Finish

in.

0.500

6.35

B (Hex)

in.

0.250

Gold

Assembly

Instructions

AI-188

SMA 50 Ohm Receptacles

Description

SMA 50 Ohm Receptacle Plug -

Flange Mount Straight

39PR134-1

Part

Number

17.78

Dimension

SMA 50 Ohm Receptacle Plug - Flange Mount Straight

Ordering Data

Mtg.

Plate

in.

0.700

12.95

in.

0.510

Finish

Gold

RF/Coaxial

30-93

39J102-1 Related Products

	39J102-1	39J108-1	39J108-2	39J108-3	39J108-4	39J103-1	SF108CS	39PR134-1
Description	RF SMA Connector, Female, Cable Mount, Solder Terminal, Jack	RF SMA Connector, Female, Cable Mount, Clamp Terminal, Jack	RF SMA Connector, Female, Cable Mount, Clamp Terminal, Jack	RF SMA Connector, Female, Cable Mount, Clamp Solder Terminal, Jack	RF SMA Connector, Female, Cable Mount, Clamp Solder Terminal, Jack	RF SMA Connector, Female, Cable Mount, Solder Terminal, Jack	10.0 Ampere Heatsink Dual Series Connection Super Fast Recovery Rectifiers	RF SMA Connector, Male, Panel Mount, Solder Terminal, Plug
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	-	unknown
Other features	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	-	STANDARD: MIL-C-39012
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	-	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	-	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	-	RF SMA CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	-	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	-	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	-	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	-	NO
Filter function	NO	NO	NO	NO	NO	NO	-	NO
IEC compliance	NO	NO	NO	NO	NO	NO	-	NO
Insertion loss	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB	-	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	-	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4	e4	e4	-	e4
MIL compliance	YES	YES	YES	YES	YES	YES	-	YES
Manufacturer's serial number	SMA	SMA	SMA	SMA	SMA	SMA	-	SMA
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	-	-
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz	-	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-
Panel mounting	NO	NO	NO	NO	NO	NO	-	YES
Termination type	SOLDER	CLAMP SOLDER	CLAMP SOLDER	CLAMP SOLDER	CLAMP SOLDER	SOLDER	-	SOLDER
voltage standing wave ratio	1.33	1.33	1.33	1.33	1.33	1.33	-	1.33
Base Number Matches	1	1	1	1	1	1	-	1
