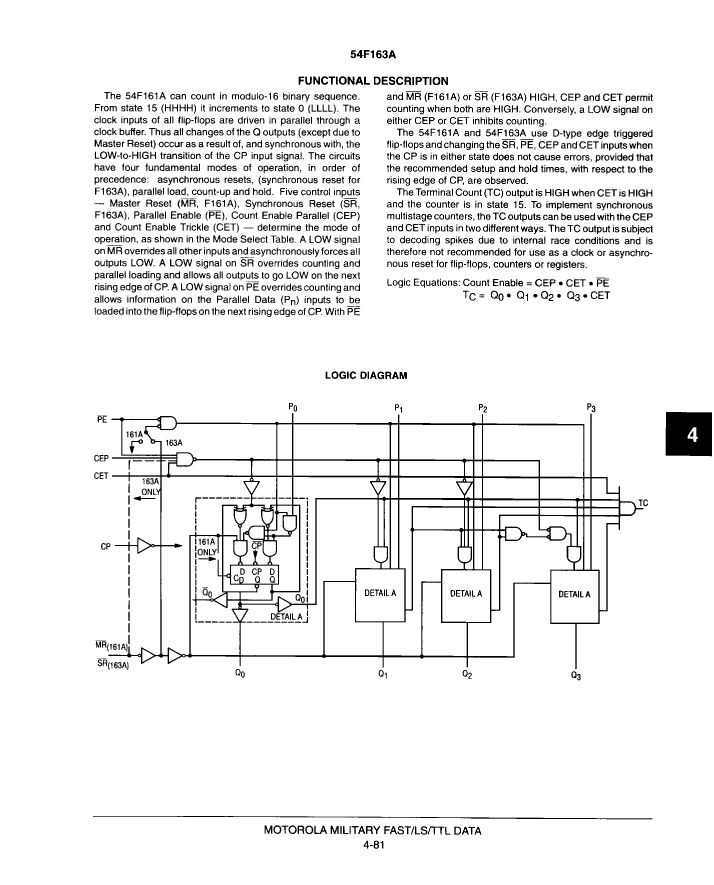

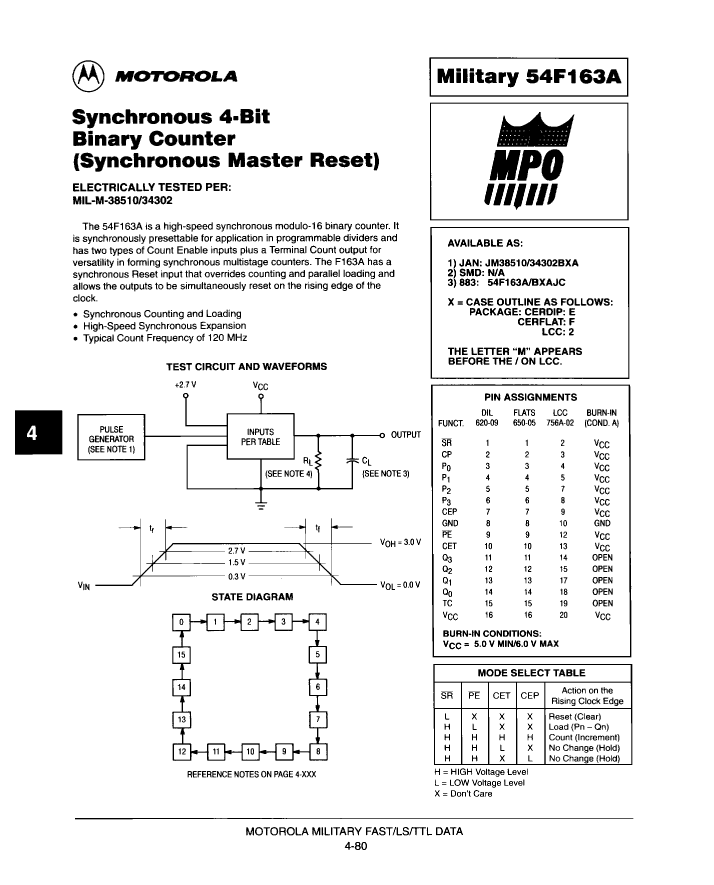

54F163A/BFAJC

Description
F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDFP16, CERAMIC, FP-16
Categorylogic    logic
File Size134KB,5 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

54F163A/BFAJC Overview

F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDFP16, CERAMIC, FP-16

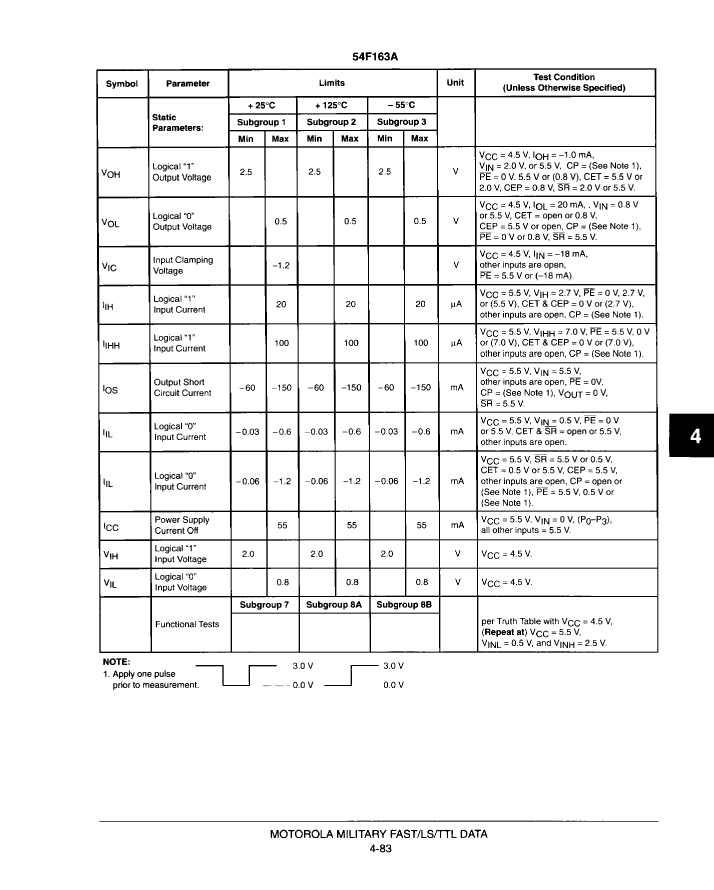

54F163A/BFAJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeDFP
package instructionDFP, FL16,.3
Contacts16
Reach Compliance Codeunknown
Other featuresTCO OUTPUT
Counting directionUP
seriesF/FAST
JESD-30 codeR-GDFP-F16
JESD-609 codee0
length9.65 mm
Load capacitance (CL)50 pF
Load/preset inputYES
Logic integrated circuit typeBINARY COUNTER
Maximum Frequency@Nom-Sup90000000 Hz
MaximumI(ol)0.02 A
Operating modeSYNCHRONOUS
Number of digits4
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDFP
Encapsulate equivalent codeFL16,.3
Package shapeRECTANGULAR
Package formFLATPACK
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Maximum supply current (ICC)55 mA

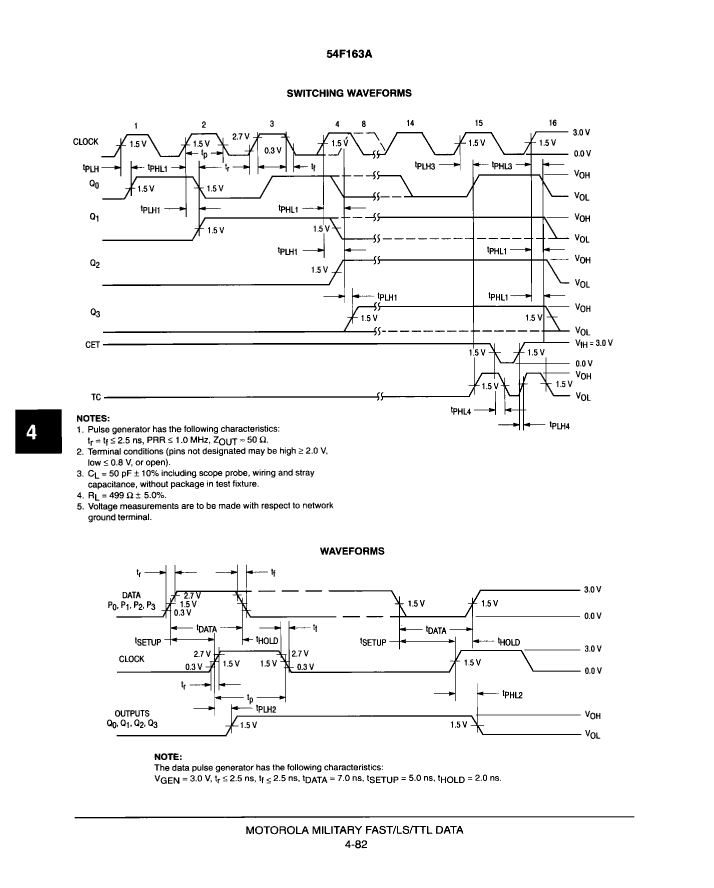

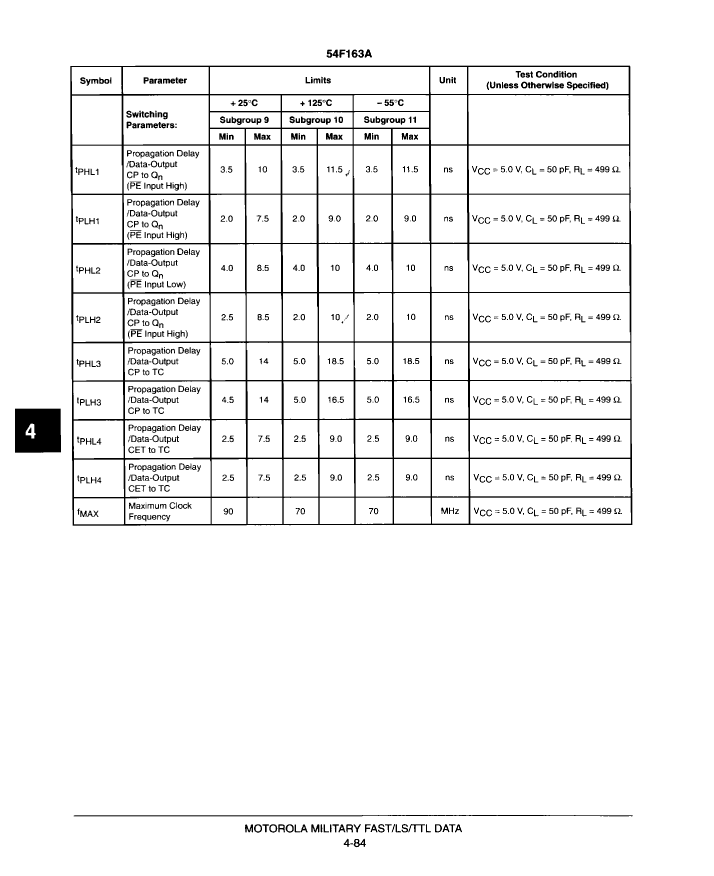

propagation delay (tpd)11.5 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Maximum seat height2.15 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger typePOSITIVE EDGE
width6.415 mm
minfmax70 MHz
Base Number Matches1

54F163A/BFAJC Related Products

54F163A/BFAJC 54F163A/BEAJC 54F163AM/B2AJC
Description F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDFP16, CERAMIC, FP-16 F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16, CERDIP-16 F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CQCC20, CERAMIC, LCC-20
Is it Rohs certified? incompatible incompatible incompatible
Parts packaging code DFP DIP QLCC
package instruction DFP, FL16,.3 DIP, DIP16,.3 QCCN, LCC20,.35SQ
Contacts 16 16 20
Reach Compliance Code unknown unknown unknown
Other features TCO OUTPUT TCO OUTPUT TCO OUTPUT
Counting direction UP UP UP
series F/FAST F/FAST F/FAST
JESD-30 code R-GDFP-F16 R-GDIP-T16 S-CQCC-N20
JESD-609 code e0 e0 e0
length 9.65 mm 19.3 mm 8.89 mm
Load capacitance (CL) 50 pF 50 pF 50 pF
Load/preset input YES YES YES
Logic integrated circuit type BINARY COUNTER BINARY COUNTER BINARY COUNTER
Maximum Frequency@Nom-Sup 90000000 Hz 90000000 Hz 90000000 Hz
MaximumI(ol) 0.02 A 0.02 A 0.02 A
Operating mode SYNCHRONOUS SYNCHRONOUS SYNCHRONOUS
Number of digits 4 4 4
Number of functions 1 1 1
Number of terminals 16 16 20
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Package body material CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED CERAMIC, METAL-SEALED COFIRED
encapsulated code DFP DIP QCCN
Encapsulate equivalent code FL16,.3 DIP16,.3 LCC20,.35SQ
Package shape RECTANGULAR RECTANGULAR SQUARE
Package form FLATPACK IN-LINE CHIP CARRIER
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
power supply 5 V 5 V 5 V
Maximum supply current (ICC) 55 mA 55 mA 55 mA
propagation delay (tpd) 11.5 ns 11.5 ns 11.5 ns
Certification status Not Qualified Not Qualified Not Qualified
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Maximum seat height 2.15 mm 4.19 mm 1.9 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount YES NO YES
technology TTL TTL TTL
Temperature level MILITARY MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form FLAT THROUGH-HOLE NO LEAD
Terminal pitch 1.27 mm 2.54 mm 1.27 mm
Terminal location DUAL DUAL QUAD
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Trigger type POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE
width 6.415 mm 7.62 mm 8.89 mm
minfmax 70 MHz 70 MHz 70 MHz
Base Number Matches 1 1 1
