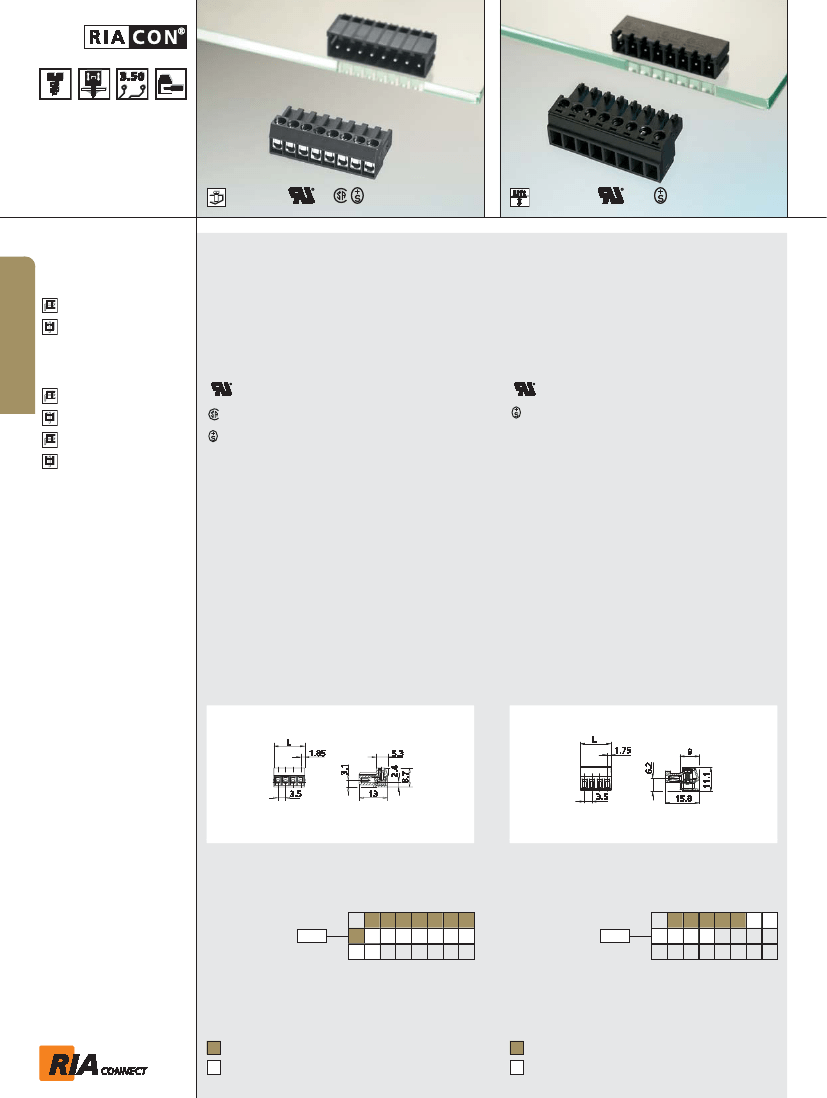

Screw type terminal block, pluggable, centerline
3.5 mm / 0.138 inches, wire entry parallel to plug
direction, contact system with integrated wire
protection
Type 339
Screw type terminal block, pluggable, centerline
3.5 mm / 0.138 inches, wire entry parallel to plug
direction, lift system, contact system with integrated
wire protection
to
Type 169
Type 182
Type 183
Technical Data
to
Type 339
Type 188
Type 189
Type 342
Type 343
page 121
page 119
page 120
page 118
V / A / AWG
V / A / AWG
0.08 - 1 mm²
250 / 10 / 28 - 16
250 / 10 / 26 - 18
125 V / 2.5 kV / 5 A
Technical Data
V / A / AWG
300 / 8 / 28 - 16
0.08 - 1.5 mm² 130 V / 2.5 kV / 12 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 2.2 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
160
400
400
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP20
Tightening torque UL
2.2 lb-in max.
Min. insul. strip length
6 mm
Pole size
2 - 12
Color
black
Accessories
for
Type 169
Coding set
720243
page 205
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 2 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
160
400
400
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP20
Tightening torque UL
1.3 lb-in max.
Min. insul. strip length
5 mm
Pole size
2 - 18
Color
black
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 3.7 mm / 0.146 inches
L = (pole size - 1) x centerline + 3.5 mm / 0.138 inches
Part numbers (P/N)
Type 169
centerline 3.5 mm / 0.138 inches
(information: page 56)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 339
(information: page 56)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18
centerline 3.5 mm / 0.138 inches
02 03 04 05 06 07 08
09 10 11 12
P/N
311691
P/N
313391
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
