39JR106-1 datasheet, PDF - EEWORLD Datasheet

39JR106-1: DescriptionRF SMA Connector, Female, Panel Mount, Solder Terminal, Jack; CategoryThe connector The connector; File Size573KB，15 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

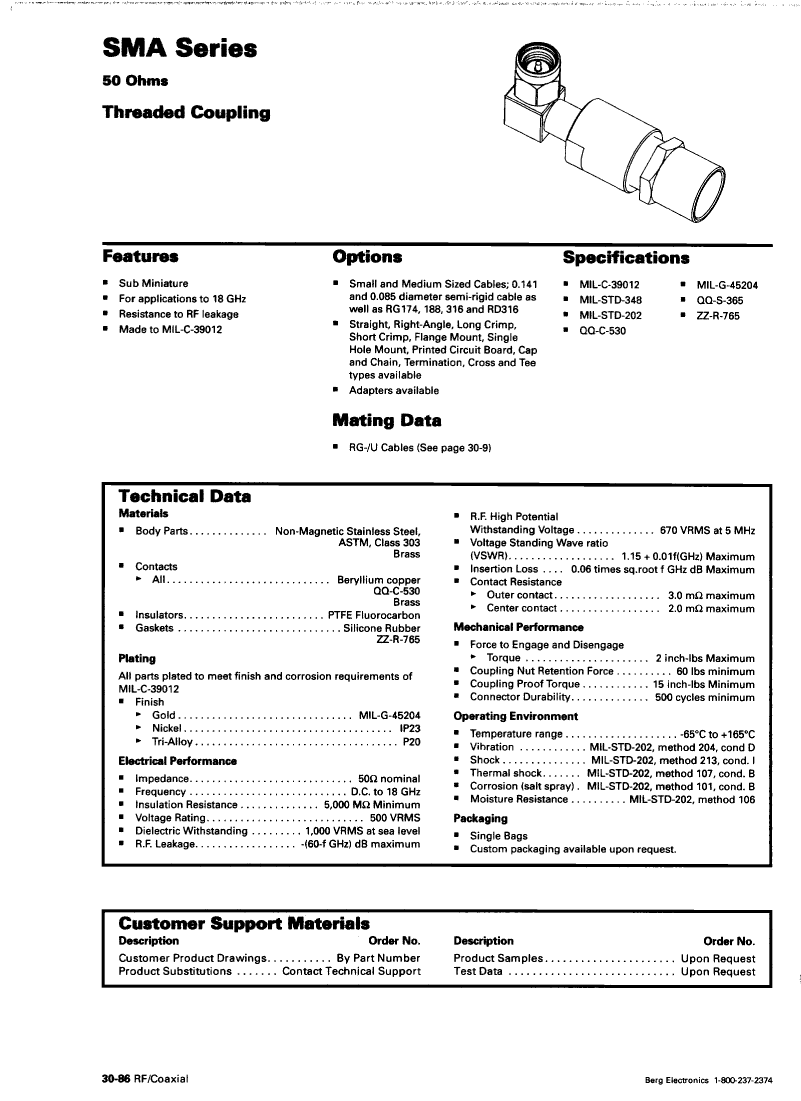

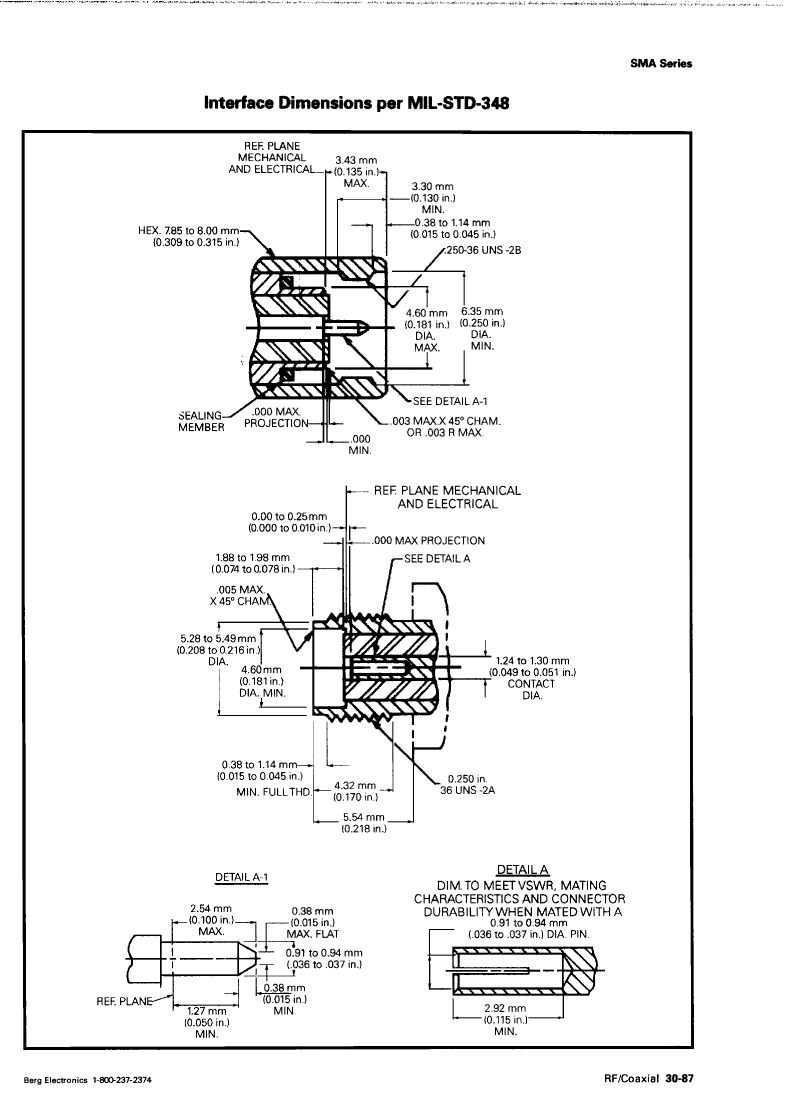

39JR106-1 Overview

RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C-39012
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	SMA
Installation method	STRAIGHT
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.33
Base Number Matches	1

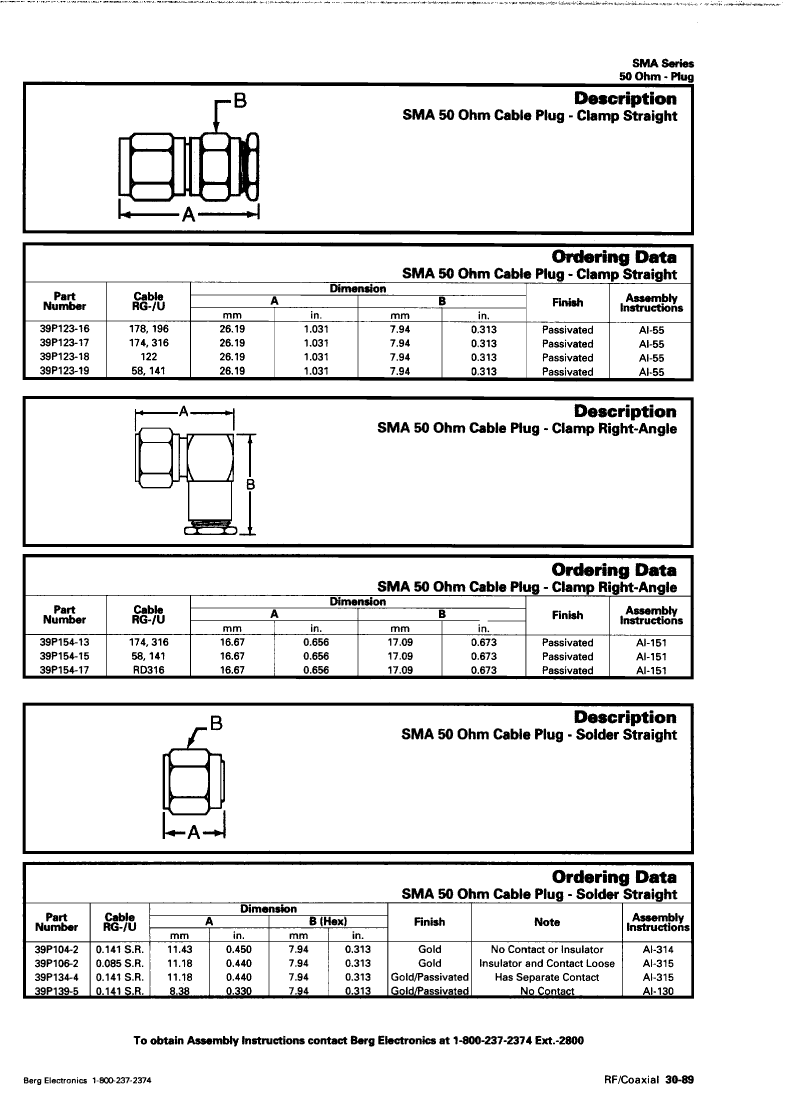

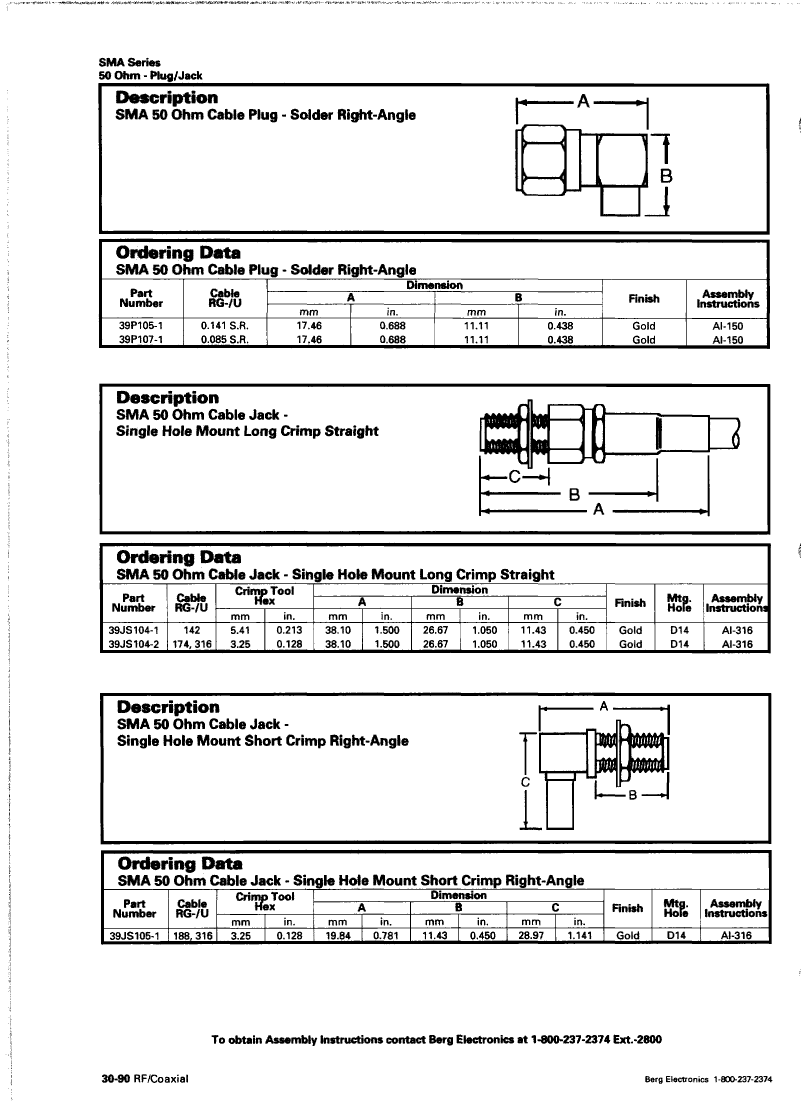

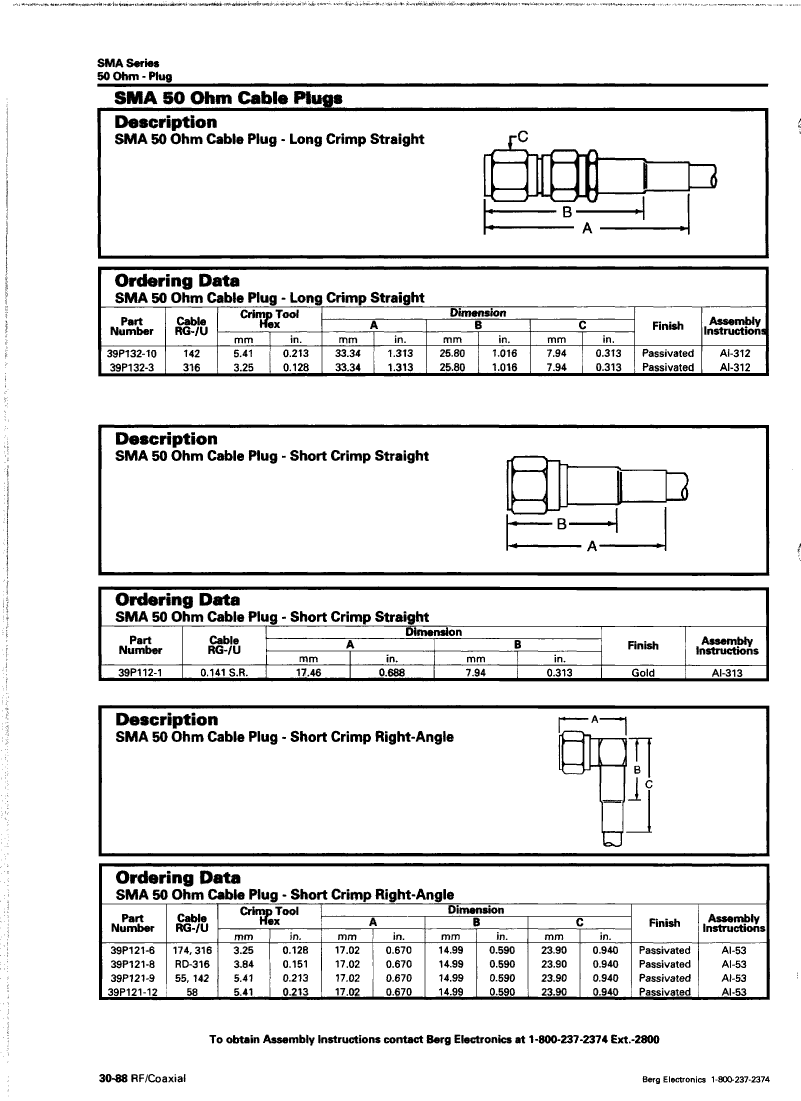

	39JR106-1	39A106-5	39JR118-1	39JL154-2	39PR123-1
Description	RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack	RF Connector Adapter, SMA-SMA, Cable Mount, Male-Male	RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack	RF SMA Connector, Female, Solder Terminal, Jack	RF SMA Connector, Male, Panel Mount, Solder Terminal, Plug
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: MIL-C-39012	INDUSTRY STANDARD:MIL-C-39012, TWO WAY SMA ADAPTER	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF CONNECTOR ADAPTER	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact point gender	FEMALE	MALE-MALE	FEMALE	FEMALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insertion loss	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE	PTFE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES	YES	YES	YES	YES
Manufacturer's serial number	SMA	SMA	SMA	SMA	SMA
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz
Panel mounting	YES	NO	YES	NO	YES
voltage standing wave ratio	1.33	1.33	1.33	1.33	1.33
Base Number Matches	1	1	1	1	1
Body/casing type	JACK	-	JACK	JACK	PLUG
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER
