31-5640-1010 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 31-5640-1010

Preview

31-5640-1010: DescriptionRF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Guide Pin, Jack; CategoryThe connector The connector; File Size871KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

31-5640-1010 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-5640-1010	-	-	View	Buy Now

31-5640-1010 Overview

RF BNC Connector, 1 Contact(s), Female, Panel Mount, Board Mount, Solder Terminal, Guide Pin, Jack

31-5640-1010 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	9 weeks 3 days
Other features	INSERTION LOSS MAX AT 3 GHZ
subject depth	1.38 inch
Body diameter	0.466 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Dielectric withstand voltage	2100VAC V
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
Insulation resistance	5000000000 Ω
Insulator color	WHITE
insulator material	NORYL
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	31-5640-1010
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation option 1	GUIDE PIN
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	ZINC
Terminal length	0.19 inch
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

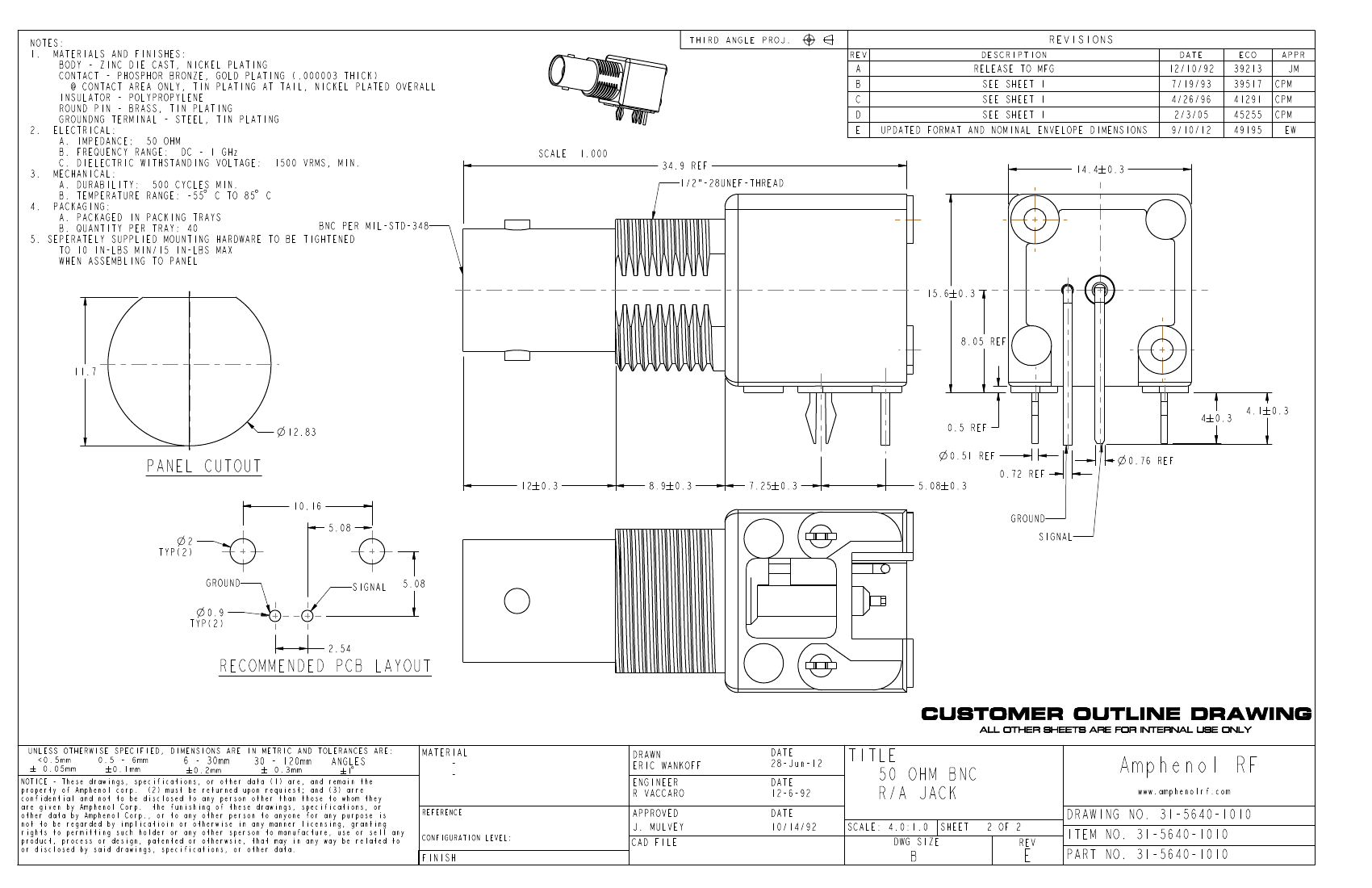

NOTES:

1. MATERIALS AND FINISHES:

BODY - ZINC DIE CAST, NICKEL PLATING

CONTACT - PHOSPHOR BRONZE, GOLD PLATING (.000003 THICK)

@ CONTACT AREA ONLY, TIN PLATING AT TAIL, NICKEL PLATED OVERALL

INSULATOR - POLYPROPYLENE

ROUND PIN - BRASS, TIN PLATING

GROUNDNG TERMINAL - STEEL, TIN PLATING

2. ELECTRICAL:

A. IMPEDANCE: 50 OHM

B. FREQUENCY RANGE: DC - 1 GHz

C. DIELECTRIC WITHSTANDING VOLTAGE: 1500 VRMS, MIN.

3. MECHANICAL:

A. DURABILITY: 500 CYCLES MIN.

B. TEMPERATURE RANGE: -55 $C TO 85 $C

4. PACKAGING:

A. PACKAGED IN PACKING TRAYS

BNC PER MIL-STD-348

B. QUANTITY PER TRAY: 40

5. SEPERATELY SUPPLIED MOUNTING HARDWARE TO BE TIGHTENED

TO 10 IN-LBS MIN/15 IN-LBS MAX

WHEN ASSEMBLING TO PANEL

THIRD ANGLE PROJ.

REV

REVISIONS

A

RELEASE TO MFG

SEE SHEET 1

DESCRIPTION

B

C

D

E

12/10/92

7/19/93

4/26/96

9/10/12

2/3/05

DATE

39213

39517

41291

45255

49195

ECO

APPR

CPM

JM

UPDATED FORMAT AND NOMINAL ENVELOPE DIMENSIONS

0.3

14.4 #

EW

SCALE

1.000

34.9 REF

1/2"-28UNEF-THREAD

15.6 #

0.3

8.05 REF

11.7

4.1 #

0.3

12.83

0.5 REF

0.51 REF

12 #

0.3

8.9 #

0.3

7.25 #

0.3

5.08 #

0.3

0.72 REF

0.76 REF

4 #

0.3

PANEL CUTOUT

10.16

2

TYP(2)

GROUND

0.9

TYP(2)

5.08

GROUND

SIGNAL

5.08

RECOMMENDED PCB LAYOUT

2.54

UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:

<0.5mm

0.5 - 6mm

6 - 30mm

30 - 120mm

ANGLES

# 0.05mm

#

0.1mm

# 0.3mm

#

0.2mm

# $

1

NOTICE - These drawings, specifications, or other data (1) are, and remain the

property of Amphenol corp. (2) must be returned upon requiest; and (3) arre

confidential and not to be disclosed to any person other than those to whom

they

are given by Amphenol Corp. the funishing of these drawings, specifications,

or

other data by Amphenol Corp., or to any other person to anyone for any purpose

is

not to be regarded by implicatioin or otherwise in any manner licensing,

granting

rights to permitting such holder or any other sperson to manufacture, use or

sell any

product, process or design, patented or otherwsie, that may in any way be

related to

or disclosed by said drawings, specifications, or other data.

MATERIAL

-

REFERENCE

CONFIGURATION LEVEL:

DRAWN

ERIC WANKOFF

ENGINEER

R VACCARO

APPROVED

J. MULVEY

DATE

28-Jun-12

DATE

12-6-92

DATE

10/14/92

TITLE

50 OHM BNC

R/A JACK

SCALE: 4.0:1.0

DWG SIZE

SHEET

2 OF 2

Amphenol RF

www.amphenolrf.com

DRAWING NO. 31-5640-1010

FINISH

CAD FILE

B

REV

E

ITEM NO. 31-5640-1010

PART NO. 31-5640-1010
