31-5486-10RFX Overview

RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Jack

31-5486-10RFX Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	INSERTION LOSS MAX AT 3 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	GOLD FLASH OVER NICKEL (50)
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	POLYPROPYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	31-5486-10RFX
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

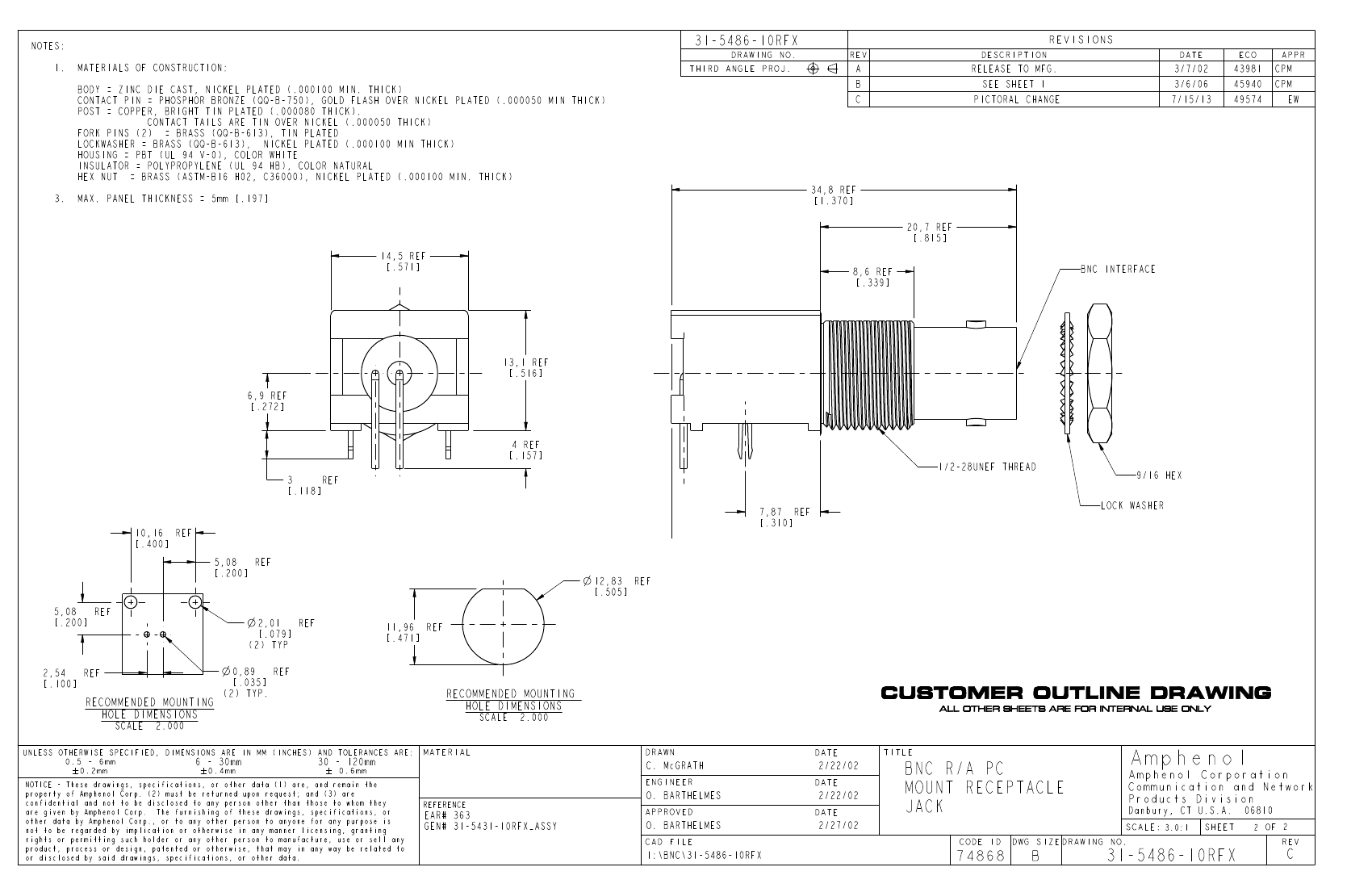

NOTES:

MATERIALS OF CONSTRUCTION:

BODY = ZINC DIE CAST, NICKEL PLATED (.000100 MIN. THICK)

CONTACT PIN = PHOSPHOR BRONZE (QQ-B-750), GOLD FLASH OVER NICKEL PLATED

(.000050 MIN THICK)

POST = COPPER, BRIGHT TIN PLATED (.000080 THICK).

CONTACT TAILS ARE TIN OVER NICKEL (.000050 THICK)

FORK PINS (2) = BRASS (QQ-B-613), TIN PLATED

LOCKWASHER = BRASS (QQ-B-613), NICKEL PLATED (.000100 MIN THICK)

HOUSING = PBT (UL 94 V-0), COLOR WHITE

INSULATOR = POLYPROPYLENE (UL 94 HB), COLOR NATURAL

HEX NUT = BRASS (ASTM-B16 H02, C36000), NICKEL PLATED (.000100 MIN.

THICK)

MAX. PANEL THICKNESS = 5mm [.197]

31-5486-10RFX

THIRD ANGLE PROJ.

REVISIONS

REV

DRAWING NO.

RELEASE TO MFG.

PICTORAL CHANGE

SEE SHEET 1

DESCRIPTION

3/7/02

7/15/13

3/6/06

DATE

43981

45940

49574

ECO

CPM

APPR

34,8 REF

[1.370]

20,7 REF

[.815]

14,5 REF

[.571]

8,6 REF

[.339]

BNC INTERFACE

13,1 REF

[.516]

6,9 REF

[.272]

4 REF

[.157]

REF

[.118]

7,87 REF

[.310]

5,08

REF

[.200]

5,08

REF

[.200]

1/2-28UNEF THREAD

9/16 HEX

LOCK WASHER

10,16 REF

[.400]

12,83 REF

[.505 ]

11,96 REF

[.471]

2,01

REF

[.079 ]

(2) TYP

0,89

REF

[.035 ]

(2) TYP.

2,54

REF

[.100]

RECOMMENDED MOUNTING

HOLE DIMENSIONS

SCALE

2.000

RECOMMENDED MOUNTING

HOLE DIMENSIONS

SCALE

2.000

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN MM (INCHES) AND TOLERANCES ARE:

0.5 - 6mm

6 - 30mm

30 - 120mm

0.2mm

0.4mm

# 0.6mm

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

DRAWN

C. McGRATH

DATE

2/22/02

TITLE

ENGINEER

REFERENCE

O. BARTHELMES

I:\BNC\ 31-5486-10RFX

2/22/02

2/27/02

EAR# 363

GEN# 31-5431-10RFX_ASSY

APPROVED

CAD FILE

BNC R/A PC

MOUNT RECEPTACLE

JACK

74868

CODE ID

Amphenol Corporation

Communication and Network

Products Division

Danbury, CT U.S.A.

SCALE: 3.0:1

Amphenol

SHEET

06810

2 OF 2

REV

DWG SIZE DRAWING NO.

31-5486-10RFX
