Description
Amphenol 44 series associates easy assembly with
high performance and an inexpensive price. The
easy one piece structure is impervious against water,
fuel, lubricants, ozone, road salt and other environ-
mental impacts. Furthermore the 44 series is vibrati-
on resistant and field proven in rugged applications.
Due to the high quality and the excellent price/perfor-
mance relationship there is a wide range of applicati-
ons for this connector series.
Features
•
•
•
•
•
•
•
•
•
Long time resistance against environmental impacts
3 liquid proof seals (primary, secondary and wire)
Quick and easy assembly
Quick and easy mating
Protection against mismating
Protection class IP65/67
High reliability
Discrete wire interconnection
1,2,3,4,5 and 6 contact configurations available
1 to 6 standard type
2 to 6 low insertation force type
Applications
• Automotive safety and security system connectors
• Traffic control equipment
• Marine industrial connectors
• Truck accessory disconnects
• Mining ventilation systems
• Car interconnections
• RV interconnections

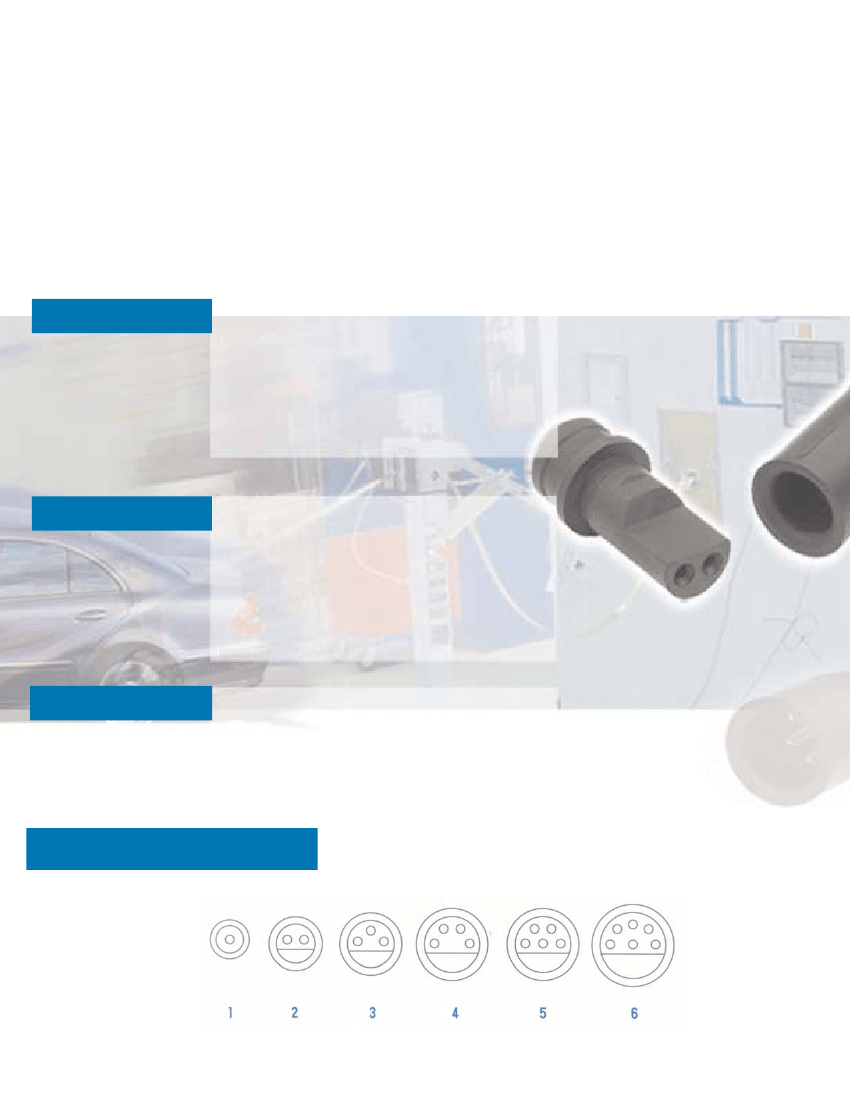

Insert configurations
Remark: For the low insertation force type configuration 4 differs.
Amphenol
44 Series
Technical Characteristics
Rated insulation voltage
Rated impulse withstand voltage
Current carrying capacity
Insulation resistance
Contact resistance
Operating temperature
Wire gauge
Overall wire insulation diameter
Contact Material
Insulation material
Mating cycles
Contact retention
Color
Strain relief
250 V~
1000 V~
8A
> 5000 MΩ
< 30 mΩ
- 40°C to +105°C
AWG 18 – AWG 14 (1,0 mm² - 2,5 mm²)
0.080 to 0.130 inches (2,03 to 3,30 mm)
Tinned copper alloy
Santoprene, thermoplastic rubber
Max. 25
Axial displacement of contact < 0.03 inches (0,762 mm)
Black
For free connectors, the wires have to be prevented
against push-/pull-forces and from rotation at the
connection area.

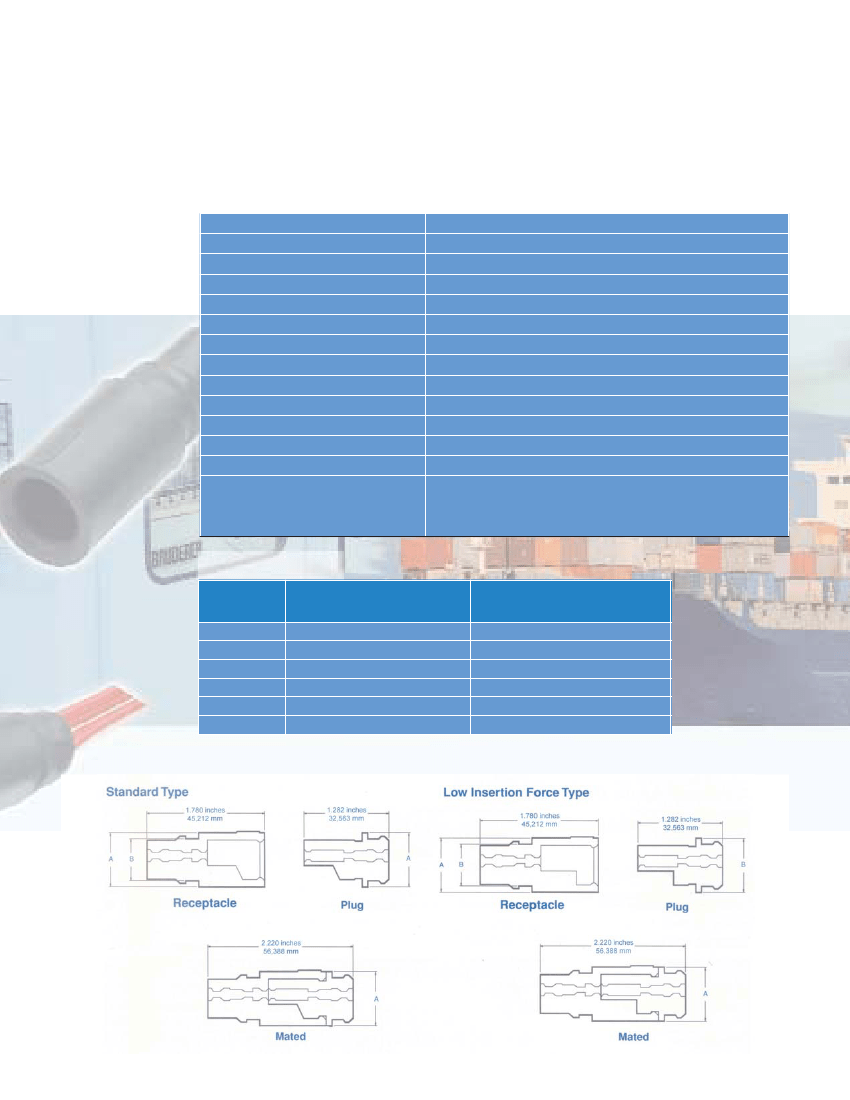

Dimensions
No. of
contacts
1
2
3
4
5
6
0.497
0.607
0.708
0.819
0.819
0.933
inches
inches
inches
inches
inches
inches
A
(12,624
(15,418
(17,983
(20,803
(20,803
(23,698
mm)
mm)
mm)
mm)
mm)
mm)
0.440
0.470
0.570
0.682
0.682
0.796
inches
inches
inches
inches
inches
inches
B
(11,176 mm)
(11,938 mm)
(14,478 mm)
(17,323 mm)
(17,323 mm)
(20,218 mm)

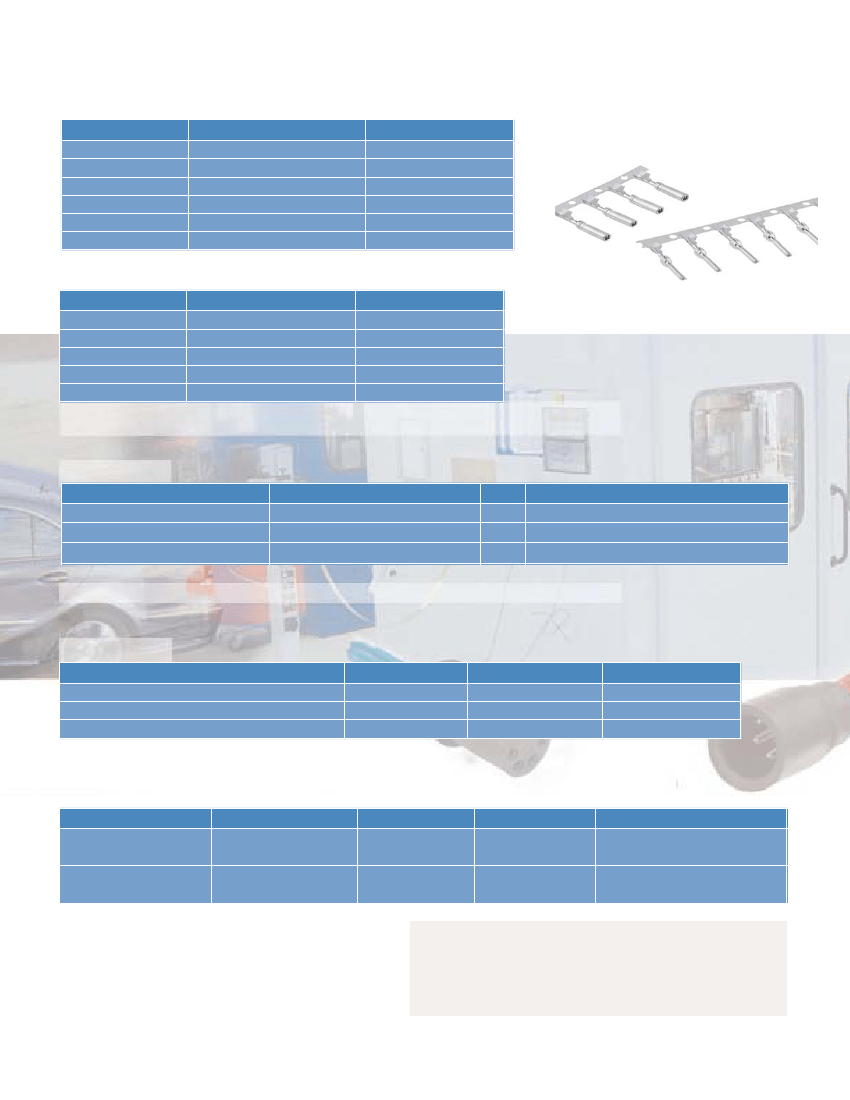

Ordering Information
Standard Type (Insulation only)
No. of contacts Receptacles Part No.
1
2
3
4
5
6
044-104-10001-02
044-104-10002-02
044-104-10003-02
044-104-10004-02
044-104-10005-02
044-104-10006-02
Amphenol
44 Series
Plug Part No.
044-103-10001
044-103-10002
044-103-10003
044-103-10004
044-103-10005
044-103-10006
Low insertion force type (Insulation only)
No. of contacts Receptacles Part No. Plug Part No.
2
044-104-10302
044-103-10302
3
044-104-10303
044-103-10303
4
044-104-10304
044-103-10304
5
044-104-10305
044-103-10305
6
044-104-10306
044-103-10306
Remark: Connector with one contact size is not available in low insertion force type
The standard and low insertion force housings are not intermatable
Contacts
Pin contacts (receptacle)
044-100-1414P-100(101)
044-100-1414P-1000(101)
ZN01 020 0009 7
Socket contacts (plug)
044-102-1414S-100(101)
044-102-1414S-1000(101)
ZN02 020 0009 7
Pcs Remark
100
1000
200
Bag for use with hand crimping tool
Bag for use with hand crimping tool
Reel for use with hand crimping tool
Reels with 2000 and 5000 pcs. for automatic crimping tool on request
Tools
Description
Hand crimping tool without ratchet
Hand crimping tool with ratchet
Hand crimping tool
Automatic crimping tool on request
Part No.
357-561
357-588
FA 0000 114
Crimping dies
-
-
FA 0006 143
Remark
For loose contacts
For loose contacts
For 200 pcs. reel
Hand insertion and removal tools
Description
Pin contact tool
Socket contact tool
Contact part No.
044-100-1414P
ZN01 020 0009 7
044-102-1414S
ZN02 020 0009 7
Insertion tool
356-258
356-258
Removal tool
356-259
356-260
Remark
Use with receptacle only
Use with plugs only
General information
