70
A
Type 094
is modular to
Type
092

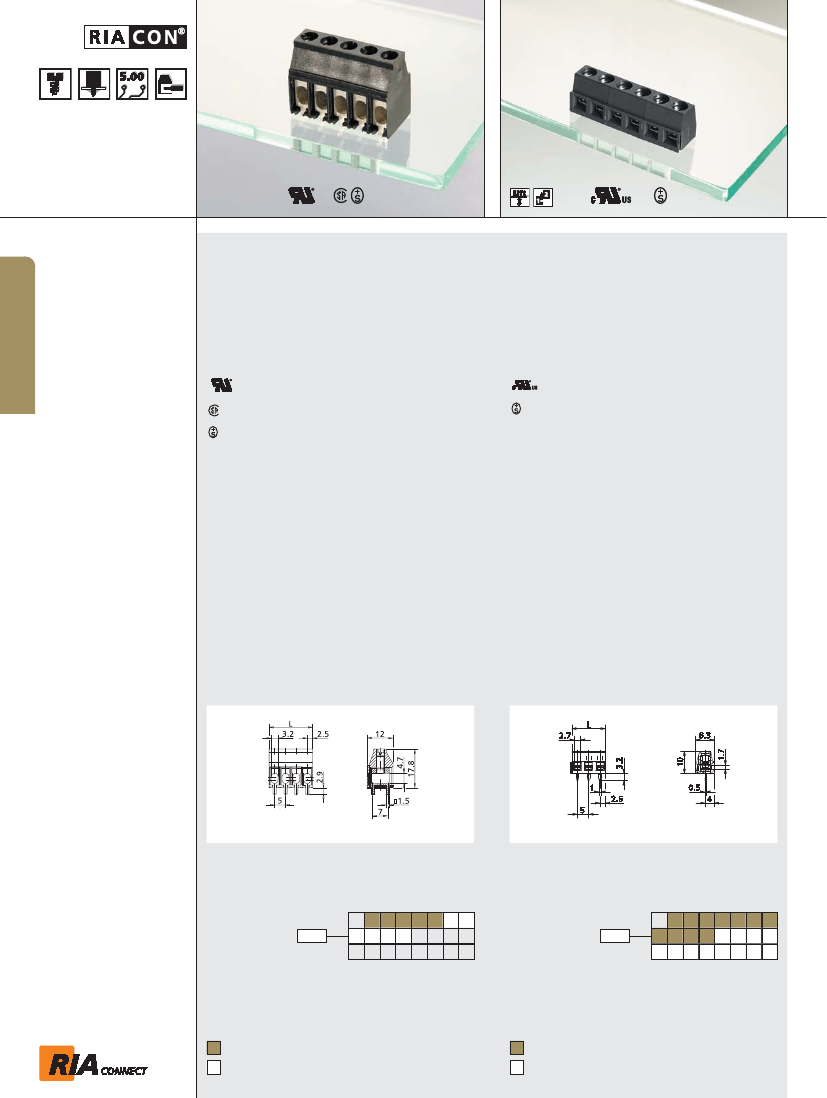

Type 170
Screw type terminal block, solderable, centreline 5 mm /
0.197 inches, horizontal wire entry
Type 094
Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, horizontal wire entry, lift system,
modular
Technical Data
V / A / AWG
V / A / AWG
300 / 20 / 20 - 10
300 / 20 / 20 - 10
Technical Data
V / A / AWG
300 / 10 / 26 - 16
0.12 - 1.5 mm² 250 V / 4 kV / 13.5 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.2 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
630
630
Rated test voltage
2.5
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
6 mm
Solder pin dimension
0.5 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.2 mm
Pole size
2 - 24
Color
black
0.52 - 2.5 mm² 250 V / 4 kV / 16 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.5 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
630
630
Rated test voltage
2.5
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
7.1 lb-in max.
Min. insul. strip length
9.5 mm
Solder pin dimension
1.5 x 1.5 mm
Recommended pc board hole
dia.
Ø 2.4 mm
Solder pin length
2.9 mm
Pole size
2 - 12
Color
black
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
Part numbers (P/N)
Type 170
centerline 5 mm / 0.197 inches
(information: page 56)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 094
(information: page 56)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12
centerline 5 mm / 0.197 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
P/N
311701
P/N
310941
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
