GD54LS26J datasheet, PDF - EEWORLD Datasheet

GD54LS26J: DescriptionNAND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14,; Categorylogic logic; File Size51KB，2 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric Compare View All

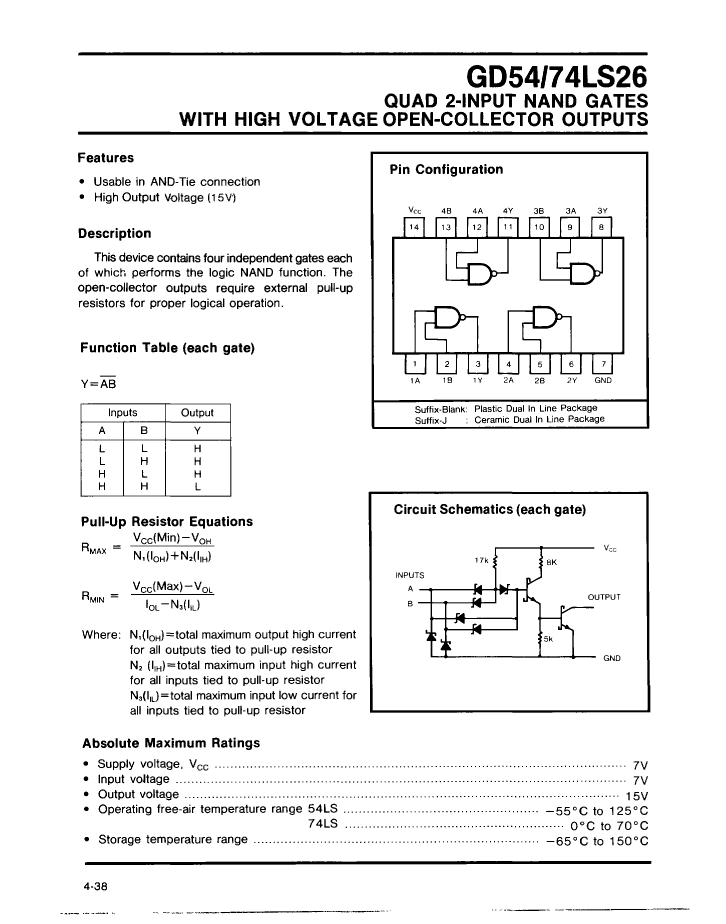

GD54LS26J Overview

NAND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14,

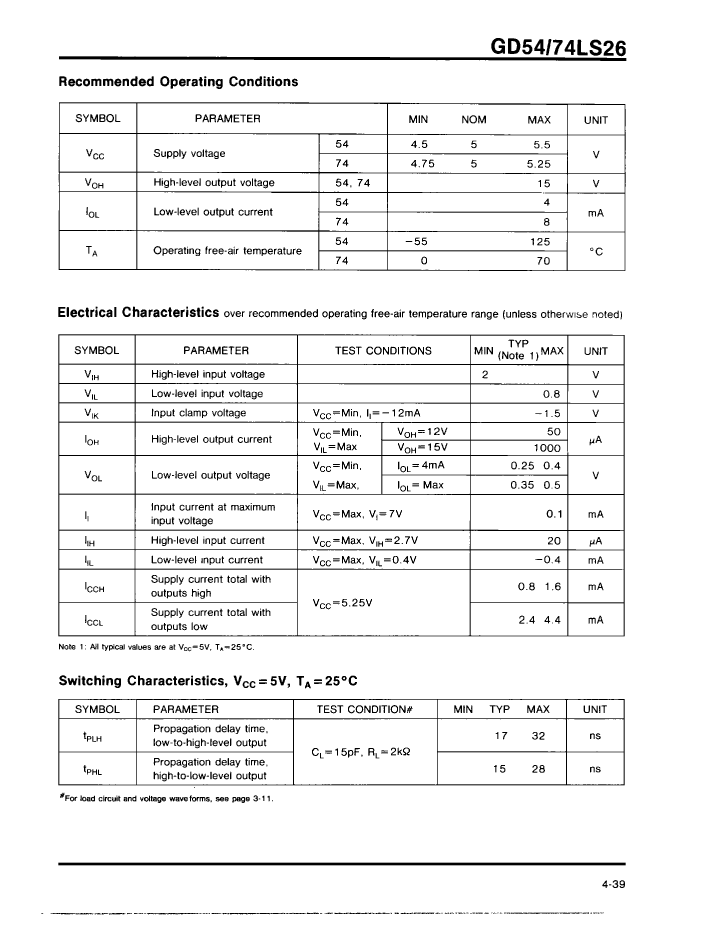

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-CDIP-T14
Load capacitance (CL)	15 pF
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	4.4 mA
propagation delay (tpd)	28 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	GD54LS26J	GD54LS26	GD74LS26J	GD74LS26
Description	NAND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14,	NAND Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14,	NAND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14,	NAND Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14,
Reach Compliance Code	unknown	unknown	unknown	unknown
series	LS	LS	LS	LS
JESD-30 code	R-CDIP-T14	R-PDIP-T14	R-CDIP-T14	R-PDIP-T14
Load capacitance (CL)	15 pF	15 pF	15 pF	15 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE
Number of functions	4	4	4	4
Number of entries	2	2	2	2
Number of terminals	14	14	14	14
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	4.4 mA	4.4 mA	4.4 mA	4.4 mA
propagation delay (tpd)	28 ns	28 ns	28 ns	28 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Maker	-	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.
