3N263TX

Description
Transistor Output Optocoupler, 1-Element, 1000V Isolation,
CategoryLED optoelectronic/LED    photoelectric
File Size136KB,2 Pages
ManufacturerTT Electronics plc
Websitehttp://www.ttelectronics.com/
Download Datasheet Parametric Compare View All

3N263TX Online Shopping

Suppliers Part Number Price MOQ In stock
3N263TX - - View Buy Now

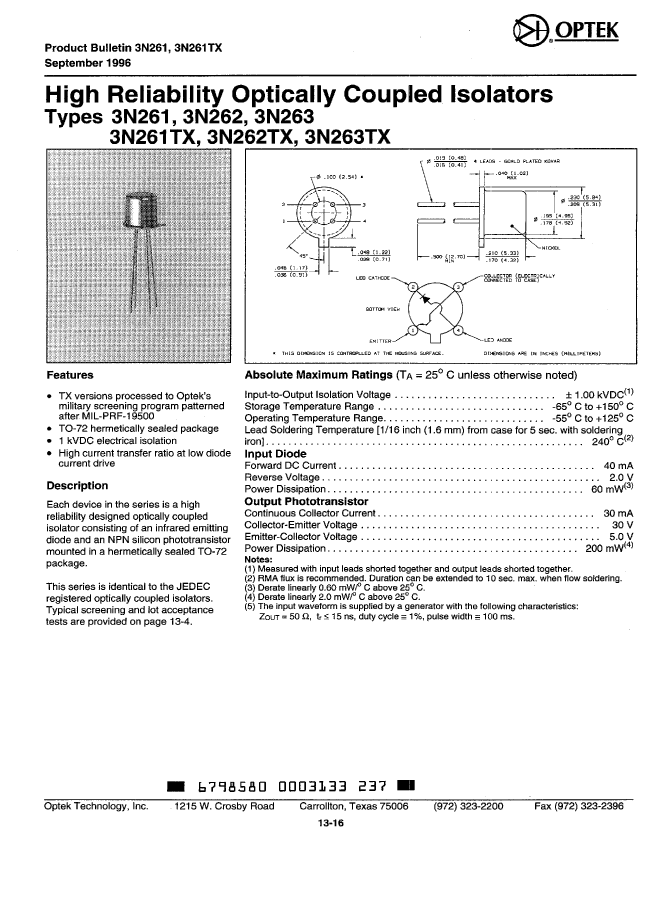

3N263TX Overview

Transistor Output Optocoupler, 1-Element, 1000V Isolation,

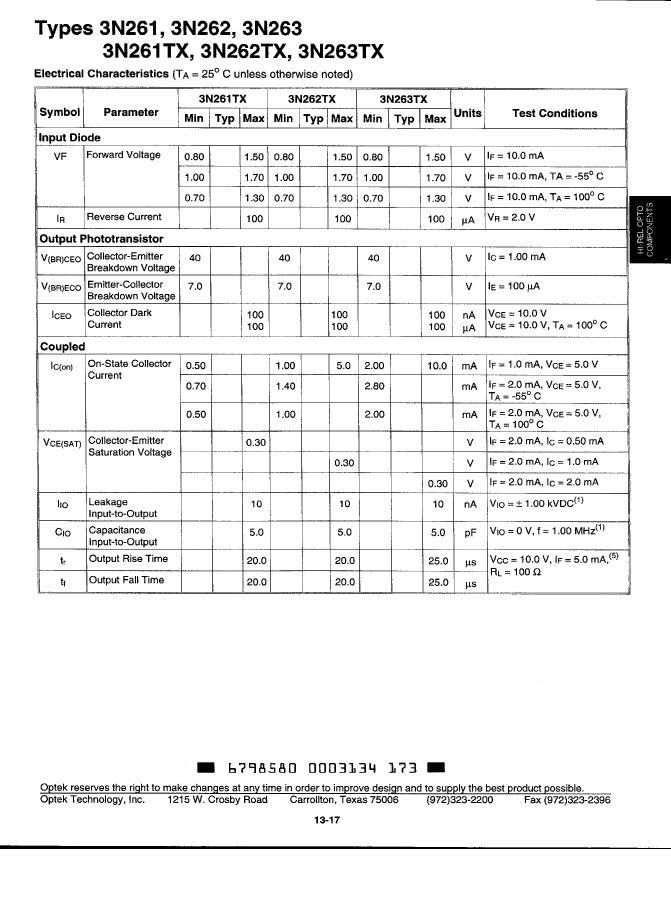

3N263TX Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codecompliant
ECCN code3A001.A.2.C
Other featuresHIGH RELIABILITY
Coll-Emtr Bkdn Voltage-Min40 V
ConfigurationSINGLE
Current transmission ratio - minimum value10%
Nominal current transfer ratio200%
Maximum dark power100 nA
Maximum forward current0.04 A
Maximum forward voltage1.5 V
Maximum insulation voltage1000 V
JESD-609 codee0
Installation featuresTHROUGH HOLE MOUNT
Number of components1
Maximum on-state current0.03 A
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Optoelectronic device typesTRANSISTOR OUTPUT OPTOCOUPLER
Maximum power dissipation0.2 W
Maximum response time0.000025 s
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Base Number Matches1
This Material Copyrighted By Its Respective Manufacturer

3N263TX Related Products

3N263TX 3N261TX
Description Transistor Output Optocoupler, 1-Element, 1000V Isolation, Transistor Output Optocoupler, 1-Element, 1000V Isolation
Is it Rohs certified? incompatible incompatible
Reach Compliance Code compliant compliant
ECCN code 3A001.A.2.C 3A001.A.2.C
Other features HIGH RELIABILITY HIGH RELIABILITY
Coll-Emtr Bkdn Voltage-Min 40 V 40 V
Configuration SINGLE SINGLE
Current transmission ratio - minimum value 10% 10%
Nominal current transfer ratio 200% 50%
Maximum dark power 100 nA 100 nA
Maximum forward current 0.04 A 0.04 A
Maximum forward voltage 1.5 V 1.5 V
Maximum insulation voltage 1000 V 1000 V
JESD-609 code e0 e0
Installation features THROUGH HOLE MOUNT THROUGH HOLE MOUNT
Number of components 1 1
Maximum on-state current 0.03 A 0.03 A
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Optoelectronic device types TRANSISTOR OUTPUT OPTOCOUPLER TRANSISTOR OUTPUT OPTOCOUPLER
Maximum power dissipation 0.2 W 0.2 W
Maximum response time 0.000025 s 0.00002 s
surface mount NO NO
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Base Number Matches 1 1
