3N244R datasheet, PDF - EEWORLD Datasheet

3N244R: DescriptionTransistor Output Optocoupler, 1-Element, 1000V Isolation, HERMETIC SEALED, TO-72, 4 PIN; CategoryLED optoelectronic/LED photoelectric; File Size84KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

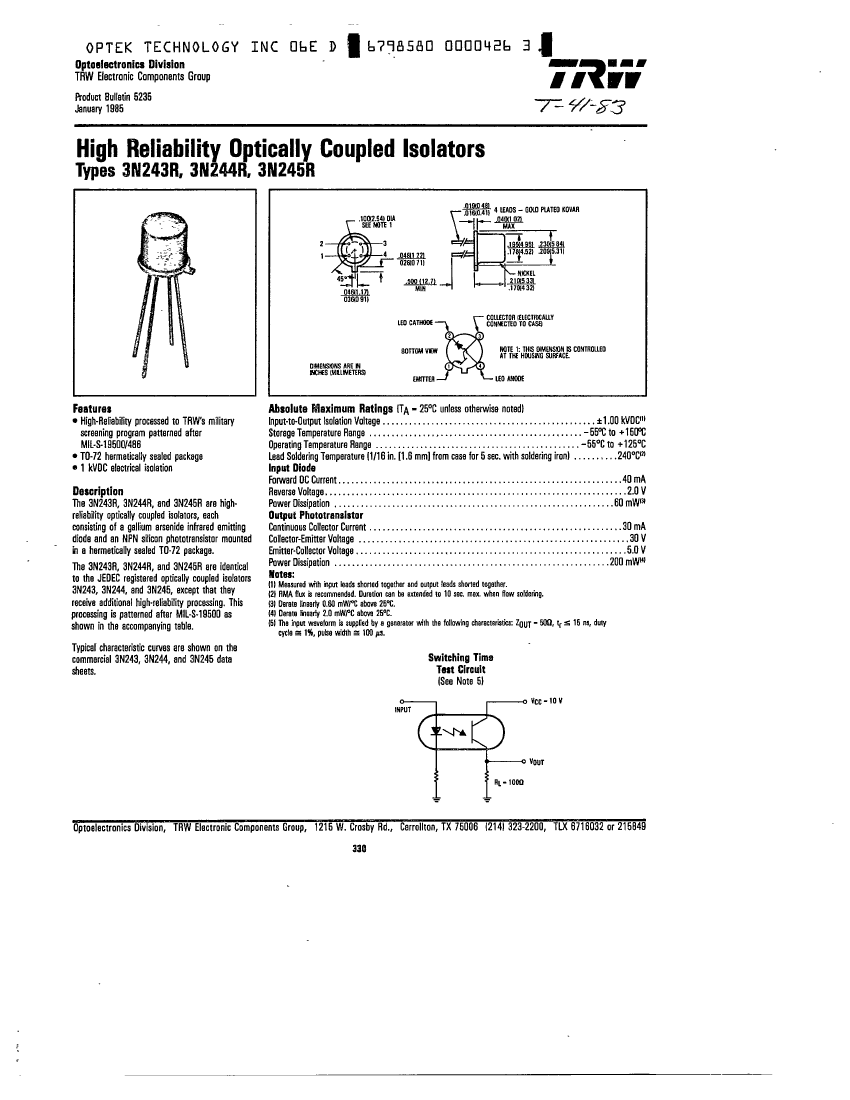

3N244R Overview

Transistor Output Optocoupler, 1-Element, 1000V Isolation, HERMETIC SEALED, TO-72, 4 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	HERMETIC SEALED, TO-72, 4 PIN
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Coll-Emtr Bkdn Voltage-Min	30 V
Configuration	SINGLE
Nominal current transfer ratio	30%
Maximum dark power	100 nA
Maximum forward current	0.04 A
Maximum forward voltage	1.3 V
Maximum insulation voltage	1000 V
JESD-609 code	e0
Installation features	THROUGH HOLE MOUNT
Number of components	1
Maximum on-state current	0.03 A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Maximum power dissipation	0.2 W
Maximum response time	0.00001 s
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

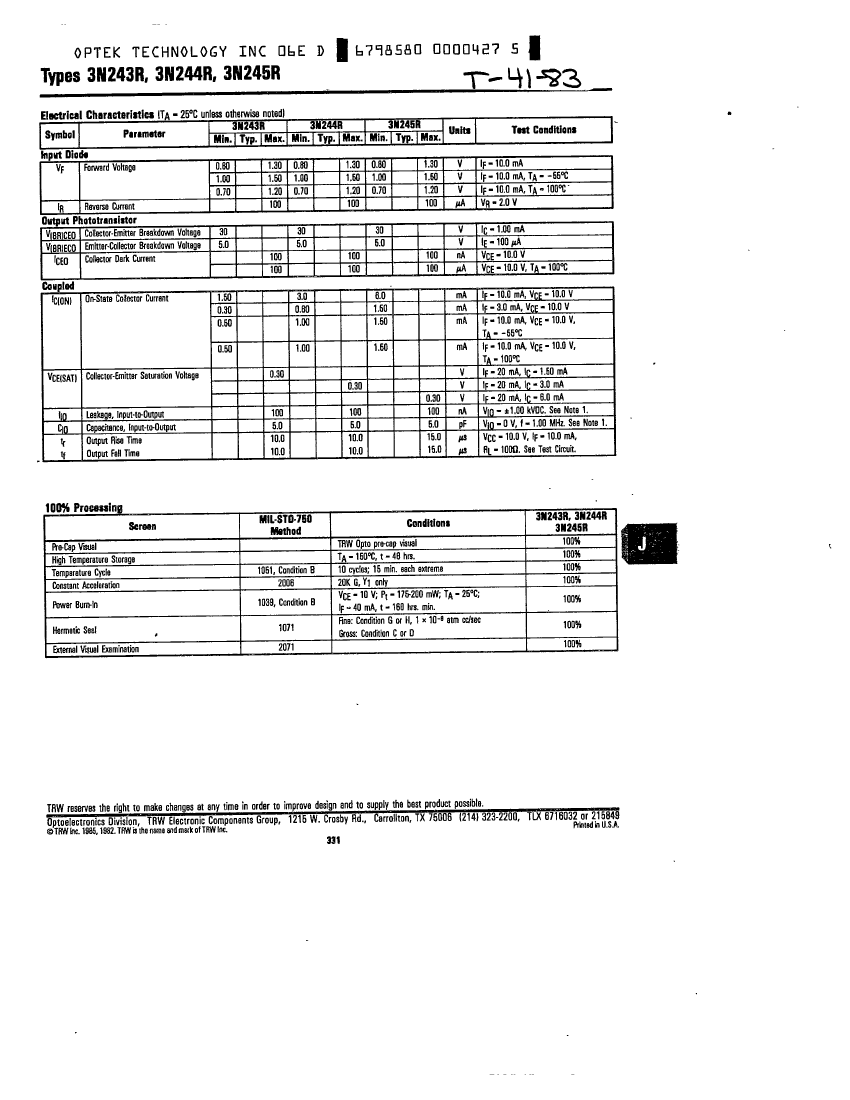

	3N244R	3N243R	3N245R
Description	Transistor Output Optocoupler, 1-Element, 1000V Isolation, HERMETIC SEALED, TO-72, 4 PIN	Transistor Output Optocoupler, 1-Element, 1000V Isolation	Transistor Output Optocoupler, 1-Element, 1000V Isolation
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	unknown	unknow
Maximum forward current	0.04 A	0.04 A	0.04 A
Maximum forward voltage	1.3 V	1.3 V	1.3 V
Maximum insulation voltage	1000 V	1000 V	1000 V
JESD-609 code	e0	e0	e0
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of components	1	1	1
Maximum on-state current	0.03 A	0.03 A	0.03 A
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum power dissipation	0.2 W	0.2 W	0.2 W
Maximum response time	0.00001 s	0.00001 s	0.000015 s
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
ECCN code	3A001.A.2.C	-	3A001.A.2.C
Base Number Matches	1	1	-
