NOTES:
1.
MATERIALS AND FINISHES:
BODY-REAR, FERRULE, RETAINING RING,
WASHER & BAYONET SLEEVE - BRASS, NICKEL PLATING
OUTER CONTACT - BeCu, NICKEL PLATING
CONTACT - PHOSPHOR BRONZE, GOLD PLATING
SPRING - STAINLESS STEEL, PASSIVATED
GASKET - FLURO SILICONE RUBBER, BLACK
INSULATOR & INSULATOR DISC - PTFE, NATURAL
ELECTRICAL:
A. IMPEDANCE: 50 OHM
B. FREQUENCY RANGE : DC - 6 GHz
C. RETURN LOSS: -25 dB MAX. DC - 3 GHz
-20 dB MAX. 3 - 6 GHZ
D. DIELECTRIC WITHSTANDING VOLTAGE: 1000 VRMS, MIN.
E. INSULATION RESISTANCE: 10,000 M ^ MIN
MECHANICAL:
A. DURABILITY: 500 CYCLES MIN.
B. TEMPERATURE RANGE: -65 $ C TO +165 $ C
ENVIRONMENTAL:
A. THERMAL SHOCK PER MIL-STD-202 METHOD 107
TEST CONDITION B (EXCEPT HIGH TEMP @200 $ C)
B. VIBRATION: MIL-STD-202 METHOD 204 TEST CONDITION B
C. SHOCK: MIL-STD-202 METHOD 213 TEST CONDITION B
D. CORROSION: MIL-STD-202 METHOD 101
TEST CONDITION B 5% SALT SOLUTION
5. PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED:
"AMPHENOL RF, 34-5042 DATE CODE"
U.S. PATENT NO. 7,553,177"
6. HIGH DENSITY INSTALLATION/REMOVAL TOOL: 227-T2000.
THIRD ANGLE PROJ.
REV
A
RELEASE TO MANUFACTURING
DESCRIPTION
REVISIONS
08-Oct-18
DATE
09281
ECN
APPR
CJV
2.
7. CABLE ASSEMBLY INSTRUCTIONS:
A. TRIM CABLE AS SHOWN.
B. SLIDE FERRULE ONTO CABLE.
C. SLIDE INSULATOR DISC ONTO CABLE CENTER CONDUCTOR.
D. SOLDER CENTER CONTACT TO CABLE CENTER CONDUCTOR.
E. CRIMP FERRULE WITH .213" HEX.
8. SHOWS CABLE ENTRY DIMENSIONS.
0,62
[.024 ]
DIELECTRIC
STUD LOCATING
AND INSTALLATION/
REMOVAL TOOL GROOVES
8,06
[ .317 ]
BRAID
2,6
[ .102]
CENTER CONDUCTOR
3.
SCALE
2.500
4.
RECOMMENDED CABLE
STRIPPING DIMENSIONS
24,95 REF
[.982 ]
3,1
[.122 ]
8
8
1,1
[.043 ]
8
1
[.039 ]
7,75 REF
[.305 ]
CONTACT
5,6
[.220 ]
8
INTERFACE PER
HD-BNC PLUG
50 OHM
6,8
REF
[.268 ]
4,27 REF
[ .168 ]
TYP(2)
INSULATOR DISC
FERRULE
PROTECTED UNDER U.S. PATENT # 7,553,177
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
ANGLES
6 - 30mm
30 - 120mm

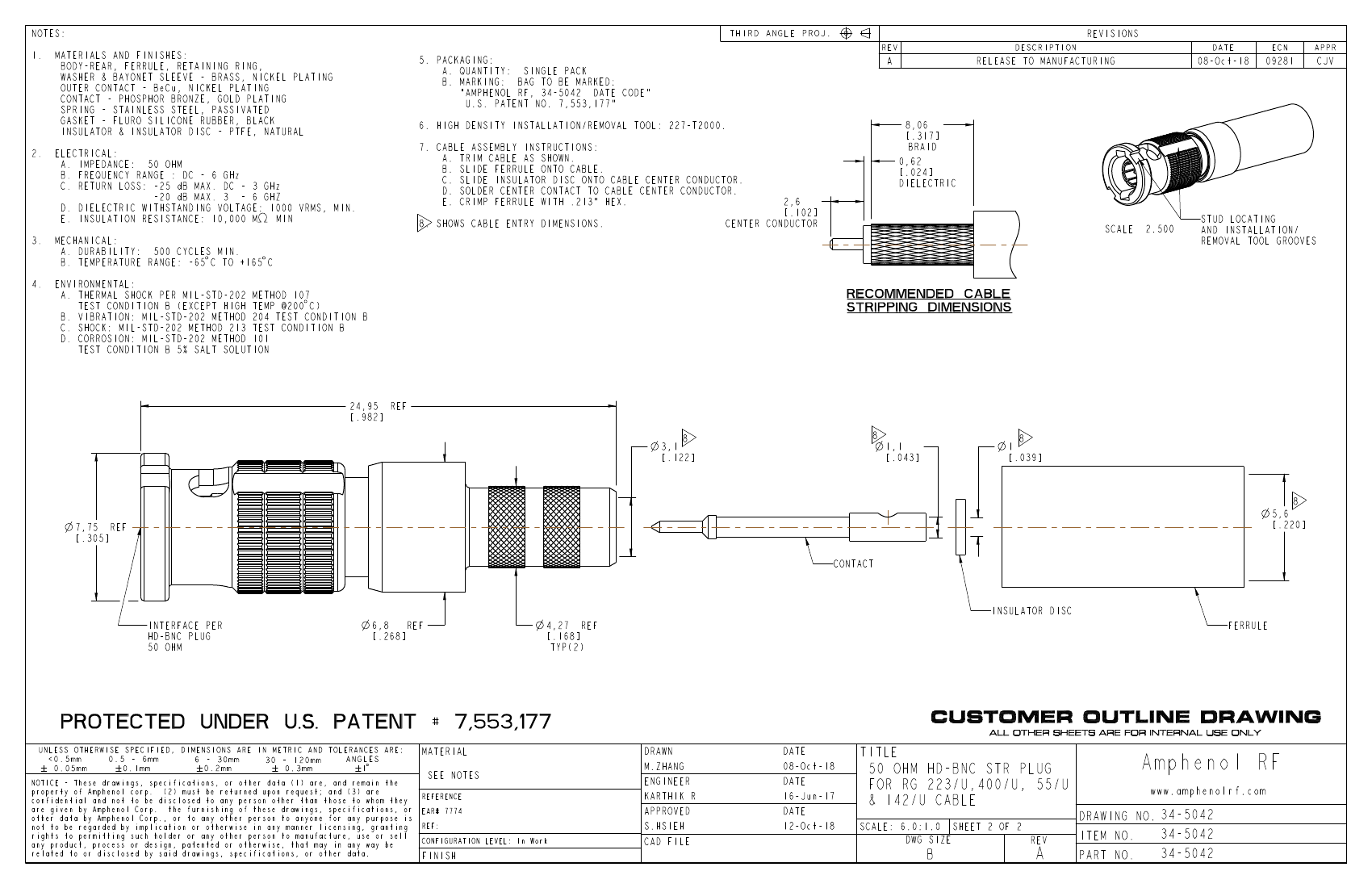

CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
DRAWN
M.ZHANG
DATE
DATE
DATE
ENGINEER
APPROVED
S.HSIEH
CAD FILE
08-Oct-18
16-Jun-17
12-Oct-18
MATERIAL
SEE NOTES
REFERENCE
EAR# 7774
REF:
CONFIGURATION LEVEL: In Work
TITLE
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing, granting
rights to permitting such holder or any other person to manufacture, use or sell
any product, process or design, patented or otherwise, that may in any way be
related to or disclosed by said drawings, specifications, or other data.
KARTHIK R
50 OHM HD-BNC STR PLUG
FOR RG 223/U,400/U, 55/U
& 142/U CABLE
B
Amphenol RF
www.amphenolrf.com
FINISH
SCALE: 6.0:1.0 SHEET 2 OF 2
DWG SIZE
REV
DRAWING NO.
34-5042
ITEM NO.
PART NO.
A
34-5042
34-5042
