54F241/BSA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F241/BSA

54F241/BSA: DescriptionBus Driver, 2-Func, 4-Bit, True Output, TTL, CDFP20,; Categorylogic logic; File Size141KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

54F241/BSA Overview

Bus Driver, 2-Func, 4-Bit, True Output, TTL, CDFP20,

54F241/BSA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DFP, FL20,.3
Reach Compliance Code	unknown
Control type	ENABLE LOW/HIGH
JESD-30 code	R-XDFP-F20
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.048 A
Number of digits	4
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Maximum supply current (ICC)	90 mA
Prop。Delay @ Nom-Sup	7 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

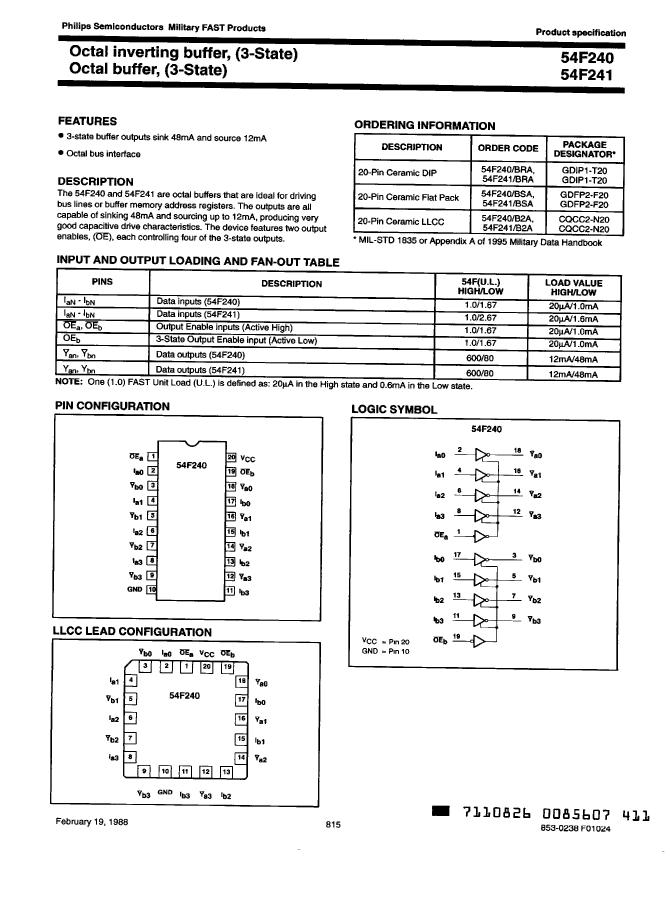

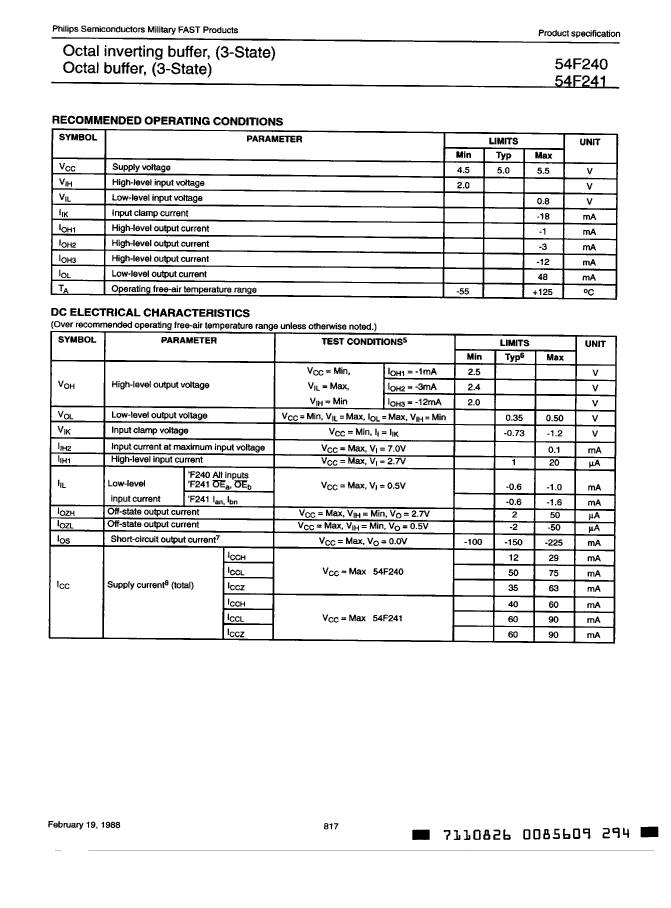

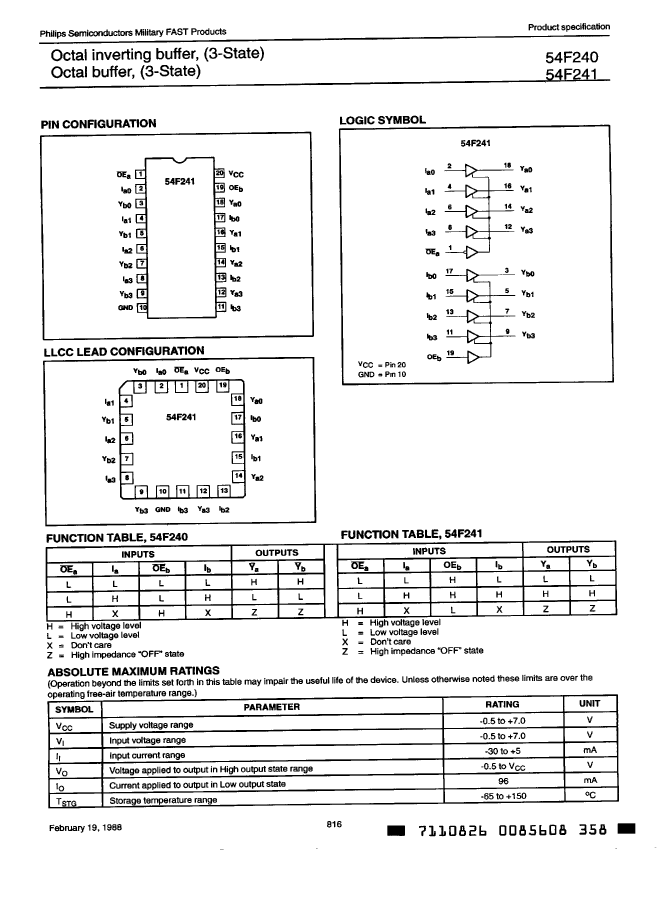

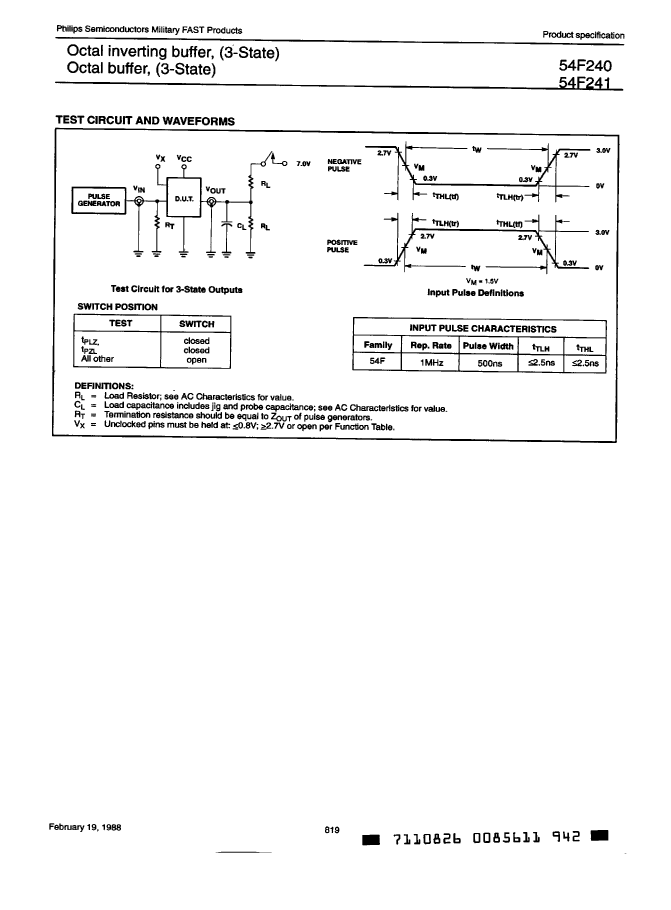

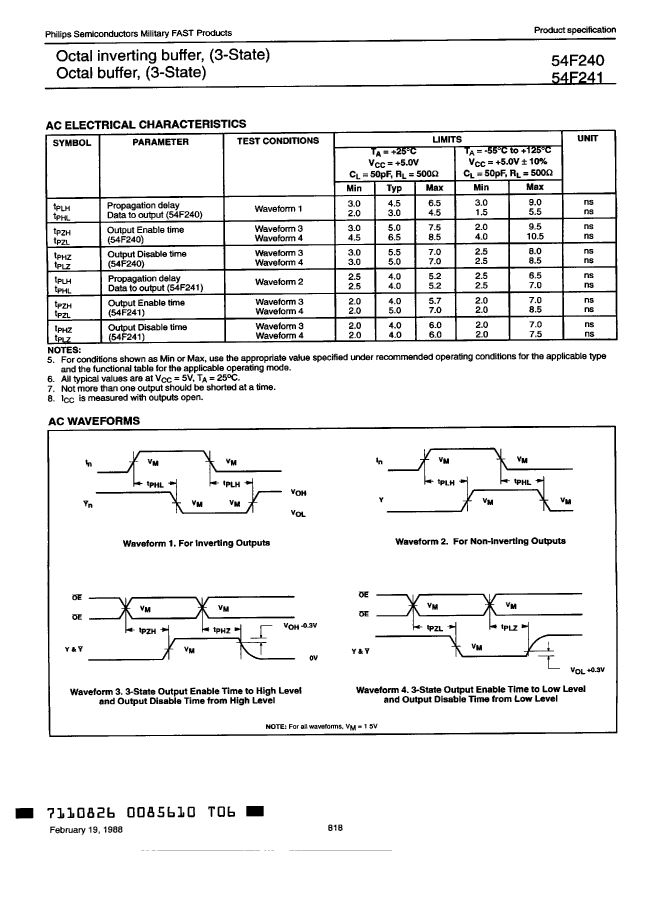

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54F241/BSA Related Products

	54F241/BSA	54F240/B2A	54F240/BRA	54F240/BSA	54F241/BRA	54F241/B2A
Description	Bus Driver, 2-Func, 4-Bit, True Output, TTL, CDFP20,	Bus Driver, 2-Func, 4-Bit, Inverted Output, TTL, CQCC20,	Bus Driver, 2-Func, 4-Bit, Inverted Output, TTL, CDIP20,	Bus Driver, 2-Func, 4-Bit, Inverted Output, TTL, CDFP20,	Bus Driver, 2-Func, 4-Bit, True Output, TTL, CDIP20,	Bus Driver, 2-Func, 4-Bit, True Output, TTL, CQCC20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DFP, FL20,.3	QCCN, LCC20,.35SQ	DIP, DIP20,.3	DFP, FL20,.3	DIP, DIP20,.3	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Control type	ENABLE LOW/HIGH	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW/HIGH	ENABLE LOW/HIGH
JESD-30 code	R-XDFP-F20	S-XQCC-N20	R-XDIP-T20	R-XDFP-F20	R-XDIP-T20	S-XQCC-N20
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.048 A	0.048 A	0.048 A	0.048 A	0.048 A	0.048 A
Number of digits	4	4	4	4	4	4
Number of functions	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	INVERTED	INVERTED	INVERTED	TRUE	TRUE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DFP	QCCN	DIP	DFP	DIP	QCCN
Encapsulate equivalent code	FL20,.3	LCC20,.35SQ	DIP20,.3	FL20,.3	DIP20,.3	LCC20,.35SQ
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	CHIP CARRIER	IN-LINE	FLATPACK	IN-LINE	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	90 mA	75 mA	75 mA	75 mA	90 mA	90 mA
Prop。Delay @ Nom-Sup	7 ns	9 ns	9 ns	9 ns	7 ns	7 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	NO LEAD	THROUGH-HOLE	FLAT	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	QUAD
Base Number Matches	1	1	1	1	1	1
